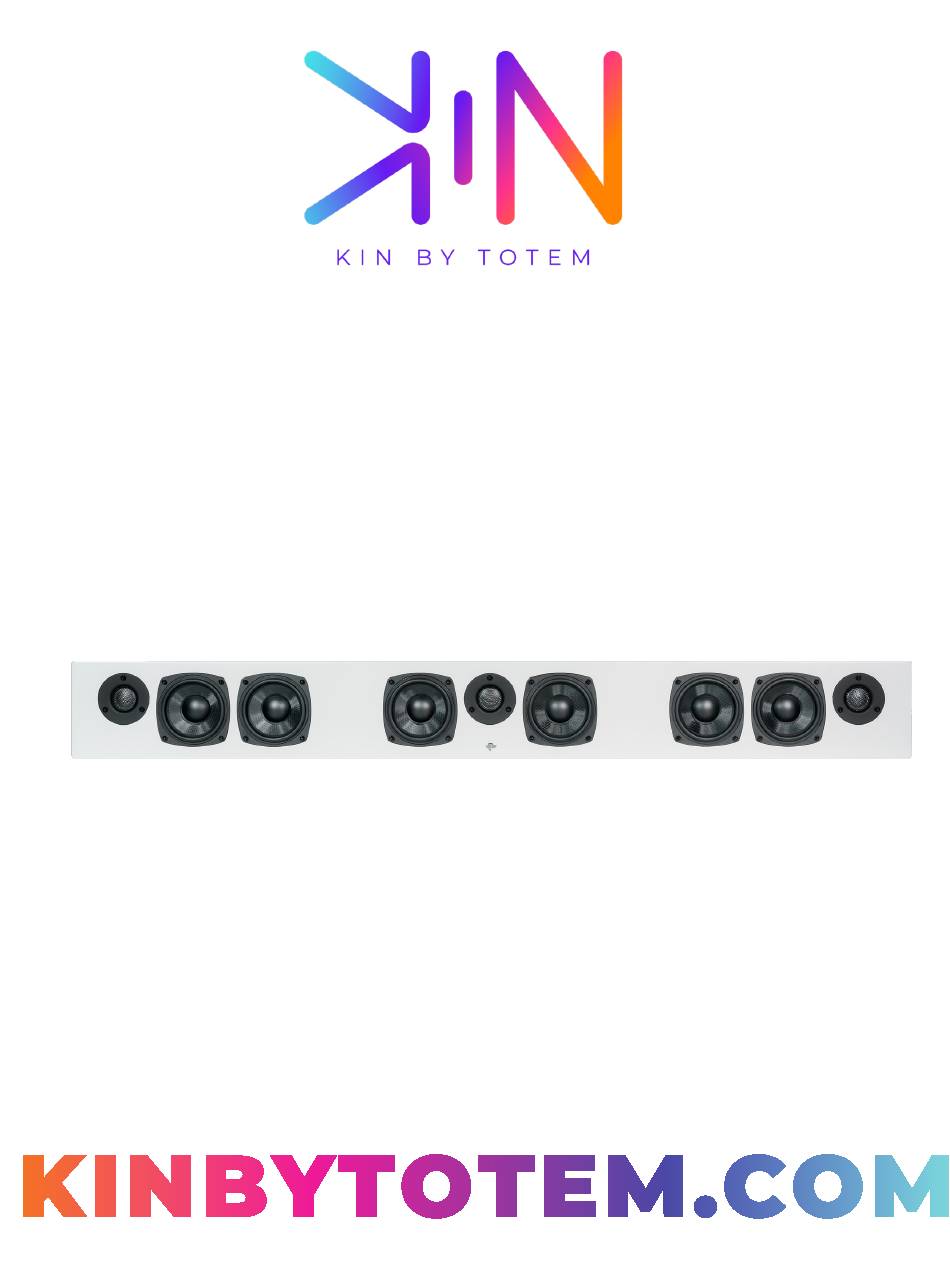

- Page 1 KIN Force OWNERS MANUAL...
- Page 2 DAC w i th bot h a ptx ™ HD Bl u e to ot h a n d ph o n o s ta g e fo r c er tai n mo de ls . Totem’s DN A a b o u n d s t h ro u g h o u t K I N , a l l owi n g fo r ea se o f pl acem en t w h i l e provi d i n g a li fe l i ke s o n ic exp e r ie n c e in any a ppl i ca t io n , be i t fo r mu si c , movi e s o r g a m i n g , e tc .
- Page 3 DISCOVER KIN FORCE ... De si g n ed by Totem Acoust ic in Montreal, Cana da, th e KIN FO R CE wa s c reate d to provid e a s imple yet remarkable au d i o s olut i on . Th e a r t istic vision of th e interior desig n e r an d th e f ire of t h e passiona te m usic lover coalesce in th e K IN Fo rce.
- Page 4 KIN FORCE...
- Page 5 Restriction of Hazardous Substances (RoHS) and CARB certification. UNPACKING Totem Acoustic keeps to a strict quality control regimen and all factory- sealed products leave our facility in perfect condition. If there are any damages visible or concealed that has occurred in handling it must be reported immediately to your Authorized Totem Dealer.
- Page 6 SPEAKER POSITIONING AND PLACEMENT The KIN FORCE soundbar has great dispersion. It can be placed in extremely varied positions and still produce a large and accommodating, non-shifting soundstage. KIN Force can be wall mounted above or below a TV, placed on a mantel, or on lowboy and still produce a large and accommodating, non-shifting soundstage.
- Page 7 When the KIN Force is placed below the screen, the tweeters should be justified towards the top of the cabinet. See FIG. 1 When the KIN Force is placed above the screen, the tweeters should be justified towards the bottom of the cabinet. See FIG. 2 FIG.
- Page 8 WALL MOUNTING The KIN Force can be wall mounted horizontally with the supplied bracket and hardware. The flat surface of the bracket faces the wall, and the bolt protrusions face the speaker. 1. Affix the SIX rubber feet to the back and middle corners of the speakers.
- Page 9 TRESS CABLE Speaker cable is an important element of the overall system performance so ask your dealer about Totem Tress cable. Tress is a twisted pair of 14-gauge, multi stand, linearized oxygen-free silver-plated conductors coated in black and white Teflon. Dielectric shielding makes it impervious to damage and oxidization.
- Page 10 OUR THOUGHTS ON GRILLS The KIN SOUNDBAR SPEAKER comes equipped with a magnetically attaching grill included in the box. This is a departure from our original practise as for years we did not include grills and only made them available as an optional accessory. Our intense listening sessions are conducted without a grille and we believe yours should as well.
- Page 11 VOLUME All connections should be made with the equipment turned off. Volume controls on the amplifier/ receiver/preamplifier are very misleading. Please note that the volume control does not address power-output, but simply adjusts the audible level of music. It is the type of music being played that has an incidence on the amount of power used at a given volume level.
- Page 12 KI N FORCE Specif ication s Design: Three Channel On-Wall LCR Tweeter: 3 x 1” Titanium Infused Soft Dome Woofer: 6 x 4” MHEX Power Handling: 20-125w RMS Frequency response: 57Hz – 21kHz Impedance: 6 ohms Sensitivity: 90dB Dimensions (WxHxD) : 5 ½...
- Page 13 Keep your original bill or receipt obtained from your Totem Authorized Dealer. All Totem products are created with the utmost care and quality in mind. If ever a problem should arise, Totem’s speakers are covered by a two (2) year limited warranty on the amplifier and 5 years on the drivers, starting from the date of purchase.
