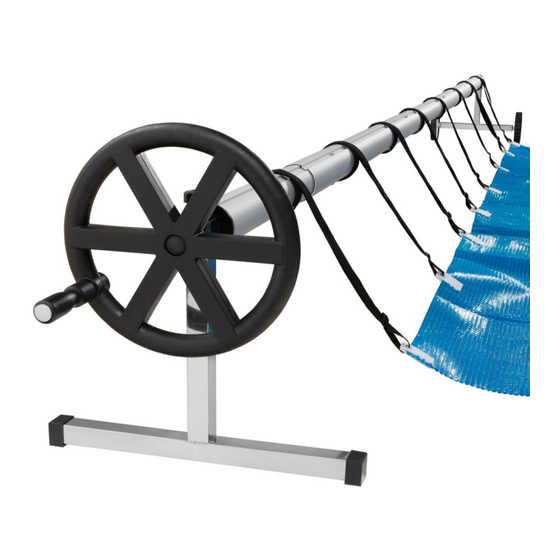

- Page 1 Original User Manual – A S Pool Reel 3m – 5.7m REBO Pool Reel 3m – 5.7m AR-HE-PA357 Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
- Page 2 Original User Manual – A S Pool Reel 3m – 5.7m REBO List of Contents 1. Safety instructions ......3 1.1 Explanation of symbols ......... 3 1.2. Safety instructions ..........3 2. Technical Specifications ....3 3. Parts List ........4 4.
- Page 3 The cover should be rolled up by a responsible (authorized) adult. • Do not put your hand in the pool cover reel. 2. Technical Specifications Model AR-HE-PA357 Length 9.84 ft up to 16.4 ft (3 – 5.70 m) Diameter tube 2.95/3.15 in (75/80 mm) Material thickness tube 0.0551 in (1.4 mm)
- Page 4 Original User Manual – A S Pool Reel 3m – 5.7m REBO 3. Parts List Number Designation Quantity Threaded knob Frame Frame Crank wheel Shaft Handle Wheels Grip Long hub Short hub Self tapping screw Flat headed screw Screw and nut (short) Screw and nut (long) Wheel lock washer Lock cap...
- Page 5 Original User Manual – A S Pool Reel 3m – 5.7m REBO Small parts bag Attachment kit Tube A Tube B Tube A Tube B Tube A...
- Page 6 Original User Manual – A S Pool Reel 3m – 5.7m REBO 4. Assembly 1. Align the groove of the short hub "10" with pre-drilled holes on the tube A, and insert them into one end of tube A. Secure the assembly with two self-tapping screws "11". Repeat the operation by placing the long hub "9"...
- Page 7 Original User Manual – A S Pool Reel 3m – 5.7m REBO Knoch the retaining ring with a hammer and the supplied tool onto the wheel carrier. Then the black cover cap has to be put on.
- Page 8 Original User Manual – A S Pool Reel 3m – 5.7m REBO 3. Insert the shaft "5" to the bigger hole of handle "6", and then through the hole of the crank wheel "4". Put the lock cap "17" on the top of the shaft "5". Cover the lock cap by the jig "18". Hold the whole assembly securely and use a hammer (not included) to hammer the dig "18".
- Page 9 Original User Manual – A S Pool Reel 3m – 5.7m REBO 4. Assemble the short hub "10" on the frame "3" without wheels and slide the crank wheel "4" with handle onto the hub handle. Secure the assembly with the long screw and nut "14". With the threaded knob "1"...
- Page 10 Original User Manual – A S Pool Reel 3m – 5.7m REBO 5. Measure the longest width of your pool (from the inside edge) =X Insert the tube A into the tube B, and slide them until you have the required size Y. Ensure that the tube B is exactly centered so that Z1 and Z2 are equal.
- Page 11 Original User Manual – A S Pool Reel 3m – 5.7m REBO 7. Detach the eight male velcro stickers "21" from the straps "20". Peel off the protective layer and glue them on the tubes in a straight line at equal distance over the length X as shown. The straps are required to be placed at least 11.8 in (30 cm) away from the both tube ends for security.
- Page 12 Original User Manual – A S Pool Reel 3m – 5.7m REBO 9. For round or oval shaped above ground pools Open cover over the pool and pinch it as shown in the picture. Attach "23" on the cover, keeping the same regular intervals as the male velcro stickers on the tubes. Ensure that the length of the straps allows the cover to lay flat on the pool, to prevent wind from getting under the cover.
- Page 13 Original User Manual – A S Pool Reel 3m – 5.7m REBO 10. Fasten the three screws "12" in the pre-drilled holes at each side of the tube B to secure the assembly. Example short version: 30cm Pool...
- Page 14 Our customer service number: Tel. +44 (0) 208 068 5604 Fax: +49 (0) 931 4523 2799 / E-Mail: info@arebos.de Office address: Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/...
- Page 15 Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
