Summary of Contents for Tarm BLAZE

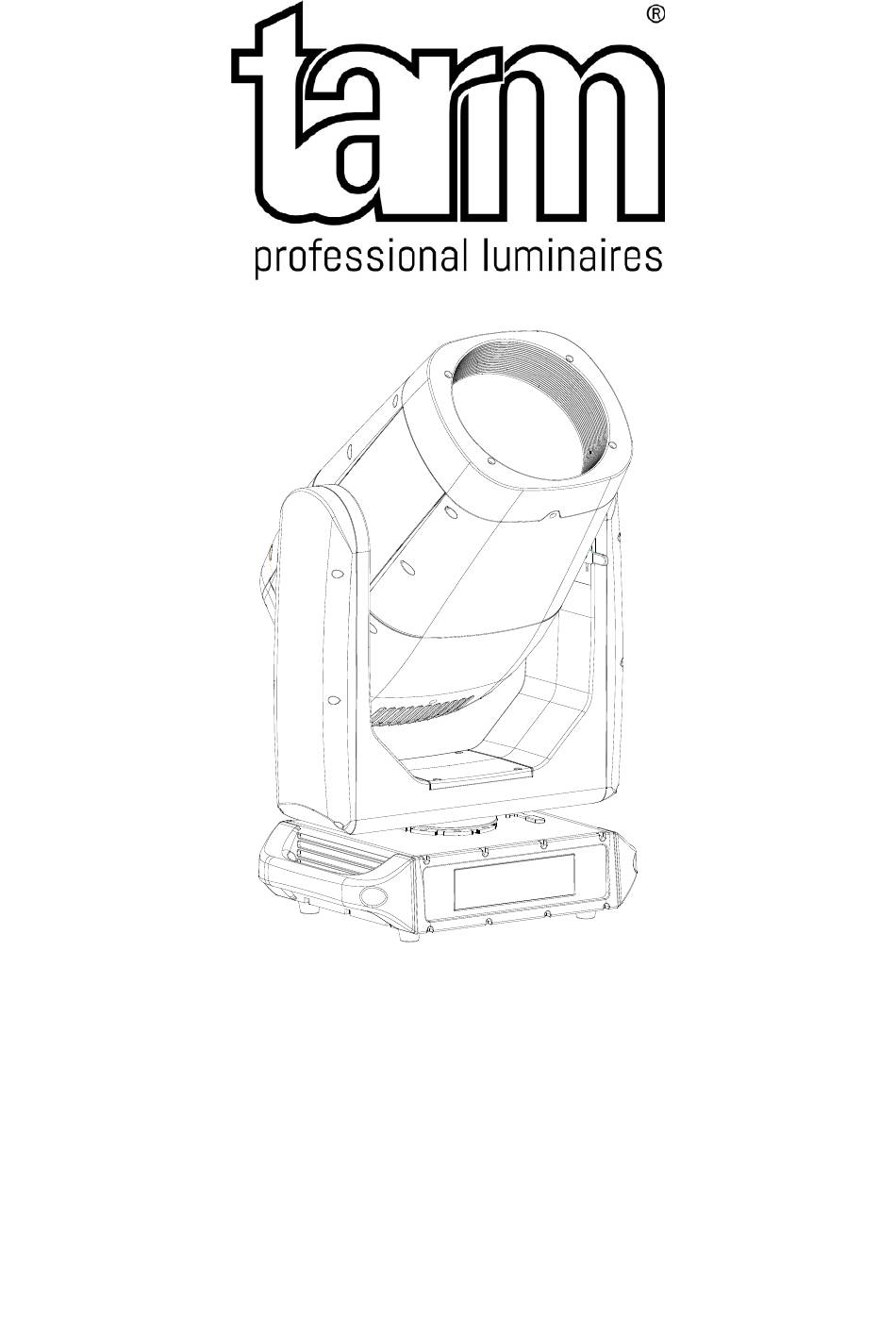

- Page 1 BLAZE User Manual Version 09-2024...
- Page 2 BLAZE - User Manual Overview GETTING STARTED BOX CONTENTS INFORMATION ON WATERPROOF LUMINAIRE SAFETY INSTRUCTIONS - GENERAL SAFETY SAFETY INSTRUCTIONS - HANDLING THE FIXTURE TRANSPORTATION INSTALLATION 7.1. RIGGING 7.2. REPLACING THE FUSE 7.3. POWER CONNECTION SETTINGS 8.1. DISPLAY CONTROL 8.2.
- Page 3 1 x PU foam as inlay for your custom flightcase (flightcase not included) INFORMATION ON WATERPROOF LUMINAIRE The tarm BLAZE luminaire is an IP66 rated, waterproof device. It is protected against dust and water ingress. Thus any maintenance or service work that incorporates the opening of the device requires additional procedures to ensure the waterproofness after the maintenance or service work.
- Page 4 BLAZE - User Manual with the fixture. Any alterations to the fixture or its mounting hardware will void the manufac- turer’s warranty and elevate the risk of damage or personal injury. All local requirements for safe rigging and mounting of lighting fixtures must be observed.
- Page 5 BLAZE - User Manual • Sensitive persons may suffer epileptic shock! • All unused connectors and caps must be sealed with appropriate dielectric grease to pre- vent corrosion of connectors. This device has been tested and found to comply with the limits for a Class A digi- tal device, pursuant to Part 15 of the FCC Rules.
- Page 6 BLAZE - User Manual • Do not install a fuse that has a higher rating than the one originally installed in the pro- duct. • Do not bypass fuses. • Do not stick filters, masks or other materials onto optical components.
- Page 7 BLAZE - User Manual INSTALLATION 7.1. Rigging • Always install a safety cable in case of overhead use of the device. Follow local require- ments regarding durability, length and design of the cable. • Secure the fixture with a safety cable through the rear safety eye and truss as shown.
- Page 8 100V - 240V AC, 50/60 Hz. Never connect this product to a dimmer! You may use the PowerCon TRU1 outlet for power connection of further tarm BLAZE fixtures. Depending on mains voltage, the maximum quantity of connected fixtures shall not exceed 15 devices (for 230V AC operating) and max 8 devices (for 100V AC operating).
- Page 9 BLAZE - User Manual SETTINGS 8.1. Display Control 5. LEFT (Menu) - Use to access the menu or to return a previous menu option 6. RIGHT (Enter) - Use to select and store the current selection or confirm the current func- tion value or option 7.
- Page 10 BLAZE - User Manual 8.2. Menu Layout 001 - 512 ADDRESS Set the DMX address of the fixture BASIC 19 DMX channel operation PERSON STANDARD 23 DMX channel operation EXTEND 27 DMX channel operation DMX512 Operation mode set to DMX 512...
- Page 11 BLAZE - User Manual 0-255 TILT 0-255 PT SPEED 0-255 CMY_C 0-255 CMY_M 0-255 CMY_Y 0-255 COLOR 0-255 ROTA.GOBO 0-255 GOBO.ROTA 0-255 Allows for editing the Custom 1 and Custom 2 EDIT EDIT 1-2 STEP 1-30 settings (basic stand alone scene)
- Page 12 BLAZE - User Manual ±127 ±127 TILT CMY-C ±127 ±127 CMY-M CMY-Y ±127 COLOR ±127 SERVICE **** ±127 ROTA. GOBO ±127 GOBO.ROTA FIXED GOBO ±127 ±127 PRISM 1 ±127 PRISM 2 FROST ±127 ±127 FOCUS Allows for firmware updates. Instructions for...
- Page 13 BLAZE - User Manual DMX-CHART - CONTROLS This is the DMX chart, highlighting the different DMX modes (corresponding to the PERSON settings in the menu): BASIC STANDARD EXTENDED Value Function (19CH) (23CH) (27CH) 0-255 Pan 0 - 540° 0-255...
- Page 14 Color wheel rainbow effect (speed 1% -> 100%) counter-clockwise 0-255 Color wheel fine ROTATING GOBO 6+1 0-10 White / Open 11-19 Rotating GOBO 1 - Sun Blaze 20-28 Rotating GOBO 2 - Ocean Waves 29-37 Rotating GOBO 3 - Cotton Cluster 38-46 Rotating GOBO 4 - Honeycomb...
- Page 15 BLAZE - User Manual BASIC STANDARD EXTENDED Value Function (19CH) (23CH) (27CH) 68-70 Fixed GOBO 1 shake (speed 1% -> 100%) 71-73 Fixed GOBO 2 shake (speed 1% -> 100%) 74-76 Fixed GOBO 3 shake (speed 1% -> 100%) 77-79 Fixed GOBO 4 shake (speed 1% ->...
- Page 16 BLAZE - User Manual BASIC STANDARD EXTENDED Value Function (19CH) (23CH) (27CH) STROBE Inactive / No strobe 10-99 Strobe, increasing speed from slow to fast 100-109 Inactive 110-179 Lightning Strobe 180-189 Inactive 190-255 Random Strobe CONTROL（commands effective after 3 seconds）...
- Page 17 BLAZE - User Manual 11. COLORS 11.1. Color Wheel 1 . M Red 2. B Red 3 . M Red X 4. Orange 5. DS Amber ~ E787 ~ E026 ~ G250 ~ E105 ~ E015 6. D Amber 7.
- Page 18 BLAZE - User Manual 12. GOBOS 12.1. Static Gobos, with Gobo Shake 1 . Vertical Line 2. Horizontal Line 3 . Dot Square 4. Circle 5. Radioactive 7. Yellow ~ Rosco E101 6. Square 7. Wave 8. Three Lines 9.
- Page 19 BLAZE - User Manual 12.2. Rotating Gobos, Effects 1 . Sun Blaze 2. Ocean Waves 3 . Cotton Cluster 4. Honeycomb 5. Grid 6. Drops 13. PRISMS This product is equipped with two prism units, which are stackable, so they can be overlayed with each other and with frost.
- Page 20 BLAZE - User Manual 15. DIMENSIONS Dimensions given in millimeters. page 20 of 23...
- Page 21 BLAZE - User Manual 16. FLIGHTCASE INLAY - HIGH DENSITY PU FOAM SHELL This product comes standard in a high density PU foam shell, it is part of the packaging you received the product in. This PU foam is designed to fit in custom flightcases to protect the product (flightcase inlay).
- Page 22 BLAZE - User Manual TECHNICAL DATASHEET Product: tarm BLAZE Optical System Light source 100 W White Laser Engine Lens diameter 180 mm Angle 0.7 - 5° 220‘000 lx @ 20m, 0.7° Illuminance Luminous flux ≥ 3000 lm > 65...
- Page 23 44625 Herne Germany © tarm AG 2024 - All rights reserved. The images, specifications, information, charts, and inst- ructions contained in this document are subject to change without notice. The tarm logo and any product names and numbers mentioned herein are trademarks of tarm AG or other com- panies of the Laserworld Group.
