Summary of Contents for camius Scout4K4XPTZ

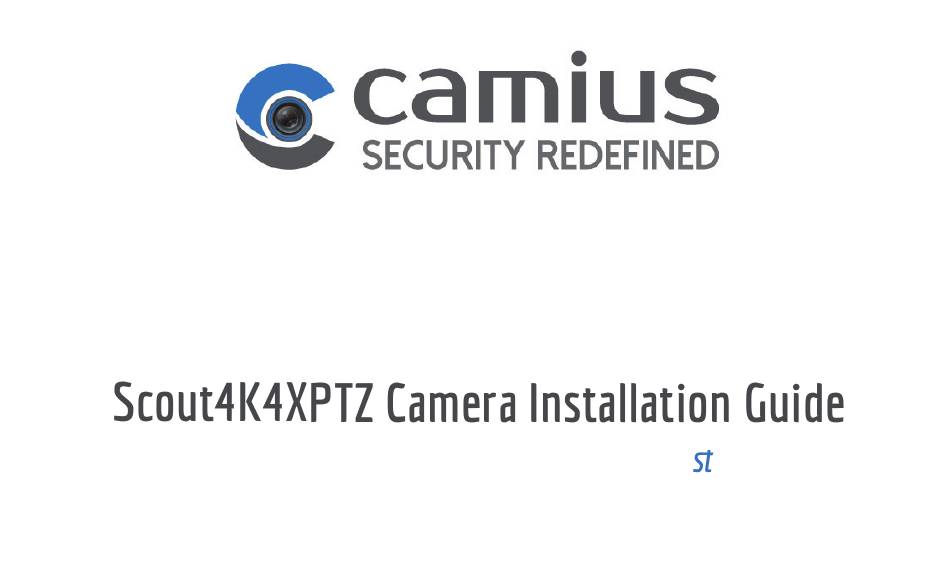

- Page 1 Available on camius.com/download/Scout4K4XPTZ-in allation-guide...
- Page 2 Modifications made to the Camius device n approved expressly by the party responsible for compliance could void the warranty. Visit camius.com/warranty for warranty terms. Tip: Use your camera directly with a Camius PoE NVR to make the most out of its plug-and-play features.
- Page 3 Installation Wall Wall mount instructions: Mounting template 1- Start by placing the included mounting template on the wall, and drill four screw holes in addition to the cable hole, remove the template sticker once done. Tip: We recommend placing the camera under a so t to pr ect it from e reme weather.
- Page 4 Wall mount instructions - continued. 3- Align the screw holes on the camera with the ones on the wall, Insert the included screws and tighten. Since this camera has built-in Power- over-Ethernet support, you’ll only need one ethernet cable between the camera and the NVR, PoE switch, or PoE injector.

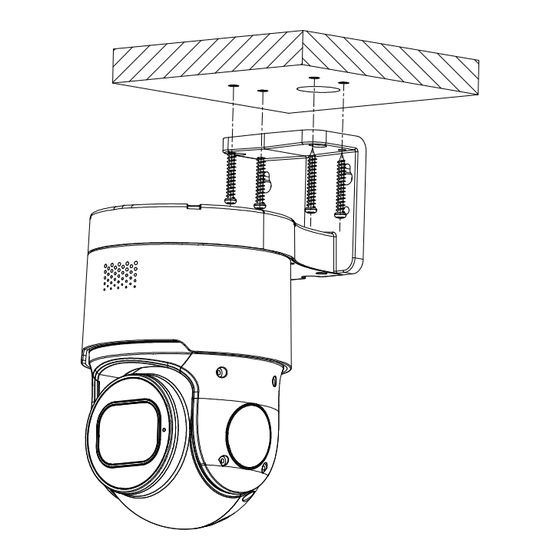

- Page 5 Ceiling mount instructions 1- Place the included mounting template on the ceiling, and drill 4 screw holes in addition to the cable hole, remove the template sticker once done. 2- Insert anchors into the screw holes, use a hammer to drive them all the way.
- Page 6 Ceiling mount instructions - continued. 3- Align the screw holes on the camera with the ones on the ceiling, Insert the included screws and tighten. You can run the cable up through the track on the back of the bracket.
- Page 7 Installation - Weatherproof RJ45 pr ector. Please use the included weatherproof RJ-45 pr ector for e ended pr ection. Step 2 Step 5 Attach the Cover the DC Step 4 rubber washer. plug if unused. Attach the camera cable Step 1 and tighten all the parts.
- Page 8 Connection Diagram PoE Switch or Injector Router Camera Smartphone Camius View or tablet Internet VMS So ware Windows or Mac Web browser Camius PoE NVR Computer Camera Router...
- Page 9 3- Adding your camera directly on the Camius View App To access your camera directly without a recorder, you can add it to the Camius View App for smartphones and tablets. The camera can be powered up using a PoE switch, PoE Injector, or a 12VDC-2A power supply per the connection diagram on the previous page.
- Page 10 Visit https://www.camius.com/download/device-config-tool/ to download the Device Config tool and install it on your Windows PC or Mac. Camius cameras connected to the local network will appear when you click Search. Click on the IP address to open the camera in your default browser.
- Page 11 Alternatively, you can scan the camera QR Code, or add the details manually. Download the Camius View app on your smartphone or tab from the iOS or Android app store. To access rem ely, verify that the P2P ID is filled instead of the local IP address.
- Page 12 Viewing resolution If you haven’t previously created a password, you Tap the resolution icon will get this message: (First login, please modify the switch between the three video quality password). settings: HD is the highest, try Clear or Tap on the edit icon to the right of this message to Fuent in case you have a slow or metered add a new password twice.
- Page 13 Activating Lights and Siren PTZ Controls (Pan, Tilt, and Zoom) Manually tap the lights icon or the Siren With camera actions on, tap the PTZ icon icon on and off. To pan or tilt in any direction, tap and hold on an arrow.
- Page 14 Mobilestream, you can follow the same Audio levels are set to medium by default, to change steps on the NVR, web browser, and VMS it on the Camius NVR go to Settings >> Record >> so ware. Encode >> Audio.
- Page 15 Playback Access your Camius NVR on Camius View, and tap the playback icon then tap on the date field. Tap on a day with available recording (marked with a red d ), then close the calendar month view. Capturing Tap the screensh icon...
- Page 16 Activating PTZ Linkage Activating Auto-Tracking You can have the NVR command your PTZ On the Camera’s web browser: camera to go to any preset once an her First disable M ion Detection under Settings >> Event camera triggers an event. >>...
- Page 17 - Object Detection (OD): Detects Artificial Intelligence Features an object that’s gone missing. You can activate one A.I. feature at a time per channel, M ion Detection should also be disabled. - Cross Counting (CC): Draw a line to count how many people cross it. - Face Detection (FD) will keep track of detected faces, you can upload samples for an Allow-list and - Heat Map (HM): Find areas on the video...
- Page 18 detect a person or vehicle entering. - License Plate Detection (LPD): Keeps track of detected license plates, you can upload an Allow-list, a - Region Exiting: Draw a shape around an Block-list, and search playback for detected plates. area to detect a person or vehicle exiting it. - Rare Sound Detection (RSD): Detect abnormal sounds like gunsh s, dog barking, or a crying baby.
