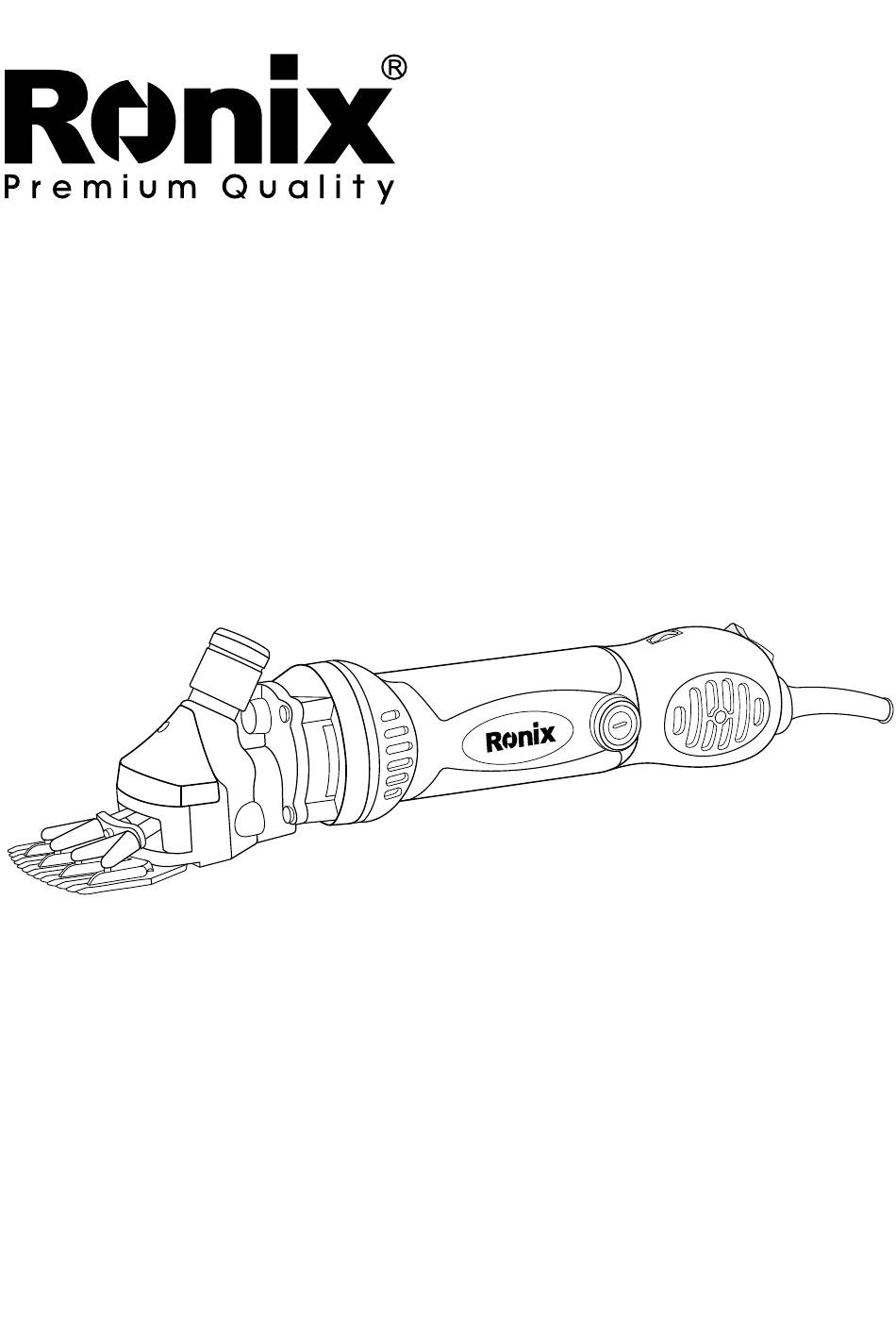

SHEEP CLIPPER
4010
www.ronixtools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ronix 4010

  • Page 1 SHEEP CLIPPER 4010 www.ronixtools.com...

  • Page 3: Specifications

    SPECIFICATIONS 4010 Model Power 850W Voltage 220-240V Frequency 50-60Hz Weight 1.88Kg Blade Material GCr15 Housing Material Plastic Motor Type Excitation Motor Maximum Cutting Capacity 76mm Speed State Levels Animal Categories Sheep, Rabbit Speed 0-2600RPM Power Cable Length 2.9M Supplied in...

  • Page 4: Part List

    PART LIST Tension Dimmer ON/OFF Switch Switch Carbon Brush Mesh Air Filter Comb Cutter Plate INTENDED USE - The shearing machine is intended exclusively for use on sheep and goats, as well as llamas alpacas, and other members of the camel family, its use can also be extended to cattle and horses by changing the shearing head.

  • Page 5: Symbols And Warning Signs

    - This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

  • Page 6: Information Symbols

    INFORMATION SYMBOLS NOTE Note, non-compliance can lead to operating malfunctions or damage. PICTORIAL NOTE This symbol, together with its number, refers to the relevant at the end of the instructions. PROPER USE - The use for which the machine is intended is described in Section 1.2. THE FOLLOWING APPLIES TO SAFE OPERATION The details in Section 1.3,”...

  • Page 7: Servicing And Checking Requirement

    Observe the relevant national regulations. Cleaning and servicing should only be done with the mains plug pulled out. - Never let a machine with its cable plugged in, lie around unsupervised. Keep children away from the working area and store the machine out of their reach.
  • Page 8 - The operator must be experienced in handling the animals to be shorn. - The operator must have read and understood the instructions or have been instructed by an expert in the machine’s use and have had the potential dangers explained. - Children are not permitted to operate the equipment.
  • Page 9 - Switch the machine to OFF before pulling out the plug. - Only use original shearing blades. Do not use damaged shearing blades with blunt, missing, or broken-off teeth. Only work using sharp shearing blades, ground in a specialist workshop. - Look out for foreign bodies wire, wood, etc.

  • Page 10: Shearing Adjustment Using The Tension Nut

    SHEARING ADJUSTMENT USING THE TENSION NUT Before putting it into operation, make adjustments as follows: BEFORE SHEARING: - With the machine switched off: ensure that the pressure yoke’s carrier cone pins mesh precisely into the positioning holes in the cutter (item 2).
  • Page 11 muffled and some resistance is detectable as you tighten the tension nut. The pressure should now be correctly set. Begin shearing. If it still does not cut properly you will have to add a little more tension. DURING SHEARING - The shearing system works with much less pressure having to be applied than with traditional sheep shearing machines.

  • Page 12: Switching On/Off

    - Only use our special oil or a paraffin oil meeting the ISO VG 15 specification. This oil is non-toxic and produces no irritation on contact with the skin or the mucous membranes. This paraffin oil degrades to some 20% after 21 days (CEC-L-33-T-82). Poor lubrication is the most frequent cause of unsatisfactory shearing resulting in inadequately oiled shearing blades will overheat leading to reduced blade life.

  • Page 13: Fitting The Shearing Blade

    - Even with the machine switched off, do not handle the area around the shearing blades as long as the machine is still connected to a power source. Whenever working on the shearing blades/shearing head, always first disconnect the power supply. CLEANING CLEANING THE SHEARING HEAD AND SHEARING BLADES After shearing, remove all oil from the machine by rubbing it down with a...
  • Page 14 - Ensure that the new shearing blades are clean. Particular care should be taken to ensure that the ground surfaces are free of dirt; if not, even newly ground shearing blades will not shear satisfactorily. - Place the new cutter in the pressure yoke’s carrier cones Z and push the new comb plate between the loosened screws.

  • Page 15: Re-Sharpening The Shearing Blades

    - Now turn the machine over so that the tension nut is again uppermost. - What is now important is that you rest the blades against each other in such a way that the ground surface of the comb plate projects approx.1.5-2.0 mm beyond the tips of the upper blade.

  • Page 16: Storing The Shearing Machine

    CLEANING THE MESH AIR FILTER The air filter element is found on the underside of the motor section of the machine. The air filter element can be removed from the machine for cleaning. Regularly cleaning the element with a dry brush is essential, when cleaning the air filter, take care that no foreign bodies get into the machine.

  • Page 17: Malfunction Lists

    REPAIRS INTRODUCTION - Actions to be taken to rectify malfunctions are indicated in the “Rectification” column of the malfunction lists. Those rectification notes printed on a dark background may only be carried out by an authorized service center. - Details of authorized service centers are to be found at the end of the “Contact Addresses”...
  • Page 18 Faulty cogwheel, Z30 Replace cogwheel. black. Faulty reduction gear in Have the reduction gear the motor section. replaced. The cutter does not move. The crank spindle broke Have the crank spindle or bent. replaced. Have the crank roller The crank roller missing. replaced.
  • Page 19 Have re-sharpened with Comb and cutter blades approx. 20µm negative are blunt. crown. The shearing blade Increase pressure by Poor cutting tension is too low. tightening the tension nut. Have re-sharpened with The blades were not approx.20µm negative properly sharpened. crown.

  • Page 20: Motor Section

    MOTOR SECTION MALFUNCTION CAUSE RECTIFICATION No power Check lead and fuse. Have it checked and Faulty cable changed by a service center. The motor does not run. Have it repaired by the Faulty switch or motor. service center. The overload protection Push in.
  • Page 21 NOTE REAL PRODUCTS MAY VARY FROM THE INSTRUCTION BOOK WITHOUT NOTIFICATION DUE TO CONTINUOUS RESEARCH. USER MANUAL...
  • Page 24 SHEEP CLIPPER 4010 www.ronixtools.com...
