OWNER'S MANUAL

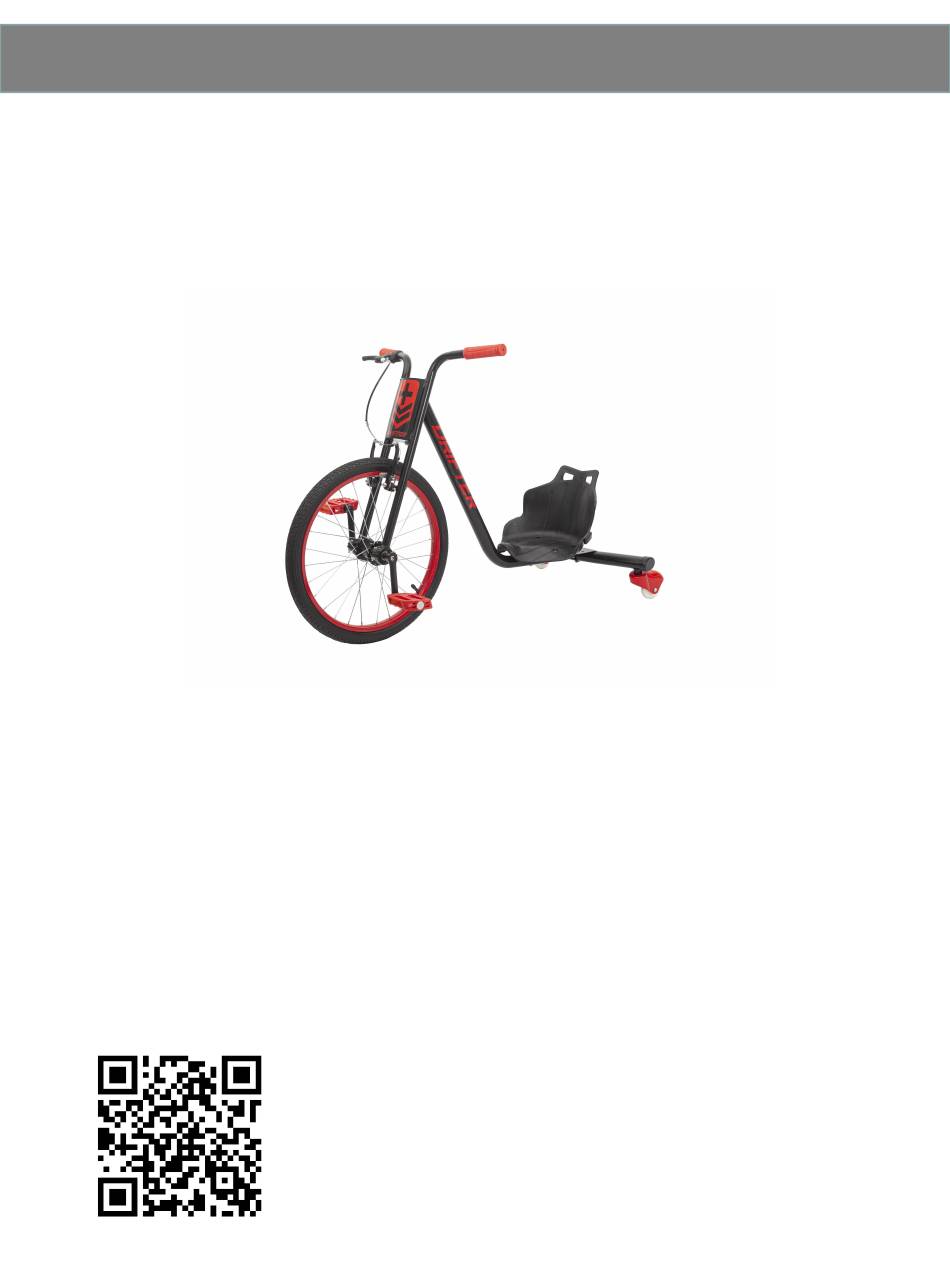

50cm Light Up Drift Trike
Keycode: 43314591
➭50cm front pneumatic wheel
➭tough steel frame
➭easy reach steering and front hand brake
➭light-up flashing PU rear wheels
➭high impact rear wheels for 360 degrees of spinning fun
➭maximum loading weight: 80kg
➭body dimensions 110cm(L) x 56.5cm(W) x 79cm(H)
1 1
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Drifter 43314591
- Page 1 OWNER’S MANUAL 50cm Light Up Drift Trike Keycode: 43314591 ➭50cm front pneumatic wheel ➭tough steel frame ➭easy reach steering and front hand brake ➭light-up flashing PU rear wheels ➭high impact rear wheels for 360 degrees of spinning fun ➭maximum loading weight: 80kg...
- Page 2 SAFETY WARNINGS To reduce the risk of serious personal injury, you should read the instruction in this manual carefully. There are WARNINGS throughout this manual, please follow all WARNING instructions. WARNING TO AVOID SERIOUS INJURY: ❥Adult assembly is required. ❥Continuous adult supervision is required. ❥This product should only be used by persons 8+ years of age.
- Page 3 Tools Required (included in the packing) Allen Functional Open-end Wrench Wrenches(5mm/6mm Spare Parts Short screw sets for seat Long screw sets for front fork Wheel retainers Bolt sets for rear fram...
- Page 4 Parts assembly list Note: Please check parts list first Description Quantity Main Frame Front fork Rear frame Seat Front wheel Pedal left Pedal right Short screw set Long screw set Bolt set Wheel retainer Allen wrench 5mm Allen wrench 6mm Open-end wrench...
- Page 5 Parts Assembly Rear Frame Installation 1. Slide the Rear Frame (3) into the Main Frame Bracket (1). 2. Install the Bolt sets (10) through the Frame holes. Note:the front hole of Part A as shown need to use the bolt set A (10), reference the spare parts pic. 3.
- Page 6 Parts Assembly Frame and Front Fork Installation 1. Remove the rod sets on the head of main frame (1). 2. Slide Main frame (1) into Front Fork (2). 3. Insert the Rod again through the aligned holes. 4. Install the lower washers and nuts of rod sets. 5.
- Page 7 Parts Assembly Seat Installation 1. Place the seat at desired position and align the holes in the seat and frame. 2. Place the short screw sets(8) into aligned holes. 3. Tighten securely with Allen wrench(12) and Open-end wrench(14). 4. If nee ding to move the seat clos er to the front or back, the operation is same as above , there are two groups for adjusting as user's comfortable position.
- Page 8 Parts Assembly Front Wheel Installation 1.Pull brake cable carefully to release it from the cable hanger (or squeeze both sides of the brake arm together to release the cable from cable hanger). 2. Keep the brake arm in opening state to install front wheel. WARNING: Brake arm should be open first then can be assembly the...
- Page 9 Parts Assembly Front wheel installation This will allow the tyre to fit between the brake pads. 1. Put the front wheel (5) in the front fork (2) 2. Make sure Right Crank is on the Right side of the unit. 3.
- Page 10 Parts Assembly Front Wheel Installation 1. Place a Wheel Retainer (11) on each fork end as shown. 2. Install Long Screw Set (9) through fork ends and wheel retainer. 3. Tighten them securely and evenly. Make sure wheel spins freely. WARNING: Ensure the wheel retainer is kept in correct state.
- Page 11 Parts Assembly Pedal Installation Note: There is a pedal marked “R” and a pedal marked “L”. 1. The pedal marked “R” has right hand threads. In sert i t i nto the crank arm on t he right side. Tighten it in a clockwise direction. 2.
- Page 12 Brake System Adjustments WARNING: You must adjust the front brakes slightly as written before you ride the unit. Note: The brake system is not assembled by the user, however need to adjust as shown after installing front wheel. Note: Ensure the wheel is centered, keep even space between wheel and fork (both sides) 1.
- Page 13 All parts of the product have been pre-assembled, please make fine tune appropriately according to the needs of the product during assembly.
- Page 14 they do side screw slightly n the...
- Page 15 be the...
- Page 16 Do not line up the gap between A and B come adjusting.
- Page 17 aligned the distance is inconsistent that work...
