RESETTING THE SERVICE
COUNTERS IN ELGI
CONTROLLERS
(S1 controller, P1 controller, Neuron XT, Neuron II, Neuron III)
Table of Contents
S1 controller
page 1
P1 controller (Neuron e)
page 3
Neuron XT, Neuron II, Neuron III
page 5
ELGI USA SERVICE
Usa.service@elgi.com
Advertisement
Summary of Contents for ELGi S1
- Page 1 RESETTING THE SERVICE COUNTERS IN ELGI CONTROLLERS (S1 controller, P1 controller, Neuron XT, Neuron II, Neuron III) Table of Contents S1 controller page 1 P1 controller (Neuron e) page 3 Neuron XT, Neuron II, Neuron III page 5 ELGI USA SERVICE...

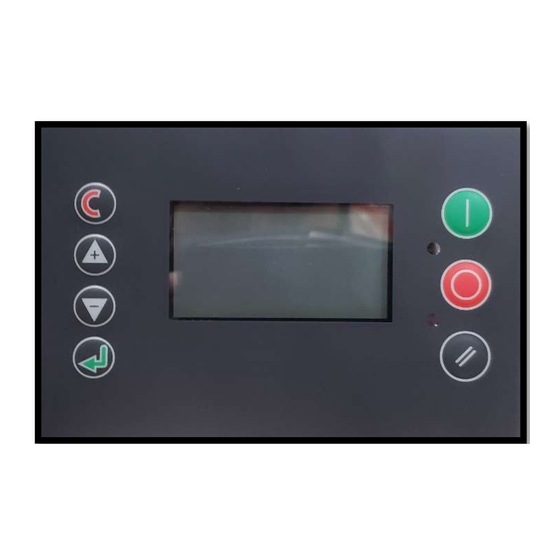

- Page 2 RESETTING THE SERVICE COUNTERS IN ELGI CONTROLLERS S1 controller- 1. To reset the service timers in the S1 controller, you must first access the P04: Alarm menu. To do so simultaneously press and hold down the + and – (triangle shaped buttons). CD 0000 should be shown with the first digit flashing.
- Page 3 RESETTING THE SERVICE COUNTERS IN ELGI CONTROLLERS 2. P00 should appear flashing on the screen. Scroll down using the – button until you see P04 and then hit the enter button (green arrow below the + and – buttons) 3. At this time you should see H3 flashing on the bottom left of the screen.
- Page 4 RESETTING THE SERVICE COUNTERS IN ELGI CONTROLLERS P1 (Neuron e) controller- 1. On the P1 controller there is only 1 master service timer that is set to 2000 hrs. which is the smallest service time increment. 2. To reset this alarm you must access the operational menu.
- Page 5 RESETTING THE SERVICE COUNTERS IN ELGI CONTROLLERS 4. Once in the menu, you should see 1.Sh on the screen. This is the service interval hours (see image below). Press enter to select and change the hours back to 2000 using +/- buttons and enter button.
- Page 6 RESETTING THE SERVICE COUNTERS IN ELGI CONTROLLERS Neuron II, Neuron III, neuron NXT controllers- 1. The Neuron II, neuron III, and Neuron XT controllers all have practically the same menu setups and their service counters are all reset the same way. First, you must access the operator menu.
- Page 7 RESETTING THE SERVICE COUNTERS IN ELGI CONTROLLERS 2. A list of sub-menus should appear. Select maintenance by using the down arrow key and hit enter. 3. You should now see a list of abbreviations representing the multiple service counters with a “yes” or “no” to the right.
- Page 8 RESETTING THE SERVICE COUNTERS IN ELGI CONTROLLERS couple times to return to the home screen. Once at the home screen you may notice that the alarms still appear on the bottom right of the screen. You must now hit the reset key (circular orange arrow on neuron III and Neuron XT).
