Summary of Contents for Westbo Ornament

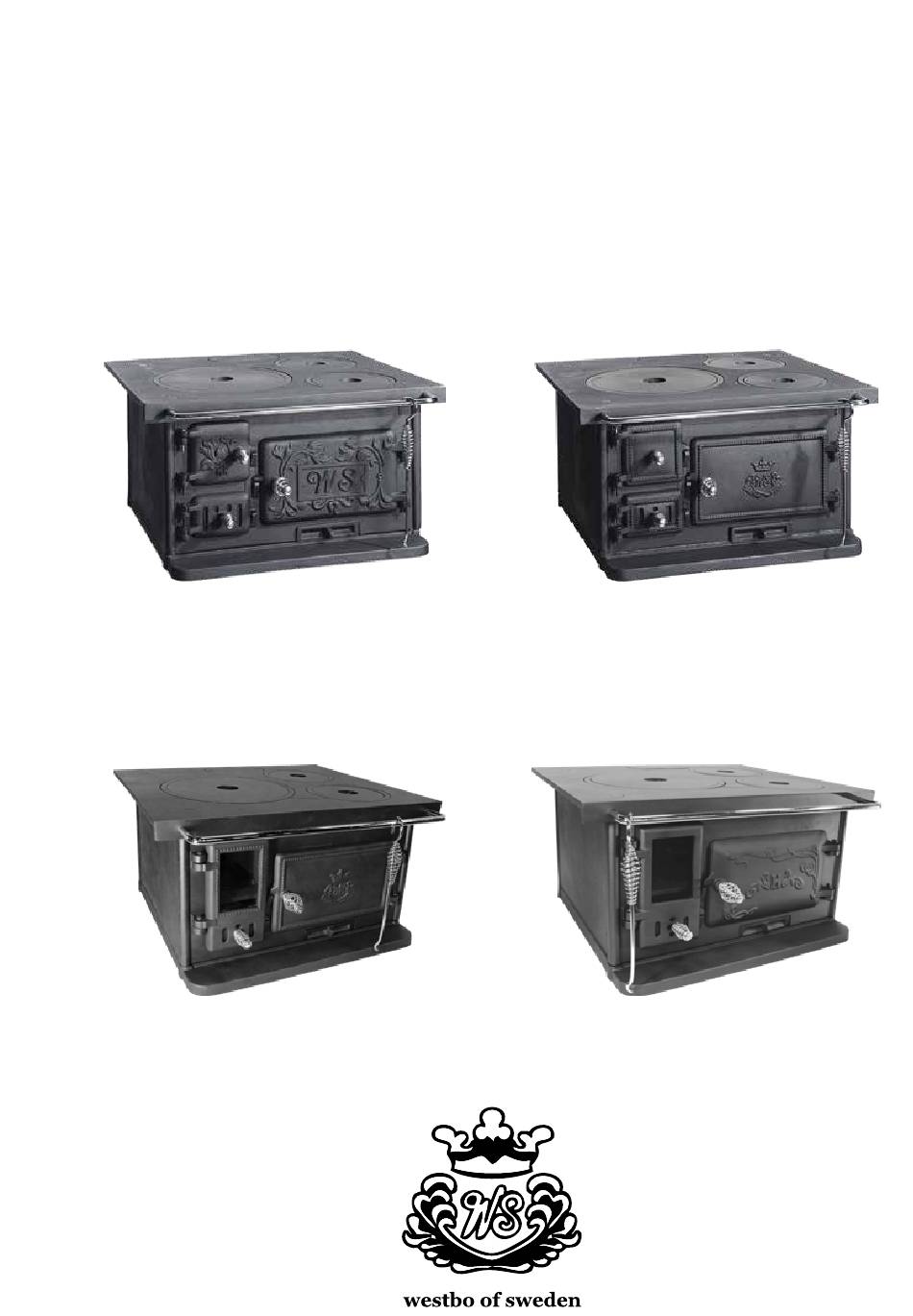

- Page 1 M A N U A L & I N S T R U C T I O N S Westbo cookers Westbo Westbo Ornament Standard Westbo Standard Westbo HVA26 glass door glass door...
- Page 2 Westbo General instructions Cement Included in delivery Ash rake Ashtray Hook Baking sheet How to use Air control The air control is placed on the lower left door no2 if your stove is equipt with external air supply the air control is on the topplate.
- Page 3 Westbo Montage Connect rear Please assemble the oval to round adapter and seal tight- ly. If you will connet to a existing brick chimney you can use the adapter below. Optional. Adapter brick chimney Connect upwards Remove the top cover and use it to seal the rear smoke outlet.
- Page 4 Westbo Montage Function 1. Burning camber, here you place the wood 2. Door 2 is equipt with the air control behind it you find the ash tra. Air control you open and close by push left and right 3. Baking oven 4.
- Page 5 Westbo Technical info Technical data Weight: 140 kg Color: Svart Output: 5 kW Efficiency: 85 % DIN EN 13384-1 Optional Adapter for brick chimney Watertank, top plate extender Combustable wall Brännbar vägg Brandvägg 300mm to combus- tablewall 500 mm brännbar vägg...
- Page 6 Raumheizung in Gebäuden mit möglicher Heiz- u. Brauchwasserbereitung/Space heating in residential buildings with possible supply of hot water 3. Hersteller/Trade mark: Westbo i Reftele AB, Industrigatan 8, 33021 Reftele, Sweden, Tel. +46 371 23330, www.westbo-of-sweden.com 4. Bevollmächtigter/Authorised: Mattias Gunnarsson, mg@westbo-of-sweden.com, Box 5, 33021 Reftele, Sweden Tel. +46 371 23332 5.
