- Page 1 EV CHARGER Installation Manual...
- Page 3 EVT11EU : 11kW (3-phase) tethered type EVT7UK : 7kW (1-phase) tethered type (UK version) The Salus EV Charger Mode-3 AC series offers charging power from 7kW to 11kW through a 5 meters Type-2 charging cable for your Electric Vehicles. Its slim design makes it suitable for both indoor and outdoor environments, ideal for residential use.
- Page 4 Important Safety Information The installation, maintenance, & servicing of the charger must be performed only by a qualified personnel per applicable local regulations. The installer must ensure the installation follows local, regional and national regulations and guideline. When using electric products, basic precautions should always be followed. Turn off power at the circuit breaker before installing or cleaning the EV charger.
- Page 5 Do not attempt to disassemble, repair, tamper with, or modify the EV Charger. Do not insert fingers or foreign objects into any part of the EV Charger, and do not touch it’s end terminals with fingers or sharp metallic objects. Sharp elements exist, beware of injurious cuts.
- Page 6 Electrical Protection • The EV Charger must be permanently connected to the electrical Earth of the installation. • Certified Circuit Breakers should be installed upstream and shall comply with stan- dard with IEC 60898-1. The rated voltage and current of the Circuit Breakers shall be 240V 40A for the 7kW model and 400V/20A for the 11kW model.

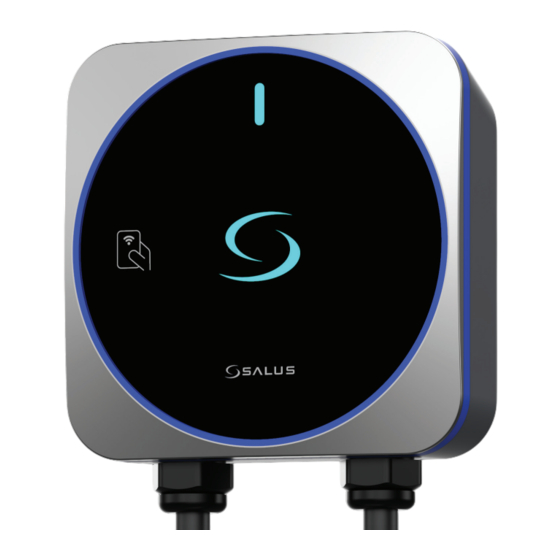

- Page 7 1. LED for charging indicator 2.NFC reader for authentication 3.Y-shape metallic wall mount MODEL NO. OF PHASES OUTPUT CURRENT CONNECTION POWER EVT7EU 1- PHASE TYPE 2 CABLE EVT11EU 3 - PHASE TYPE 2 CABLE 11kW For UK only (with PEN fault protection)
- Page 8 LED Status DURING SETUP Ready to set up Wi-Fi SLOW Blink Connected to Wi-Fi SLOW Blink Connected to Cloud Solid (or OCPP server) No connection FAST Blink CHARGING OPERATION Standby Solid Charger is locked SLOW Blink Charger is waiting for NFC Solid Charger is waiting for schedule SLOW Blink...
- Page 9 Technical specifications SINGLE PHASE (EVT7EU / EVT7UK) THREE PHASE (EVT11EU) Input voltage 230V AC 50Hz 400V AC 50Hz Charging current & power 32A / 7kW 16A / 11kW Charging mode Mode 3 Charging connector 5 meter type 2 charging cable...
- Page 10 Installation and electrical connections 1. Mount the EV charger Use the screws (included) to fix the mounting plate on to the wall. Installation and electrical connections...
- Page 11 Attach the EV charger back to the Tighten the screw at the mounting mounting plate. plate bottom to fix the EV charger firmly to it. Open the deco-cover, there is a recess area at the corner for opening it easily. Installation and electrical connections...
- Page 12 Loosen the screws at each corner of Pass the power supply cable through the the top cover, then open it to access cable gland supplied. the internal part for wiring and set up. Insert the cable into the EV charger and connect it to the terminals, following the configurations listed for single-phase or three-phase power input.
- Page 13 Install the top cover and tighten the After finishing the wiring, the cable screws securely. gland must be tightened to the EV charger in order to secure the cables. 2. Finish the installation Position the deco cover over the top Installation is complete.
- Page 14 Setup Connect your EV Charger to the Inter- Use the smartphone app to register it net via Wi-Fi. to your account. Step 1 : Set up Wi-Fi Connection to the Internet Use a mobile device in order to connect After powering ON, the EV charger will to the EV charger access point.
- Page 15 Once connected, the web browser on the mobile device should open auto- matically and show the EV Charger Wi-Fi set up page. Otherwise, scan the QR code above in On the Wi-Fi setup page, select a order to access the Wi-Fi set up page. network from the list and enter the password to connect the EV charger.
- Page 16 Download the Salus EV charger App and register an user account. Please note: If you already have an Salus Premium Lite account, it will be compatible with the Salus EV Charging app as well. Step 3 : (If needed) Create a Smart EV Charger account In order to create a account we must select the SIGN UP option.
- Page 17 A confirmation code email will be sent via email. Add the code and then select ACTIVATE. Add the the info requested in order to proceed with account creation. Then select SIGN UP. Setup...
- Page 18 Step 4 : Adding your first EV Charger Select ADD in order to proceed with the addition of the EV Charger to the app. The EV Charger can be added in 2 ways: Scan the QR code #2 provided on the side label of the EV Charger.
- Page 19 Set your choice for Off Peak Schedule Add a name for the device & set Time Zone Set your choice for Set your choice for Randomized delay Data Collection and select Save Adding your first EV Charger...
- Page 20 Step 5 : Managing multiple chargers Multiple chargers can be associated with a single user account. This allows the user to conveniently monitor and manage all of their chargers from one place. Swipe the app’s dashboard to cycle through different chargers Managing Multiple Chargers...
- Page 21 Dashboard features and settings History Schedule Settings Dashboard Features and Settins...
- Page 22 Step 6 : Charging flow Connect the charging cable to the Wait to reach charging schedule, EV and the EV charger. or select Boost to override Swipe NFC card on the EV charger, schedule and charge at once. or select Start to start charging. Charging is initiated.
- Page 23 Charging flow - potential displays Charging screen. This screen will apppear when EV chargers stops or suspends recieving charge. Charging completed. Error screen. Charging Flow - Potential Displays...
- Page 24 In-App Settings for the EV Charger In -App Settings for EV Charger...
- Page 25 Here the name of the EV charger can be changed. When Plug&Charge is disabled, authorization is required before charging, either by using the App or by swipe NFC card on the EV charger. To manage which NFC card can initiate charging, this screen allows adding new NFC card (by scan QR code or in- put card number) to the EV charger,...
- Page 26 A Tamper switch message log is also available for checking if the EV charger cover has been opened while in operation. Edit Time & Zone. In App Settings for EV Charger...
- Page 27 Max Charge current It shows the maximum charging current the EV charger can pro- vide. (It is affected by both the SKU and the hardware setting inside the EV charger). Plug and Charge When enabled, the EV charger can initiate charging without au- thorization from App or NFC card.
- Page 28 Other App Settings Other App Settings...
- Page 29 Profile User information. All Smart Charger Displays all EV chargers added to this user account, and their current status. Language Change App display language. Other Notification Settings Enable/Disable App notification when EV charging starts or ends. About App information. Privacy & Terms Diverts to Privacy &...
- Page 30 Account sign off & Factory reset When removing the EV charger from your account, the EV charger will also perform a factory reset. Once finished, the LED on the charger flashes Yellow. PEN fault protection for EVT7UK : 7kW (1-phase) tethered type (UK version) When installed on a PME electrical system it is necessary to protect the user from a potential electric shock that could occur if the combined Neutral and Earth (PEN) conductor on the supply...
- Page 31 Hereby, Salus Controls., declares that this EV Charger is in compliance with the essential require- ments and other relevant provisions of RE Directive 2014/53/EU. A copy of the full DoC is attached. SALUS Controls Units 8-10, Northfield Business Park, Forge Way, Parkgate...
- Page 32 Email: sales@salus-tech.com www.saluscontrols.com SALUS Controls is a member of the Computime Group Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. 10/2024...
