Installation and Operation Manual
SRC-16 + G2
Sixteen Channel Serial/Ethernet Remote Control
Firmware Version 1.33 and above
Manual update: 12/10/2024
If you need a firmware upgrade, contact Broadcast Tools®
No part of this document may be reproduced or distributed without permission.
ALL SPECIFICATIONS AND FEATURES FOR THIS PRODUCT ARE SUBJECT TO
CHANGE WITHOUT NOTICE
NOTE: We recommend the use of Chrome, Firefox or Safari as your browser.
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
All Sentinel® labeled products are registered trademarks of Broadcast Tools, Inc.
Copyright® 1989 - 2024 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Broadcast Tools is a Veteran Owned Business
Visit www.broadcasttools.com for important product update information.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Broadcast Tools SRC-16 G2
Summary of Contents for Broadcast Tools SRC-16 G2
- Page 1 NOTE: We recommend the use of Chrome, Firefox or Safari as your browser. Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes.
- Page 2 SRC-16 + G2 Installation and Operation Manual CAUTION! Broadcast Tools products, as any elec- Table of Contents tronic device, can fail Section Title ........Page # Introduction.
- Page 3 SRC-16 + G2 Installation and Operation Manual INTRODUCTION CAUTION! Thank you for your purchase of a Broadcast Tools® SRC-16 + G2 sixteen channel serial/Ethernet remote control (referred to as the SRC-16 + G2 throughout this man- Broadcast Tools® ual). We’re confident that this product will give you many years of dependable serv- Products, as with any ice.

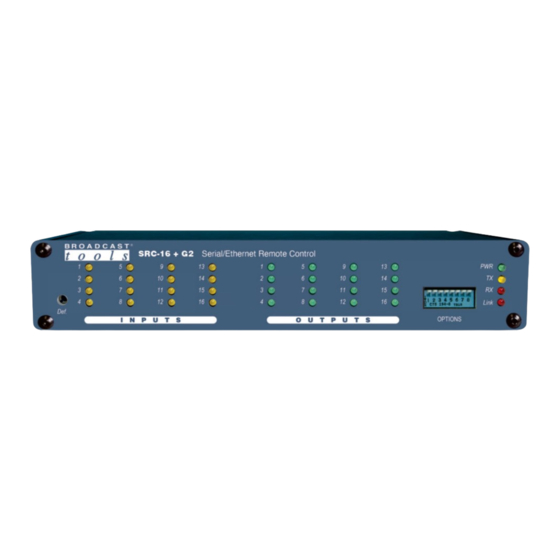

- Page 4 SRC-16 + G2 Installation and Operation Manual Product Overview The Broadcast Tools® SRC-16 + G2 is a computer GPIO interface to the real world. Connected through an RS-232 serial or Ethernet port the SRC-16 + G2 can notify your PC software program that any of 16 optically isolated inputs have been opened or closed and allow your software to control any of the 16 SPST, 1-amp (form A) relays.
- Page 5 SRC-16 + G2 Installation and Operation Manual Inspection Please examine your SRC-16 + G2 carefully for any damage that may have been sus- tained during shipping. If any damage is present, please notify the shipper immedi- ately and retain the packaging for inspection by the shipper. The package should con- tain the SRC-16 + G2, a one-foot RED straight-through CAT 5 (daisy-chain) cable, a modular cable with 9-pin “S9”...
- Page 6 SRC-16 + G2 Installation and Operation Manual Rear Panel Description Power 2.1mm coaxial DC power jack, 9 - 12 VDC, center positive. Chassis Ground (Chs Gnd) Station ground and cable drain wires should be tied to this chassis ground point. Relay Outputs: Each of the sixteen relay outputs is supplied with SPST (form A) dry contacts that are jumper selectable for either normally open (N.O) or normally closed (N.C) operation.
- Page 7 SRC-16 + G2 Installation and Operation Manual For example: To connect a 48 VDC signal voltage to an input on the SRC-16 + G2 in “wet” con- figuration the completed equation for the external resistor value would be: R = ((48-1.2)/0.009)-2200 = 3000 ohms To calculate the power dissipated by the external resistor, the equation would be: P = I x I x R, so the resistor must be at least .009 x .009 x 2200 = 0.243 Watts, use a 1/2 Watt rated resistor.
- Page 8 SRC-16 + G2 Installation and Operation Manual Expansion Ports Used to connect multiple SRC-16 + G2s using the included red Cat5 patch cable, allowing them to share one PC serial port or Ethernet IP address. Only use the sup- plied one-foot RED straight-through CAT 5 (daisy-chain) cable to connect multiple SRC-16 + G2’s together.
- Page 9 SRC-16 + G2 Installation and Operation Manual Setup/Operation RS-232 Serial Control Connect one end of the modular cable to the RJ11 jack on the rear panel of the product and the other end to the RJ11 to the jack on the “S9” 9-pin female D-sub adapter. Connect the 9-pin female D-sub “S9”...
- Page 10 SRC-16 + G2 Installation and Operation Manual Set Operation Mode (SW1-6, SW1-6, SW1-8) SW1-6 SW1-7 SW1-8 Mode 0 - PC Control Mode 1 - AT1616 Command Set Mode 2 - *uiix Mode 3 - Invert send and poll response bits Mode 4 - PAIR Mode 5 - Unused Mode 6 - Data Programming Mode...
- Page 11 SRC-16 + G2 Installation and Operation Manual Invert Mode (Mode 3) This mode uses the same ASCII string commands as PC Control Mode (Mode 0) except the ASCII send and poll input status bits are inverted. This is included for backwards compati- bility PC automation software designed to operate with older SRC-16 firmware versions.
- Page 12 SRC-16 + G2 Installation and Operation Manual Data Programming Mode (Mode 6) In the Data Programming Mode the SRC-16 + G2 can be programmed to send custom strings when an input turns on or turns off. Its relays can be programmed to trigger from custom strings.
- Page 13 SRC-16 + G2 Installation and Operation Manual Programming Relay Control Strings In Data Programming mode: enter “*R” and a list of the 16 relay control strings will be displayed. This is the data that will cause the corresponding relay to activate in operational mode.
- Page 14 SRC-16 + G2 Installation and Operation Manual Programming Relay Pulse Duration/Action In Data Programming mode: enter “*P” and a list of the 16 relay configuration val- ues will be displayed. Values can be set from 000-255, each value is multiplied x 100ms.
- Page 15 SRC-16 + G2 Installation and Operation Manual ASCII Burst Commands The burst mode allows a computer or ASCII terminal (RD-232 serial or TCP/UDP Ethernet) to control and interrogate the unit. This section defines all burst mode commands. Each burst mode command starts with an asterisk (*). Next is a single decimal digit that cor- responds to the unit (ID) number 0-3.
- Page 16 SRC-16 + G2 Installation and Operation Manual *uSPA - Send status of all inputs. Response in SuP,A,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x <CR><LF > format where Input 01 is first and Input 16 is last and where “x” is 1 if the cor- responding input is high, 0 otherwise. Command Example: *0SPA Response Example: S0P,A,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0 Indicates all inputs are low.
- Page 17 SRC-16 + G2 Installation and Operation Manual Command string to SRC-16 + G2: 00101010b Start byte 01000010b Board ID 2 (010b), Byte count 2 (00010b) 01001101b All Output Status Request 10111001b Check sum (2Ah+42h+4Dh=B9h) Response string from SRC-16 + G2 00101010b Start byte 01000100b...
- Page 18 TO THE WEB SERVER UNLESS INSTRUCTED TO DO SO BY BROAD- CAST TOOLS®. DOING SO DELETES ALL SOFTWARE AND VOIDS ALL WARRANTIES FROM BROADCAST TOOLS, INC. CAUTION! If you are not familiar with Ethernet enabled equipment, it may be use- ful to contact your IT department, network administrator or network consultant for assistance.
- Page 19 SRC-16 + G2 Installation and Operation Manual Ethernet “Quick Start” Guide Step 2: Under Advanced Network Settings click Change adapter settings. The Network Connections windows will pop up, as shown below. Step 3: Right click on the icon labeled Local Area Connection or Ethernet. A menu will appear.
- Page 20 SRC-16 + G2 Installation and Operation Manual Ethernet “Quick Start” Guide Step 4: On the Local Area Connection Properties page, double click on Internet Protocol (TCP/IPv4) to display properties. WEBSITE: Step 5: Before making any changes to the network settings, write down the current Visit our web site for settings (or screen capture the page and print) so that they can be restored product updates and...
- Page 21 SRC-16 + G2 Installation and Operation Manual Ethernet Setup and Operation Connecting via the Ethernet “LAN/NET” port: 1. Connect the supplied GRAY colored XOVER cable between the PC’s Ethernet port and the products “LAN/NET” network RJ45 jack. 2. Connect the included power supply to the SRC-16 + G2. Verify that the green PWR LED is lit and the green “LINK”...
- Page 22 SRC-16 + G2 Installation and Operation Manual Ethernet Setup and Operation Changing network settings on the Ethernet “LAN/NET” port: NOTE: We recommend the use of Chrome, Firefox, or Safari for as your browser. 1. Connect the supplied GRAY colored XOVER cable between the PC’s Ethernet port and the products “LAN/NET”...
- Page 23 SRC-16 + G2 Installation and Operation Manual 6. The default work mode is TCP Server, TCP Client, UDP Server and UDP Client are also available. To change the TCP port choose “Serial Port” from the side bar and change the “Local Port Number” setting: WEBSITE: Visit our web site for product updates and...
- Page 24 SRC-16 + G2 Installation and Operation Manual Ethernet Pair Mode TCP Configuration Two SRC-16 + G2 units can be paired over Ethernet to form a bi-directional “relay extension cord”. Both units must be on the same network, or be connected to net- works that can reach each other, and configured for Pair Mode.
- Page 25 SRC-16 + G2 Installation and Operation Manual SPECIFICATIONS Digital Inputs: 16 - Optically Isolated inputs, dry configuration (default) or wet configuration +3.3 to 24 VDC input, or +25-48 VDC input via an external 3.3K ohm resistor). 50 ms minimum duration. Relay Outputs: 16 - SPST, 1 amp/30 VDC relays.
- Page 26 If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in accordance with Broadcast Tools’...
- Page 27 SRC-16 + G2 Installation and Operation Manual APPENDIX e-mail: voice: fax: support@broadcasttools.com 360.854.9559 866.783.1742...
- Page 28 SRC-16 + G2 Installation and Operation Manual APPENDIX e-mail: voice: fax: support@broadcasttools.com 360.854.9559 866.783.1742...
