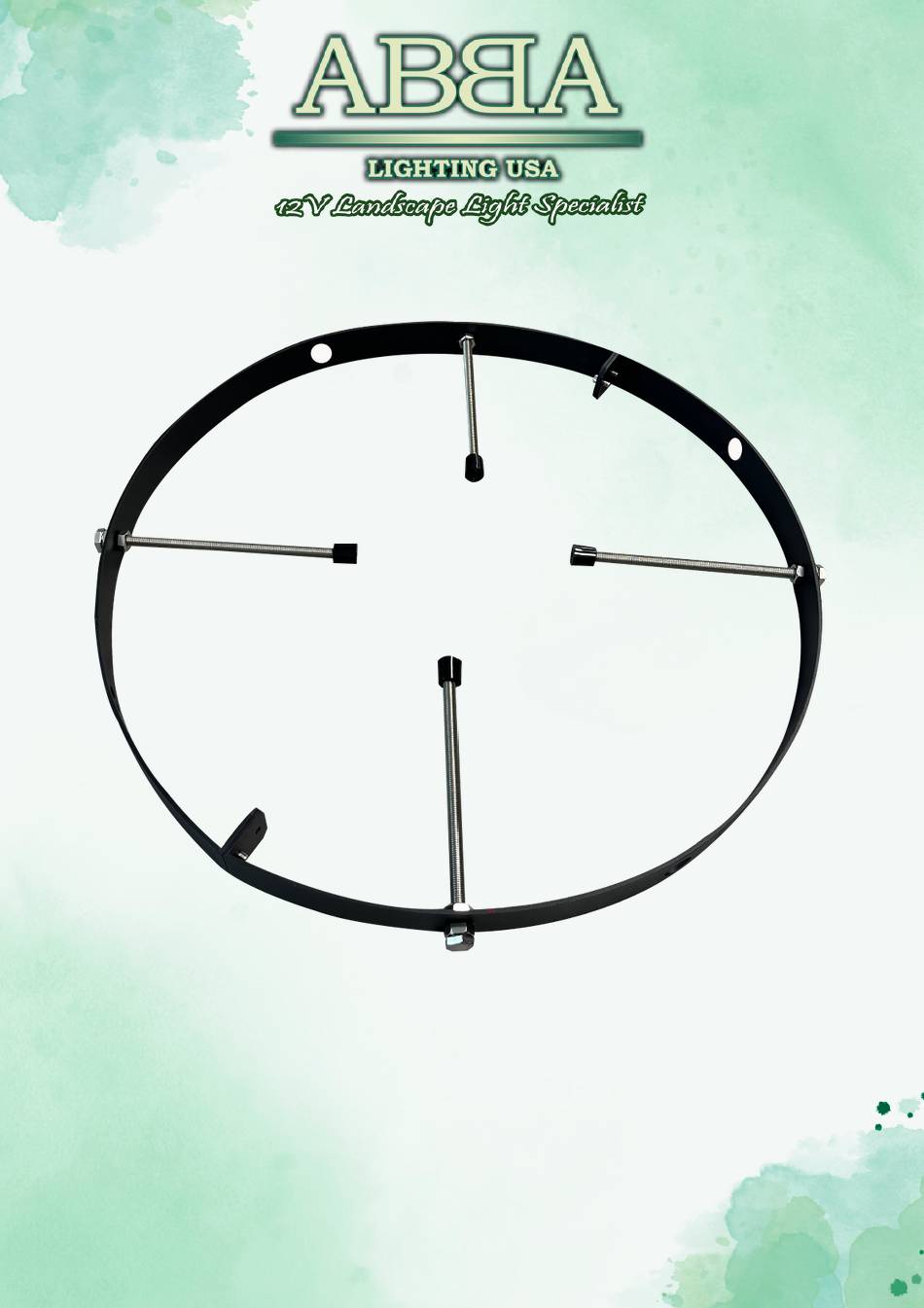

- Page 1 TRA01 INSTALLATION GUIDE www.ABBALightingUSA.com...
- Page 2 TRA01 TREE RING Congratulations on your purchase of this high-quality product! We want to ensure that you have the best possible experience with it, so we kindly ask that you take a moment to carefully read and follow all instructions before assembly, installation, and use. By doing so, you'll not only guarantee correct function and safety, but also optimize the full potential of this exceptional product.
- Page 3 Fixture(s) must be installed in accordance with all local codes and ordinances. Do not instal within 10 feet of a pool, spa or fountain INSTALLATION INSTRUCTION Place the bolt through the hole in Materials Needed: the ring. TRA01 ring mount kit Drill Allen Wrench Level Measuring tape Pencil...
- Page 4 rotate the rubber cap clockwise to cover the nut and ensure a tight seal. Before installing the tree ring onto the tree, it is recommended and safe practice to first place all the selected spotlights into the ring. Insert the base each spotlight into...
- Page 5 Position the mounting bracket Once you've connected all the against tree required wires for power, double- designated marked spot. Utilize check to ensure all connections the four bolts previously inserted are properly set and secure. When into the tree ring to fasten it you're confident that everything is securely.
- Page 6 The minimum radius required for placing the tree ring is 7.8" The maximum radius required for placing the tree ring is 23" www.ABBALightingUSA.com...
