- Page 1 06, 2021 Version 1.3 Strikesmart™ Controller 2.0 USer GUIDe Hilltip icestriker™ spreaders & spraystriker™ sprayers this manual replaces all editions with an earlier date.
- Page 2 Basic functions symbols adjusting spreading width and amount of spreading material adjusting spray width and spray volume presets mode Using the spraybar Using the handspray Optional function: Hilltip Htrack Htrack - controller setup tracking software update...

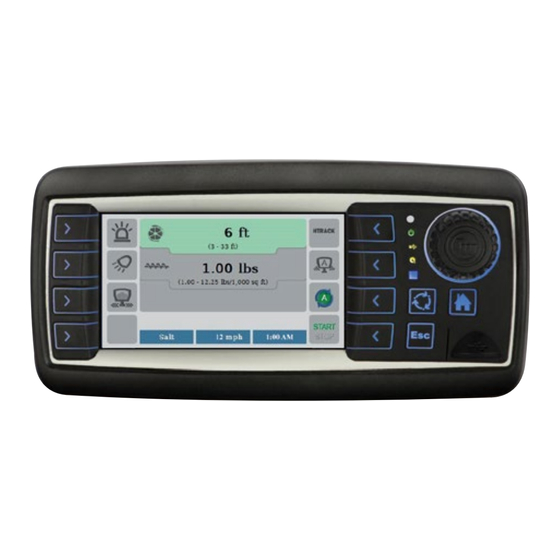

- Page 3 IntRoDUctIon StrikeSmart™ this controller is designed for your new Hilltip icestriker™ spreader or spraystriker™ sprayer. you will get a highly personalized spreading experience by carefully adjusting all the settings. the calibration function will help you reach the most accurate spreading results with your standard materials. you will get the most out of your spreader by reading and understanding this User Guide.
- Page 4 oPeRatInG tHe contRolleR StrikeSmart™ oPeRatInG tHe contRolleR Main menu selecting spreading mode Main menu Before starting your basic spreading session, select presets, automatic or manual spreading mode by Presets Htrack pushing the selection button next to your choice. automatic mode will adjust the amount of automatic settings spreading material (g/m...
- Page 5 Protocol Disabled disabled if you use presets, Htrack if you use Hilltip tracking system, diN eN 15430 if you use an external tracking system. push the round button once to insert UsB memory! select protocol.
- Page 6 oPeRatInG tHe contRolleR StrikeSmart™ Presets configuration Presets configuration Go to Settings → Presets select material: salt type Mode Width application rate push and scroll the round button to select material, 1 solid automatic 6.5 ft 5 lb/1000 sq ft fill in the Type, Mode, Width, Application rate and 2 liquid Manual 13 ft...
- Page 7 oPeRatInG tHe contRolleR StrikeSmart™ adjust backlight adjust backlight Go to Machine → Backlight scroll the round button to change the backlight. note: it is also possible to adjust backlight in Main Menu by rotating the round button. It is possible to adjust backlight in settings and Main Menu by rotating the round knob.
- Page 8 oPeRatInG tHe contRolleR StrikeSmart™ calibrate the Handspray calibration Handspray the handspray calibration includes 4 calibration points. press start and follow the instructions. calibration point gal/min start to calibrate the Pre-wet, insert the liquid density by calibration Pre-wet Pump pushing and scrolling the round button. the pre-wet Density (lbs/gal) 10.01...
- Page 9 oPeRatInG tHe contRolleR StrikeSmart™ the spraybar, sB + eN (spraybar nozzles and left calibration spraybar end nozzle) and all nozzles (spraybar and end gal/min calibration point nozzles) are calibrated separately (image 3). the Spraybar SB+EN All nozzles spraybar calibration includes 4 calibration points. 1.
- Page 10 oPeRatInG tHe contRolleR StrikeSmart™ Info menu Info menu view Information Go to the desired submenu by pushing the selection button next to it service error codes trip log about Info menu error codes error codes Go to Info → Error Codes error code status the error code view shows error code and error code...
- Page 11 oPeRatInG tHe contRolleR StrikeSmart™ trip log trip log Go to Info → Trip log distance (mi) clear solid material 3708 (lbs) in the trip log view (Info →Trip log) the user can see liquid material 0 min time the calculated amount of material in the spreader. log started Value not set When loading the spreader with material, the user equipment status info...
- Page 12 oPeRatInG tHe contRolleR StrikeSmart™ spreading mode basic functions Main menu example: activating a basic function when you have Select material: Gravel chosen the suitable mode (automatic or manual), the spreading-control screen will appear. activate the beacon light or led work light by push- Automatic Settings ing the selection button next to the lamp-symbol.
- Page 13 oPeRatInG tHe contRolleR StrikeSmart™ symbols activate/inactivate a function by pushing the selection button next to it. a grey symbol means that the function is inactive. an activated function is represented by a colored symbol. push this button to start your spreading START this button will activate the optional led- STOP...
- Page 14 oPeRatInG tHe contRolleR StrikeSmart™ Basic spreading function for IceStriker: Main menu n automatic mode the distribution unit is defined by Select material: Gravel lbs/1000 sq ft, and in manual mode by percent (%) of auger max speed. Automatic Settings Manual Info adjusting spreading width and amount of spreading material...
- Page 15 oPeRatInG tHe contRolleR StrikeSmart™ Presets mode Main menu Select Presets mode from the main menu. Select material: Gravel select one of the four presets by pushing the selection button next to number. Automatic Settings Manual Info Presets mode Using the spraybar Main menu If you use an IceStriker spreader: Make sure that Select material: Gravel...
- Page 16 UPDate StrikeSmart™ oPtIonal fUnctIon: HIlltIP HtRack the Hilltip Htrack system is compatible with all models of icestriker , spraystriker and snowstriker via the controller. With the tracking software you can track and manage all of your spreading devices and snowplows online on your computer, tablet or smartphone.
- Page 17 softWaRe UPDate StrikeSmart™ 3. reboot: When the controller and spreader module 1. controller update Ready update is ready select “reboot” to complete the 2. spreader module update update. Ready You have the latest version installed Installation version 0.47 available version 0.47 3.
