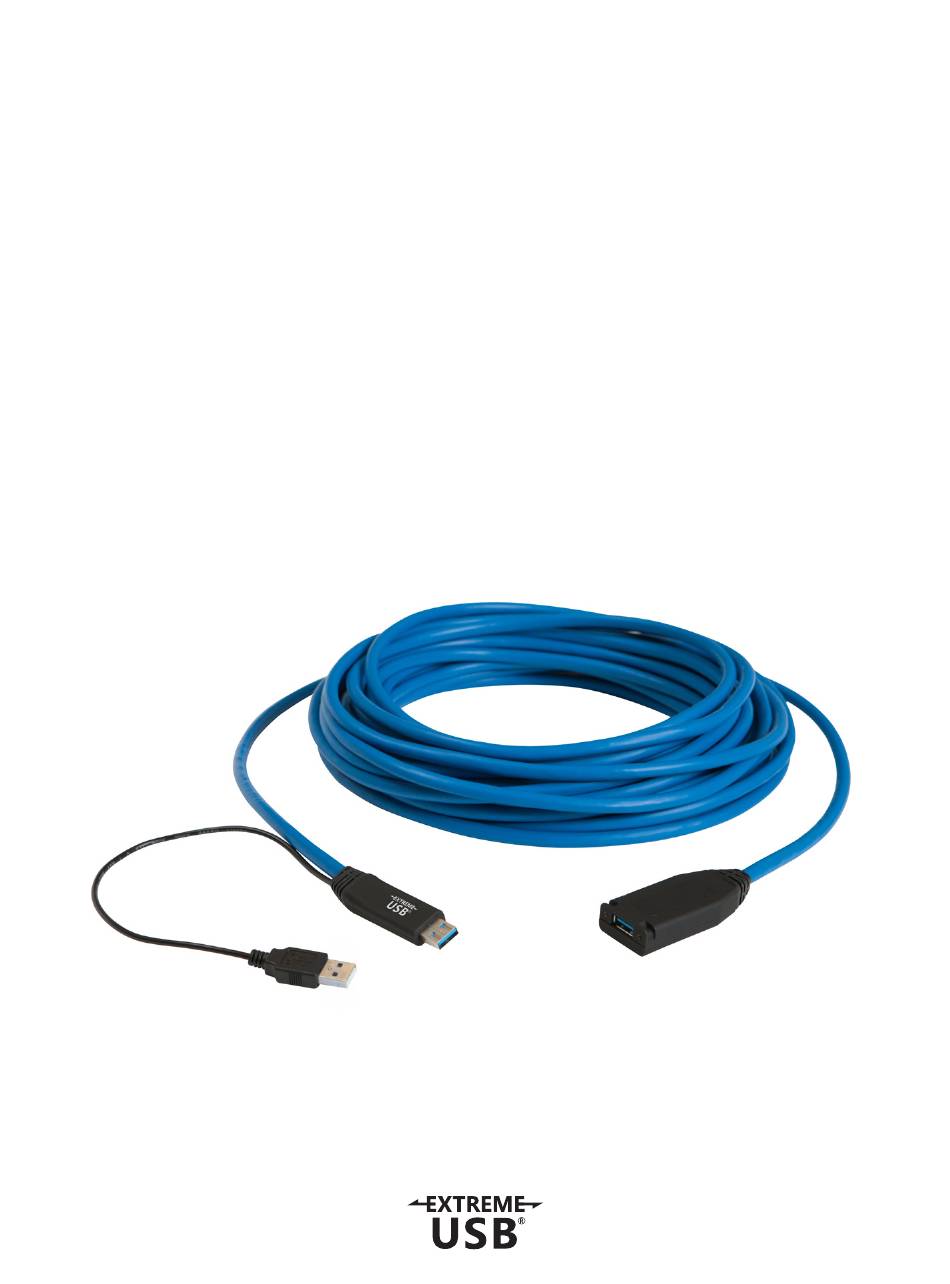

- Page 1 USB 3.0 SP3001-15 1-Port USB 3.0 15m Active Extension Cable User Guide...
- Page 2 Thank you for purchasing the USB 3.0 SP3001-15. Please read this guide thoroughly. This document applies to Part Number 01-00470. FCC Radio Frequency Interference Statement Warning This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
- Page 3 Contents Introduction ......................3 USB 3.0 SP3001-15 Product Contents ..................3 Features ..............................3 USB 3.0 SP3001-15 Parts Diagram ....................4 Installation Guide ....................5 Example Application .......................... 5 Requirements ............................5 Connection Instructions ........................6 Compatibility ............................6 Troubleshooting ......................7 Contacting Technical Support ................8 Specifications......................9...
- Page 4 Introduction This guide provides product information for the 15-meter USB 3.0 SP3001-15 active copper extension cable, installation instructions and troubleshooting guidelines. The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices. NOTE: Notes provide additional information that could be useful.
- Page 5 USB 3.0 SP3001-15 Parts Diagram ITEM TYPE DESCRIPTION LED Light is GREEN Active cable is powered on. LED Light is RED Active cable is not powered properly or not detected by host. Connects to USB 3.0 device. Port can accept USB 3.0 standard USB 3.0 Type A Locking connector and locking-type connector as per AIA USB3 Vision Receptacle...
- Page 6 Installation Guide Example Application USB 3.0 Camera USB 3.0 15m active copper cable Computer & Monitor Assembly Line Requirements To complete installation of the SP3001-15, you will also require the following items that are not included with the product: • USB 3.0 compatible computer (host computer) with a USB 3.0 compliant operating system •...
- Page 7 (on page 9 of this guide). Compatibility The SP3001-15 complies with USB 3.0 specifications governing the design of USB devices. However, Icron Technologies Corporation does not guarantee that all USB 3.0 devices are compatible with the SP3001-15, as there are a number of different configurations that may impact the operation of USB 3.0 devices over...
- Page 8 Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support where you purchased this cable for further assistance. PROBLEM CAUSE SOLUTION...
- Page 9 Contacting Technical Support If you are experiencing problems not referenced in the Troubleshooting Guide, contact Technical Support at the company where you purchased this product and provide them with the following information: • Host computer make and model • Type of Operating System installed (e.g. Windows 8, OS X, etc.) •...
- Page 10 Specifications RANGE Active Copper Cable 15m (49.21 ft) SPEEDS USB 3.0 Up to 5Gbps (Not backward compatible with USB 2.0/1.1) PHYSICAL 1 x USB 3.0 Type A Locking Receptacle per AIA USB 3 Vision USB Connector on Device Side ™ specification 1 x USB 3.0 Host Connector and 1 x USB 3.0 Power Connector USB Connectors on Host Side...
