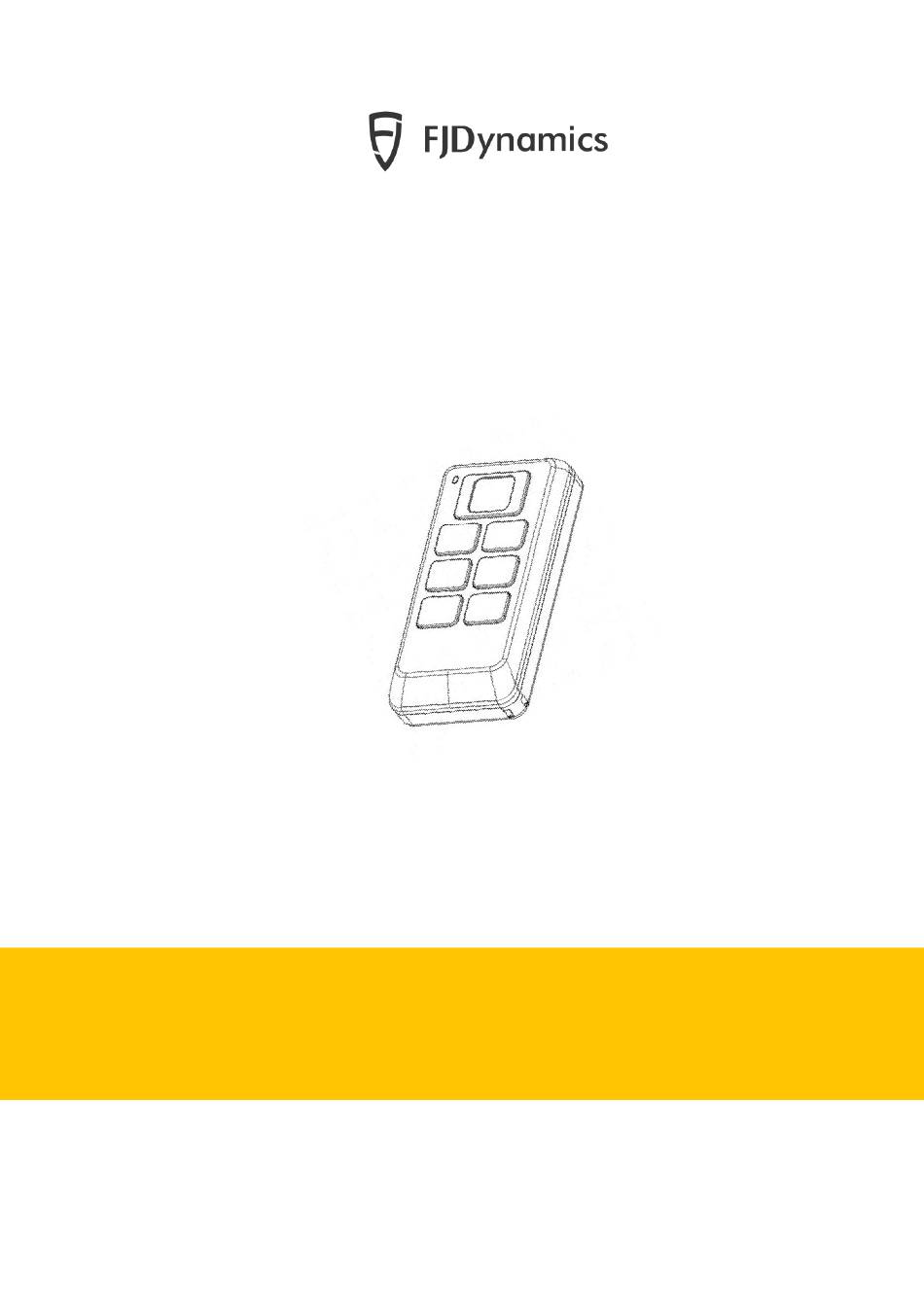

FJD Easy Control

User Manual

Need help?

Do you have a question about the FJD Easy Control and is the answer not in the manual?

Questions and answers

Summary of Contents for FJDynamics FJD Easy Control

Page 2 FJD Easy Control User Manual Safety Instructions Before use, ensure that you have read and understood all the operation instructions and precautions in this manual. Operator Requirements: 1. Do not drive if you are under the age of 18. 2. Do not drive the tractor under the influence.
Page 3 FJD Easy Control User Manual Copyright Notice: FJDynamics reserves the copyright for this manual and all contents herein. No part of this manual may be reproduced, extracted, reused, and/or reprinted in any form or by any means without the prior written permission of FJDynamics.
Page 4 Contents Chapter 1 Product Overview ........................ 1 1.1 Introduction..........................1 1.2 Product Diagram ........................1 Chapter 2 Components of FJD Easy Control .................. 2 2.1 Components ..........................2 Chapter 3 Operation Instructions ...................... 4 3.1 General ............................4 3.2 Using FJD Easy Control ......................4 3.2.1 Establishing Bluetooth Connection ................
Page 5 Chapter 1 Product Overview 1.1 Introduction FJD Easy Control, a wireless remote control from FJDynamics, works with the company's autosteering system. It allows users to perform operations rapidly, such as turning on or off the auto mode, marking points A and B, measuring the covered area, and turning around, thereby improving user experience.
Page 6 FJD Easy Control User Manual Chapter 2 Components of FJD Easy Control 2.1 Components FJD Easy Control Hook and loop Velcro Lanyard 3M tape Anti-slip tape Pan head bolts with elastic flat pad Figure 2 Components of FJD Easy Control...
Page 8 3.2.1 Establishing Bluetooth Connection Insert two AAA batteries into the FJD Easy Control, and then press and hold the two arrow buttons until the indicator in the upper left corner is lit. It stays on for 3 seconds and then blinks rapidly for 60 seconds.
Page 9 FJD Easy Control User Manual Figure 4 Pair with the FJD Easy Control on the control terminal You may check the Bluetooth connection status through the icon in the upper left corner, as shown below. Bluetooth disabled. FJD Easy Control not connected.
Page 10 FJD Easy Control User Manual appears. It disappears if the FJD Easy Control automatically reconnects to the control terminal. If the problem persists, check the FJD Easy Control and the control terminal. Figure 6 Bluetooth disconnected 3.2.2 Setting Buttons On the control terminal, choose Settings > Auxiliary Functions > Easy Control.
Page 11 To configure the FJD Easy Control, Bluetooth connection is required. Figure 9 Bluetooth disconnected 3.2.3 Turning On/Off Auto Mode When the operation screen is displayed, press the yellow button on the FJD Easy Control to © FJ Dynamics Technology Co., Ltd. All rights reserved.
Page 12 Figure 10 Turn on/off auto mode 3.2.4 Turning On/Off Area Metering Press the button on the FJD Easy Control to turn on or off area metering, as shown in Figure Note: Wait for at least 1 second before you press the button again.
Page 13 FJD Easy Control User Manual 3.2.5 Drawing Guidance Line 1) Marking, canceling and saving points: Press the buttons on the FJD Easy Control to mark, cancel, and save points, as shown in Figure 12. Note: Wait for at least 1 second before you press the button again.
Page 14 FJD Easy Control User Manual Chapter 4 Appendix 4.1 Specifications FJD Easy Control Battery voltage 2.2 V–3.6 V (two AAA batteries) Operating current <7.0 mA Humidity 20%–90% IP rating IP67 Storage temperature -40℃ to 85℃ Operating temperature -25℃ to 65℃...
