TCL Projector A1 Quick Start Manual
Hide thumbs
Also See for Projector A1:
- Quick start manual (18 pages) ,
- Manual (18 pages) ,
- User manual (38 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TCL Projector A1
Summary of Contents for TCL Projector A1

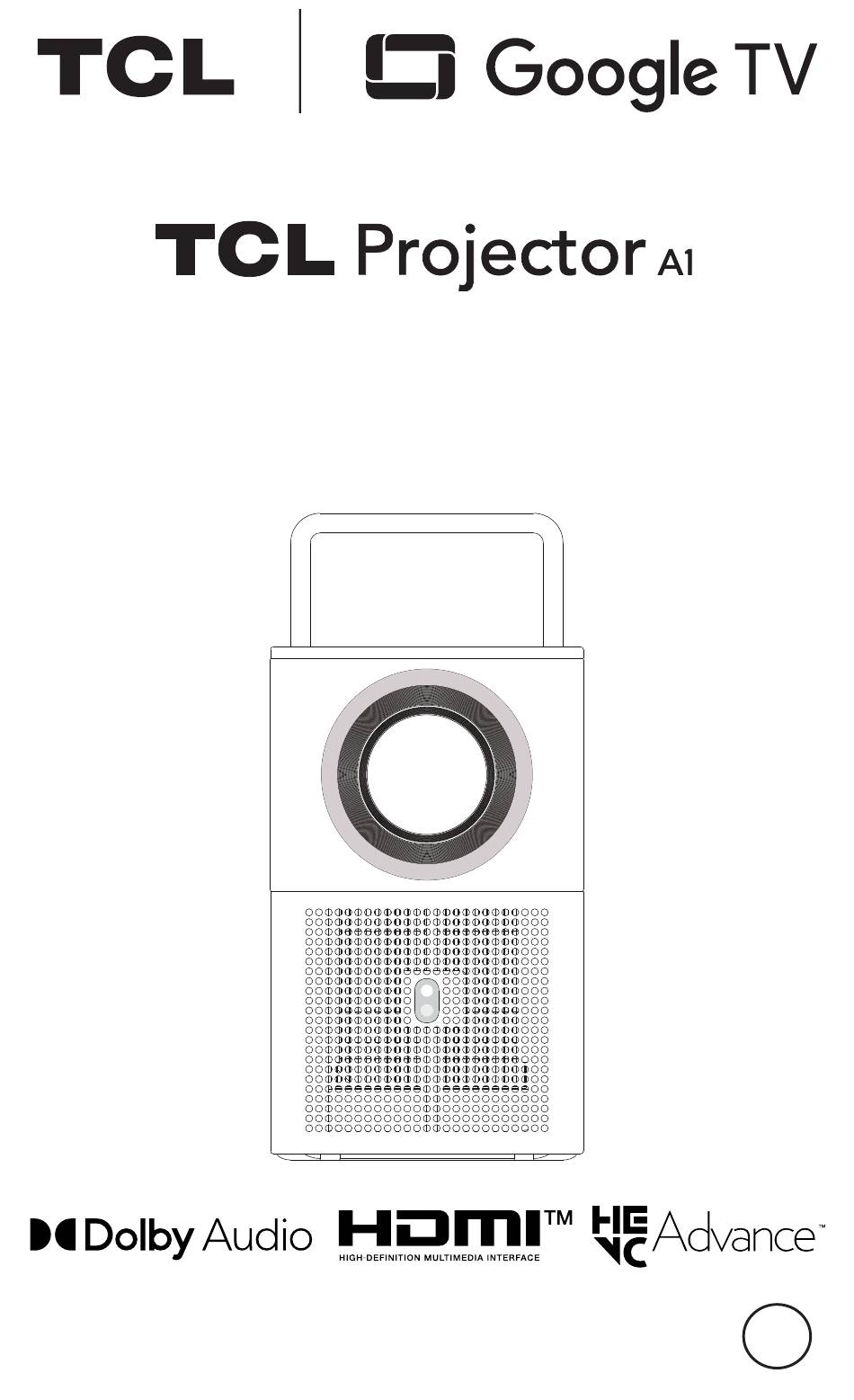

- Page 1 P3801S QUICK START GUIDE HXD401300269...
- Page 2 What's in the box Projector x1 Remote control x1 Power cable x1 : A0 Model No. :K150B1950779E1 版本 KPTEC 机种型号 : K42741 Issue Date :23-01-24 样单号码 发行日期 Size : 150W Series Sheet No. : 8 OF 12 页码 规格 0.0 Appearance Drawing(Unit:mm) 外观尺寸图（单位：毫米）: Quick start guide x1 AAA Batteries x2 Power Adapter x1...
- Page 3 Getting started Projection screen Determine the distance between the projector and the wall or screen according to the desired screen size. Screen Dimensions (SD) Throw Distance (D) 45" 49.60" 50" 54.33" 60" 64.96" 70" 75.59" 80" 86.22" 90" 97.22" 100" 107.87"...
- Page 4 Power up Connect your power cable to the projector, then plug it in to the wall outlet. Power your projector remote by inserting the included batteries. Note: • Pay attention to the positive and negative poles when installing batteries in the remote control. •...
- Page 5 Product Overview Projection Lens Camera Heat dissipation vents Note: • Do not place objects within 8 in near the heat dissipation vents. • Do not place any objects near the vents, as this may cause heat to build up inside the projector. •...
- Page 6 NAVIGATION PAD Back Power Autofocus Confirmation Volume +/- Note: When plugging in the power source for the first time, the power button light will flash for 3 seconds then turn solid. • Touch the power button and all button lights will light up to activate the device.
- Page 7 Remote control Power: Power on/off Input: Select the input source Focus： Adjust the picture clarity Google Assistant: Press the Google Assistant button on your remote to talk to Google Assistant. Dashboard: Access Dashboard panel NAVIGATION PAD: Move up, down, left, or right, then press the middle button to confirm Back: Return to previous screen...
- Page 8 Connectivity DC: Connect your projector to the power source with the included power cable. HDMI: Connect cable box, Blu-ray player, gaming console, or other devices to your projector using HDMI cables. IR Sensor: Remote control signal reception. USB: Connect a USB device to access photos, music, and movies Audio Out: The projector has a built-in speaker that can play audio, you can connect the projector to external self-powered speakers through the Audio Output port.
- Page 9 Dashboard 4. Connect to your wireless network by selecting Dashboard > Settings > WiFi. Now you can enjoy pre-installed apps on your projector. Connect to computer or video device 1. Turn on your computer or video device. 2. Connect one end of an HDMI cable to the projector’s HDMI port and the other end to an HDMI port on your video device or computer.
- Page 10 There are three ways to enable Autofocus on TCL Smart Projector: 1. Turn on Autofocus by going to Settings > Projector > Focus > Auto Focus.
- Page 11 Specifications Name TCL Projector A1 Model P3801S Basic information 191.3*128.1*263.6 mm Dimensions(L*W*H) /75.3*50.4*103.8 in Weight 2.57 KG/5.7 LB Electrical Specifications Power Consumption 150.1 W Resolution 1920 x 1080 Projection ratio 1.25:1 Focus Auto focus Optical Parameters Keystone Omni-directional auto- Correction...
- Page 12 Troubleshooting Fault Solution Turn off the projector and disconnect from the No image power, then plug in the power cord and turn on the projector. • Clean the projector lens with a soft cloth. Image is fuzzy or blurry • Use auto focus or manual focus.
- Page 13 FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 14 1 YEAR LIMITED WARRANTY TCL Technology Holding Limited, offers a 1 year limited warranty on selected TCL devices that are found to be defective in materials or workmanship upon submission of the following items: 1. The warranty card is properly completed and submitted, and including;...
- Page 15 TCL’s 1 Year Limited Warranty will abide by the following options regarding claims: 1. Repair the TCL product using new or previously used parts that are equivalent to new in performance and reliability 2. Replace the TCL product with the same model (or with a product...
- Page 16 General Terms and Conditions of this warranty. Shipping cost of the defective product(s) to TCL authorized repair center is to be paid by the customer. The customer is responsible for any damage to the defective product during shipment to the authorized repair center.
