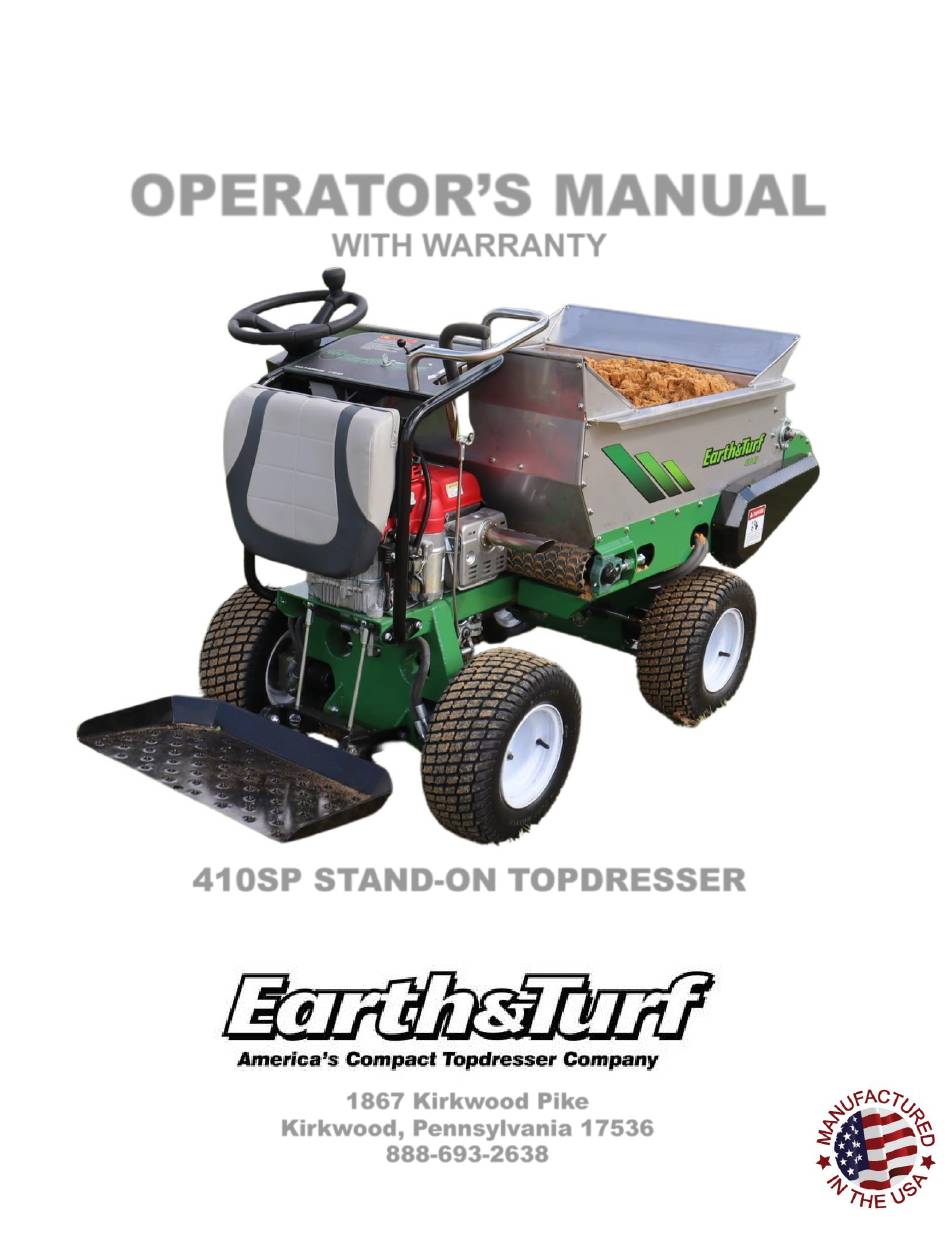

- Page 1 OPERATOR’S MANUAL WITH WARRANTY 410SP STAND-ON TOPDRESSER 1867 Kirkwood Pike Kirkwood, Pennsylvania 17536 888-693-2638...
- Page 2 NOVEMBER 2024...
- Page 3 410SP TABLE OF CONTENTS Safety Precautions ………………………………………………………….03 Transport ……………………………………………………………………….04 Dashboard Layout …………………………………………………………..05 Operating Instructions ……………………………………………………..06 Recommended Daily Maintenance …………………………………….10 Settings and Materials ………………………………………..……………11 Maintenance Guide ………………………………………………………...12 Specifications ………………………………………………….………….…19 Troubleshooting………………………………………………………….…..20 Limited Warranty……………………………………………..………………21...
- Page 4 410SP SAFETY PRECAUTIONS IMPORTANT SAFETY PRECAUTIONS DANGER!! OPERATOR MUST READ BEFORE USING UNIT Read and understand all instructions before operating this machine. If you do not understand any instructions, refer to someone who does. Failure to do so may result in serious injury or death.
- Page 5 410SP TRANSPORT Failure to secure machine may result in serious injury or death. Apply Parking Brake– Once in position on trailer, apply emergency brake. To apply press down with foot on brake pad “P”. (To release, kick the release pad.) Front Tie Down –...
- Page 6 410SP DASHBOARD STEERING WHEEL DIRECTIONAL CONTROL FORWARD/REVERSE HYDRAULIC OIL FILL KEY IGNITION THROTTLE/CHOKE TACHOMETER/HOUR METER SPREADER EMGAGEMENT SWITCH HIP CUSHION...
- Page 7 410SP OPERATION STEERING WHEEL – Steers all 4 wheels in sync for a smooth sharp turn. Operator should take caution and drive slowly to get familiar with 4-wheel steering. The machine will sweep operator station to the side when steering, unlike a front steering machine.
- Page 8 410SP OPERATION ENGAGING THE SPREADER – Flip the toggle switch into the upward position to engage the belt . When toggle is in the upward position, the belt will creep forward as the operator drives forward, then stops when the machine stops. This...
- Page 9 410SP OPERATION – TACHOMETER/HOUR METER Displays the current rpm while running. Displays the total amount of engine running hours when engine is not running. – For access to the engine, Hip Cushion remove the cushion. Remove by pulling up on the cushion assembly. To install, first...
- Page 10 410SP OPERATION Parking Brake – Locks rear wheels for transport on truck/trailer. (Straps are still required for safe transit). Also locks rear wheels to park while reloading, etc. While locked down, driver will not be able to operate forward/reverse due to parking brake lockout.
- Page 11 410SP RECOMMENDED DAILY MAINTENANCE 1. Operators must read before using unit. 2. Entire unit must be washed thoroughly after each use. NEVER store material in spreader 3. Maintain proper air pressure (22psi) in tires to insure proper operation. 4. Lug nuts should be tightened to 120 ft. lbs.
- Page 12 410SP SETTINGS & MATERIAL GUIDE TOPDRESSER All topdressing Materials vary due to moisture, density, and source. Topdressing hopper spreads but is not limited to the following materials. • Sand • Compost • Topsoil (screened) • Crumb rubber • Coconut husks and cork...
- Page 13 410SP MAINTENANCE GUIDE CLEANING YOUR 410SP Cleanout access 1. After each use the machine should be pressure Cleanout hole washed thoroughly. Collected material may access damage moving parts, material belt, and roller hole chains. Refer to video listed on page 10.
- Page 14 410SP MAINTENANCE GUIDE CONVEYOR BELT CHAIN ROUTING EXPELLER BRUSH CHAIN ROUTING 1. Routing 1. Routing: Pre-September 2024 Models 2. Routing: Post-September 2024 Models 2. Guard attachment. Chain lube Bolt opening attachment hole Inside of guard 3. Guard attachment Chain lube...
- Page 15 410SP MAINTENANCE GUIDE FUSE REPLACEMENT 1. One 10 AMP fuse is located under the dash behind the hip cushion. Open fuse holder to replace fuse as needed. GREASING AND LUBRICATING 1. Grease zerk at front axle swivel pin every 50 hours or as needed.
- Page 16 410SP MAINTENANCE GUIDE GREASING AND LUBRICATING 1. Lubricate brush chain through hole in shield every 10 hours of operation. We recommend using an industrial graphite dry lubricant. The shields should be removed after a minimum of every 40 hours of use. Thoroughly clean the...
- Page 17 410SP MAINTENANCE GUIDE CONVEYOR BELT TIGHTENING 1. Use a 15/16” wrench to tighten conveyor or adjust when walking to the side. To tighten belt, loosen lock nut and turn bolt head a precise amount of turns that directionally move the bolt head towards the bearing (tightening towards the back of the machine).
- Page 18 410SP MAINTENANCE GUIDE ENGINE OIL CHANGE 1. Engine oil should be changed after the first 20 3. Oil fill tube can be found on the right side of hours or 1 month. After first oil change the the engine. To fill engine with new oil, use a engine oil should be changed every 100 hours funnel to prevent spillage.
- Page 19 410SP MAINTENANCE GUIDE HYDRAULIC FLUID CHANGE 1. Hydraulic oil should be changed after the first 50 hours, then again, every 250 hours of use or annually, whichever comes first. Drain current Hydraulic oil into oil drain pan with 5-gallon capacity.
- Page 20 410SP SPECIFICATIONS Capacity: 8 cu. ft. struck level Max Load Weight: 800 lbs. (362.87 kg) 30.25” (76.84 cm) Box Width: 38.5” (97.79 cm) Box Length: 42” 12” (30.48 cm) Box Height: 35” (88.90 cm) Total Width: 82 ” (208.28 cm) Total Length: 47.5”...
- Page 21 410SP TROUBLE SHOOTING ❑ Engine won’t start? ➢ Check battery voltage and attempt jump start. ➢ Check wiring and connections to ensure all fittings are tight and not hindered. ➢ Check gas valve on left side of engine to verify the gas valve is on.
- Page 22 410SP WARRANTY LIMITED WARRANTY Earth & Turf Products, a DBA of Conestoga Manufacturing warrants to the original purchaser, all Earth & Turf products, manufactured by it, to be free from defects in both material and workmanship under normal use and service. Earth & Turf Products, obligation under this warranty shall be limited to replacement or repair of...
- Page 24 1867 Kirkwood Pike Kirkwood, Pennsylvania 17536 888-693-2638...
