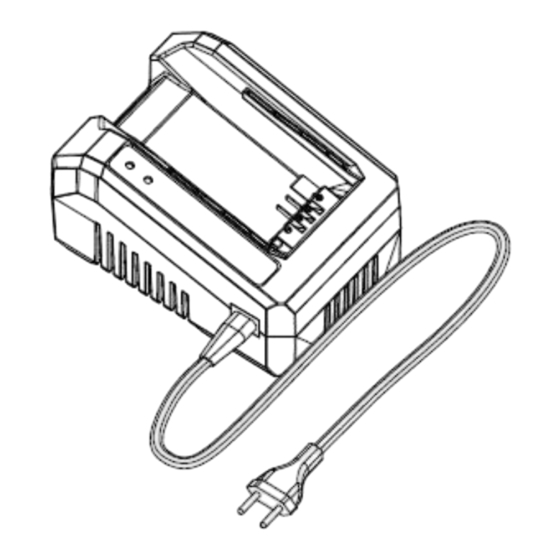

58 volt battery charger for use with zombi 58 volt lithium battery pack
Hide thumbs Also See for ZBCH5817:

Advertisement

Available languages

Available languages

Quick Links

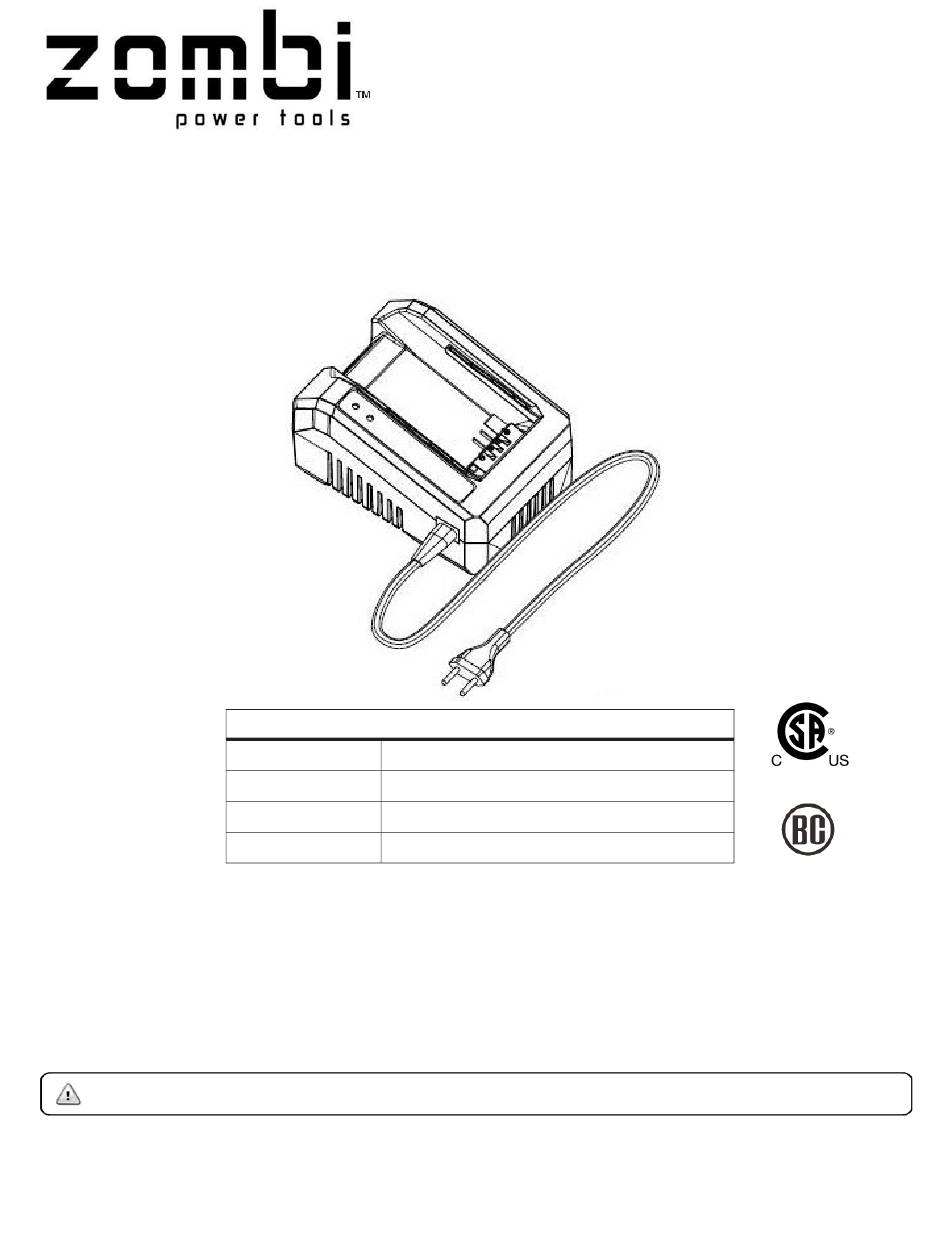

OPERATOR'S MANUAL
Model ZBCH5817
58 Volt Battery Charger for use with
ZOMBI™ 58 VOLT LITHIUM Battery Pack
THANK YOU FOR PURCHASING AN ZOMBI™ LITHIUM BATTERY CHARGER.
Your new battery charger has been engineered and manufactured to our high standard for dependability, ease of
operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PARTS, SERVICE QUESTIONS?
CALL 1-800-313-5111 BETWEEN
CAUTION: Carefully read through this entire operator's manual before using your new battery charger.
Pay close attention to the Rules for Safe Operation, Warnings, and Cautions. If you use your battery charger properly
and only for what it is intended, you will enjoy years of safe, reliable service.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Input
Charging Voltage
Charging Current
Net Weight
8:00
AM—5:00 PM EST FOR ASSISTANCE.
SPECIFICATIONS:
120 Volts, 60 Hz, 1.5 Amperes, AC Only
CA Compliant charger included, model No. ZBCH5817.
244026
58 Volt
2 Amperes
1.79 Lbs
