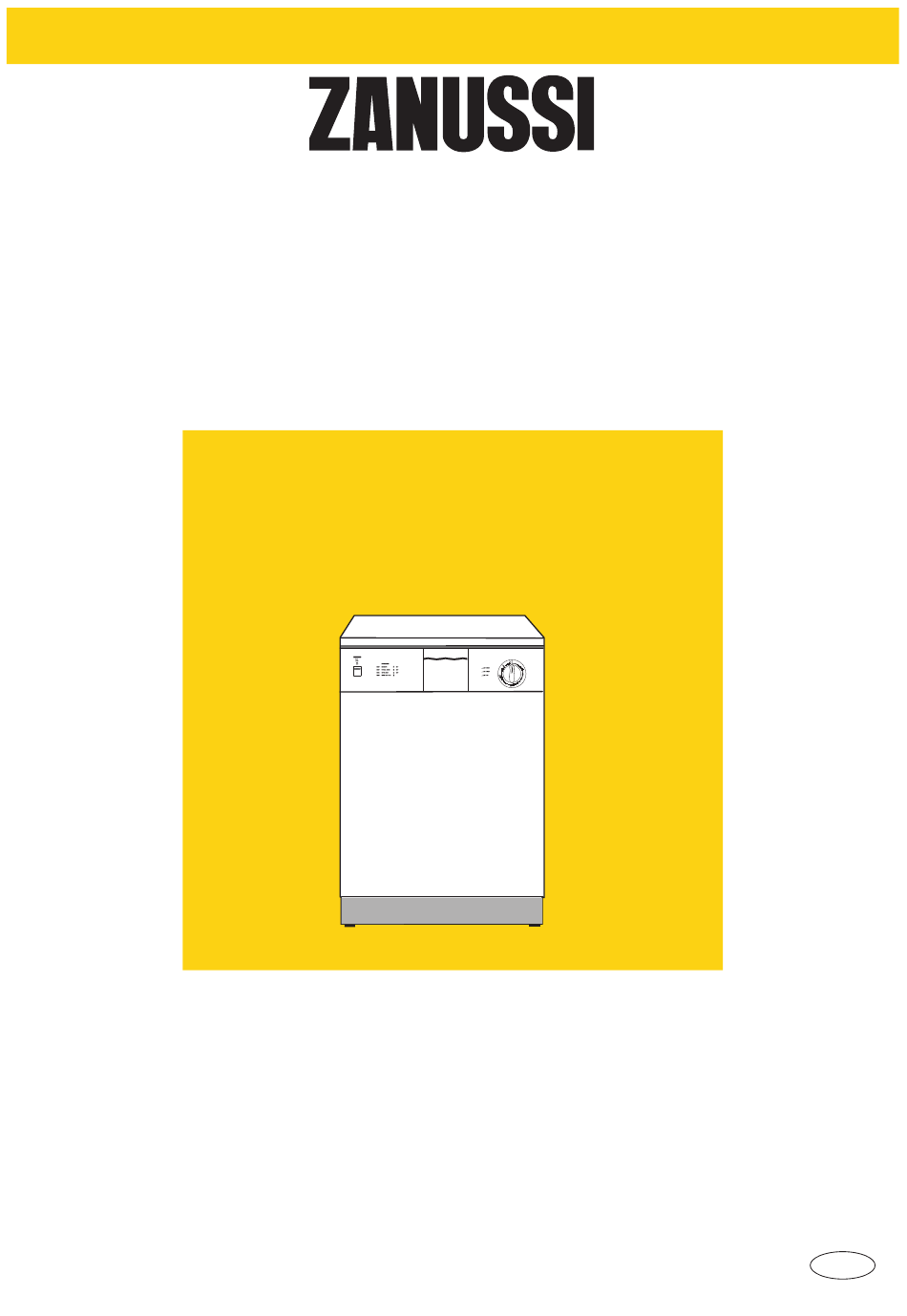

- Page 1 DISHWASHER DW 907 INSTRUCTION BOOKLET 152988 86/0...
- Page 2 Contents For the user For the installer Installation instruction Important safety information Technical specifications Description of the appliance Water supply connections Water outlet connection The control panel Electrical connection Before use Adjusting the worktop Setting the water softener Installing and securing the machine Rinse aid under a kitchen unit Use of detergent...
- Page 3 Important safety information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.
- Page 4 Description of the appliance IN62 1. Water hardness adjustment 10. Heating element 2. Levelling spacers 11. Central filters 3. Upper basket stop 12. Large filter 4. Salt container 13. Upper spray arm 5. Lower spray arm 14. Upper basket 15. Water inlet funnel 6.
- Page 5 The control panel 1. On/Off indicator light 5. Phase indicator guide 2. On/Off pushbutton 6. Programme selector dial To select a programme, turn the programme selector By depressing this button the machine starts dial clockwise, making sure that the programme letter operating, at the same time the On/Off indicator light you wish to select corresponds with the programme illuminates.
- Page 6 Before use Before using your dishwasher for the first time: 1. ensure that the electrical and water connections comply with the installation instructions 2. remove all packaging from inside the appliance 3. set the water softener 4. fill the salt container 5.
- Page 7 Filling with salt Salt must be used from level 2 upwards. Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes (not the Rinse and Hold programme).
- Page 8 Rinse aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.
- Page 9 Use of detergent Only use detergents specifically designed for use in dishwashers. We recommend the use of Finish detergents which are available in the following options: Finish Double Action Tablets. Each tablet has the exact amount of detergent required, simply place in the dispenser.
- Page 10 Using your appliance Loading your appliance Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance. Do not load very small items which can fall through the baskets. Open the door and slide out the baskets to load the dishes.
- Page 11 The cutlery basket Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives. Cutlery should be placed in the removable cutlery basket with the handles facing downwards.
- Page 12 The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses; Glasses with long stems can be placed upside down in the raised cup racks. Larger plates (up to 24 cm in diameter) must be loaded in the front part of the upper basket.
- Page 13 Hints and tips To save energy Items not suitable for dishwashers: Place dishes in the machine immediately after every meal and wait until the dishwasher is full before The following items should not be washing. washed in the dishwasher (unless they If necessary run the Rinse and Hold programme (see are sold as dishwasher proof): "Washing Programmes"...
- Page 14 Washing programmes Recommended quantity Starting Required Programme Cycle Degree of soil of detergent position of the pushbuttons description in the on the programmer type of load dispenser lid dispenser Heavy soil. INTENSIVE Cold prewash Crockery, Main wash up to 65°C 25 g 65°...
- Page 15 Operating sequence 1. Check the filters 8. Start the programme Ensure they are clean and properly positioned Depress the On/Off pushbutton. The On/Off (see cleaning instructions). indicator light comes on and the machine will start. 2. Check that there is rinse 9.
- Page 16 Maintenance and cleaning Internal cleaning Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend the use of Finish Dishwasher Cleaner every 3 months or run a 65°C wash without dishes using detergent.
- Page 17 External cleaning Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc..). Prolonged periods of non- operation If you are not using the machine for any period of time you are advised to: 1.
- Page 18 Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or installation a charge will be made even if the appliance is in guarantee.
- Page 19 Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls. Customer Care Department For general enquiries concerning your Zanussi appliance or for further information on Zanussi products please contact our Customer Care Department by letter or telephone as follows: Customer Care Department...
- Page 20 Standard guarantee conditions We, Zanussi, undertake that if within 12 months of the date of purchase this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •...
- Page 21 Installation instructions Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person. Ensure the machine is easily accessible for servicing when installed Technical specifications...
- Page 22 Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a drain. Water supply connections This dishwasher must be plumbed into a cold water supply. The water pressure must be within the limits given in the technical specifications.
- Page 23 Water outlet hose connection The end of the drain hose can be connected in the following ways: 1- To the sink outlet siphon, securing it if necessary with a clip. 2- Hooked over the edge of the sink using the special curved plastic guide provided.
- Page 24 Electrical connection This appliance must be earthed. The manufacturer declines any responsibility should this safety measures not be observed. If the plug that is fitted to your appliance is not suitable for the socket, it must be cut off and the appropriate plug fitted.
- Page 25 Adjusting the worktop You can move the worktop forward or backward by 25 mm in order to align the machine with other kitchen units. Simply unscrew the two front retaining screws, move the top to the required position and then retighten the screws.
- Page 28 0 11/98...
