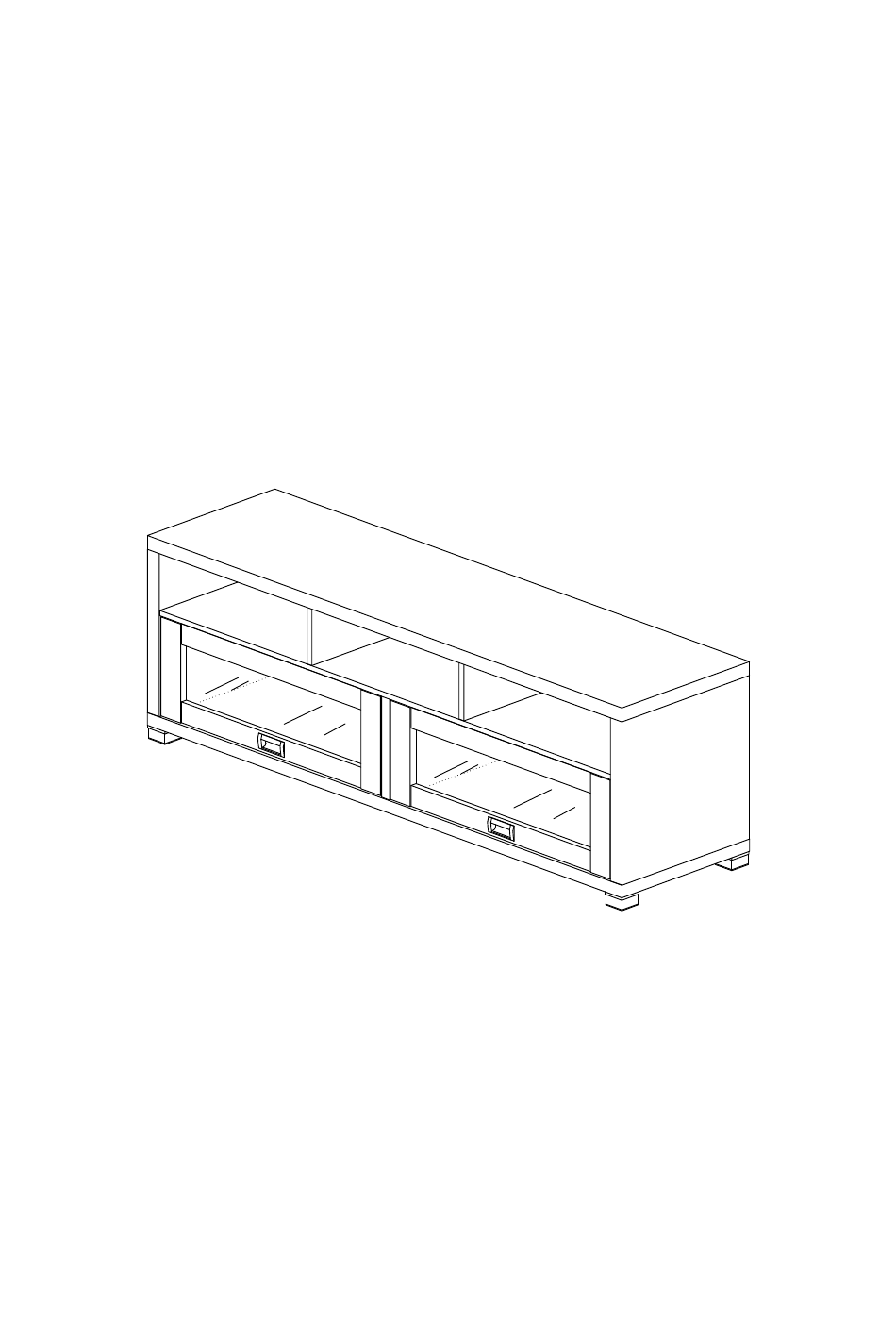

- Page 1 MODERN TV STAND WITH STORAGE MODEL RTA-8850 ASSEMBLY INSTRUCTIONS...
- Page 2 RTA-8850 For Support, assembly questions Replacement Parts for International Do a quick inventory Customers & AK-HI-PR orders: of all the parts and & Replacement Parts within the RTA Products will replace the part free of hardware listed below. 48 Contiguous United States:...
- Page 3 RTA-8850 MAIN PARTS LAYOUT (For reference) ( F r o n t ) ( B a c f t ) ( L e ( B a c ( F r o n t ) g h t ( R i...
- Page 4 RTA-8850 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit is completely assembled. • Please read the assembly instructions throughly and follow step by step.
- Page 5 RTA-8850 ASSEMBLY STEPS NOTES: • The product will start assembling with its front facing down the floor. • Work over carpeting or use blankets to protect the panels' surfaces. STEP 1 This step requires of 2 persons FIRST: Install bolts #2 into...
- Page 6 RTA-8850 STEP 2 FIRST: Install dowels #1 into panel B. This step requires of 2 persons Hardware Ø8x25 Tools (included) THEN: Attach B to F NOTE: B will stay temporarily attached to F with just the dowels. n t )
- Page 7 RTA-8850 STEP 4 FIRST: Attach to the door panels I the pins #6 at This step requires of the top and the magnet screws #9 at the bottom. 2 persons ( T o p Hardware Cam lock ( T h...
- Page 8 RTA-8850 STEP 5 This step requires of FIRST: Install the second door panel I facing 2 persons down and into the groove of panel A. Hardware Cam lock Tools (included) ( h a n d l e f a c e...
- Page 9 RTA-8850 STEP 6 Hardware FIRST: Remove the bottom cap from the plastic feet #8. M3.5x16 ( T o Plastic feet ( B o Magnet t t o m Tools (included) THEN: Attach the plastic feet #8 to the underside of bottom panel E with screws #3 and re-attach their caps.
- Page 10 RTA-8850 STEP 7 This step FIRST: Assemble the bottom panel E requires of to panels A, C and D with screws #4. 2 persons Hardware M6x65 Nails Tools (included) B A C c k ) ( B a K : U...
- Page 11 RTA-8850 P.10 P.10 TIP-OVER WARNING! Always pay close attention to small children playing near the unit or if they are watching TV very close to it to prevent tip-over accidents. WEIGHT LIMITS - DO NOT EXCEEDI 110 Lbs (50 Kg) 40 Lbs (18.1 Kg)
