TPM 106-D422-NNT Quick Start Manual

TPM
Product Type
106-D422-NNT
Screw terminal 16-channel digital input and 16-channel digital output
Specifications
Size: (L124 x W77 x H42 mm)
Series Interface: Half duplex RS-485 with transformer isolation
Cable Type: CAT5 UTP/STP Ethernet Cable
Electrical Surge Protection: 2KV
Transfer Rate: 2.5Mbps, 5Mbps, 10Mbps, 20Mbps
IO Isolation Protection: Photocoupler Isolation 3750Vrms
Input Impedance: 5.6KΩ/0.5W. Input Current: ±5mA (Max)
Output Types: NPN open collector with Darlington transistors
Switch Capacity: each output channel is 350mA/channel maximum at 24V DC
Response Time: On to Off about 50μs, Off to On about 8μs
Over Current Protection: 3A (max) for each port (8-channel)
Input Voltage: +18V DC ~ +30V DC
Power Consumption: 3W typical
Working Temperature: 0 ~ 60°C

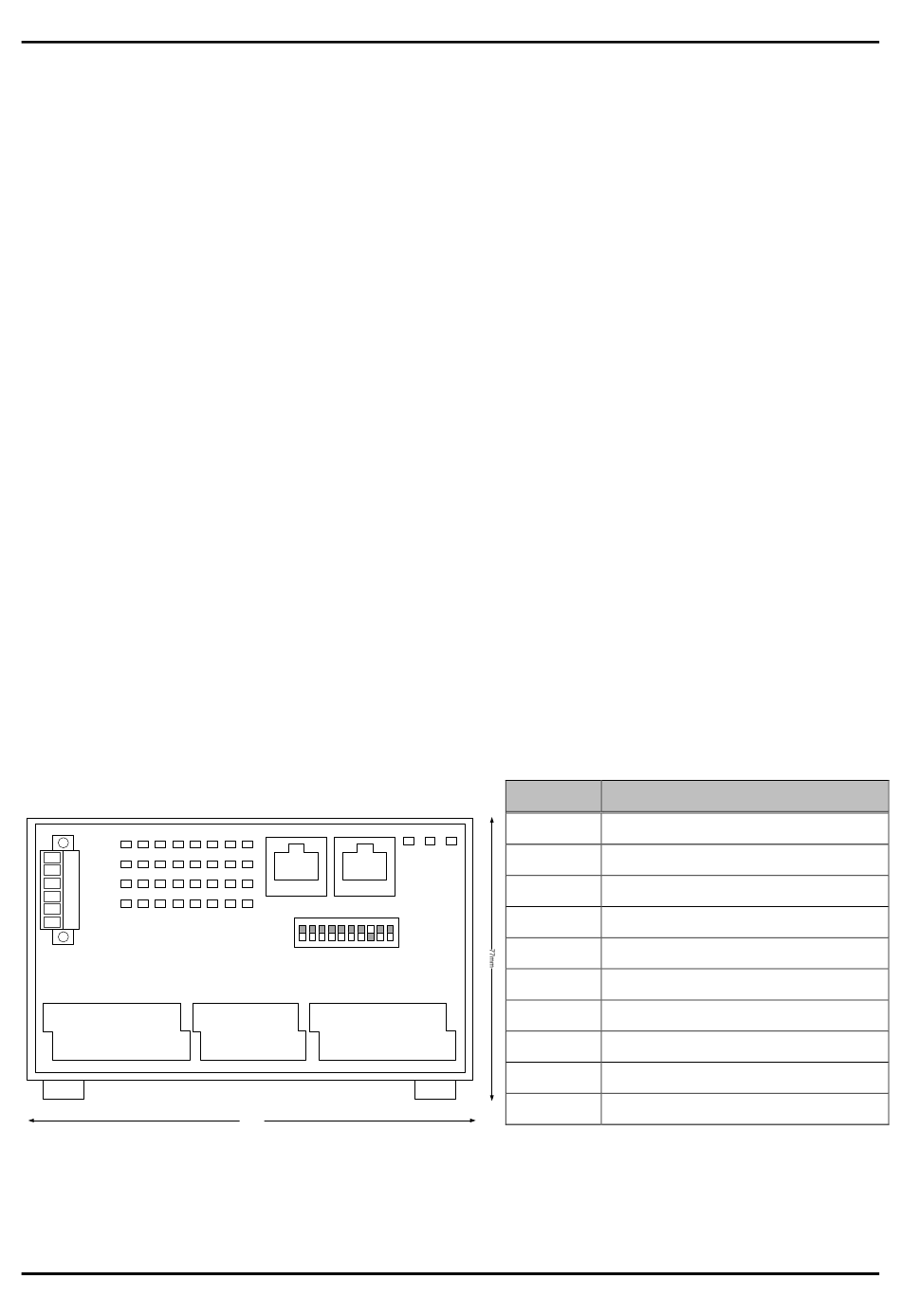

IO interface
CN5
CN1
Date 20240408
CN4 CN3
RUN ERR PWR
SW301
CN6 CN2
124mm
Product quick start guide
Label
CN1 Input I/O terminal
CN2 Output I/O terminal
CN3 Motionnet communication Interface
CN4 Motionnet communication interface
CN5 Power source
CN6 Power output terminal
S301 Device configuration switch
RUN Communication active indicator
ERR Communication error indicator
PWR DC power indicator
Function
1
