Summary of Contents for AVPro Edge AC-EX70-UHD-BR
- Page 1 AC-CXWP-HDMO-BKT AC-CXWP-HDMO-BKT Single Gang, HDMI Wall plate Page 1...

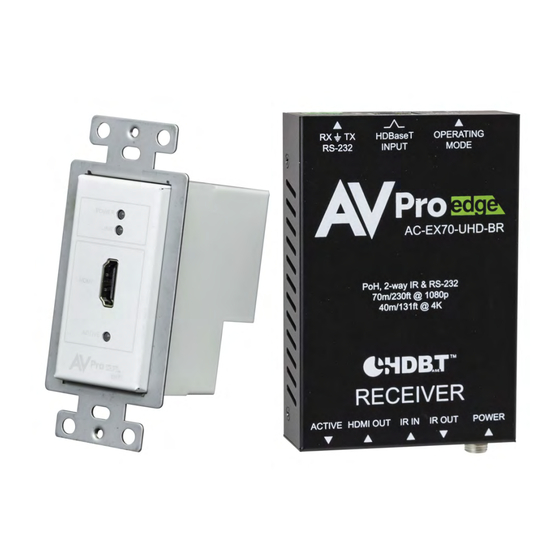

- Page 2 This basic HDBaseT wall plate transmitter/receiver kit is a cost effective HDMI extension product from AVPro Edge’s ConferX line of products. Able to handle 4k at 10.2 Gbps, this single gang wall plate transmitter fits in any standard mud ring and works with standard category cable to deliver a stable signal long distances.
- Page 3 AC-CXWP-HDMO-BKT Page 3...
- Page 4 (AC-CXWP-HDMO-T) with AC-EX70-UHD-BR HDBaseT Receiver to power the wall plate transmitter from afar using PoE, thus eliminating the need for a power supply unit near the wall plate. HDBaseT IN (RJ45) & Status Lights...
-
Page 5: Connection Diagram
HDCP 2.2 & Earlier Supported • 70M (230ft) on 1080P, Up to 40m (131ft) on 4K (Cat6a) • No Local Power Necessary (Powered by AC-EX70-UHD-BR) • Single Gang, Low heat, Straight in rear RJ45 receptacle design. • Rugged, long-life chassis •... - Page 6 There are 2 ways to power the unit: 1. Use a HDBaseT Receiver that provides up stream power. This kit comes with the AC-EX70-UHD-BR. 2. If you will be using the unit directly into a NON PoE Provider (AVR, Projector, Display, or other HDBaseT receiver), you can power it using a 5V MINI USB Type power supply.
-
Page 7: Mounting Options
AC-CXWP-HDMO-BKT Mounting Options ■ The AC-CXWP-HDMO-T has seemingly limitless mounting options. While it comes with the metal bracket to affix it to any Single or multi-gang Decora wall plate. The unique design with "Straight In" CAT RJ45 receptacle allows for unique mounting positions and low heat allows for side by side configurations. - Page 8 AC-CXWP-HDMO-BKT Sample Mounting Options ■ Multiple units: Due to the low heat design & straight in RJ45 receptacle, you can position up to 4 units together in a single wall box or mud ring. Allowing you to manage multiple display zones in a large hall, or you can route the signals to a matrix for even more control.
- Page 9 AC-CXWP-HDMO-BKT Sample Mounting Options ■ Podium: Mount in a podium or desk for convenient content sharing from the instructor/presenter. Page 9...
- Page 10 AC-CXWP-HDMO-T AC-CXWP-HDMO-BKT Notice AVProEdge reserves all the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this device to 6.
-
Page 11: Maintenance
AC-CXWP-HDMO-BKT Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 12: Warranty
AC-CXWP-HDMO-BKT Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •... - Page 13 AC-CXWP-HDMO-BKT Page 13...
- Page 14 AC-CXWP-HDMO-BKT Page 14...
- Page 15 AC-CXWP-HDMO-BKT Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! A V P r o E d g e 2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e .
