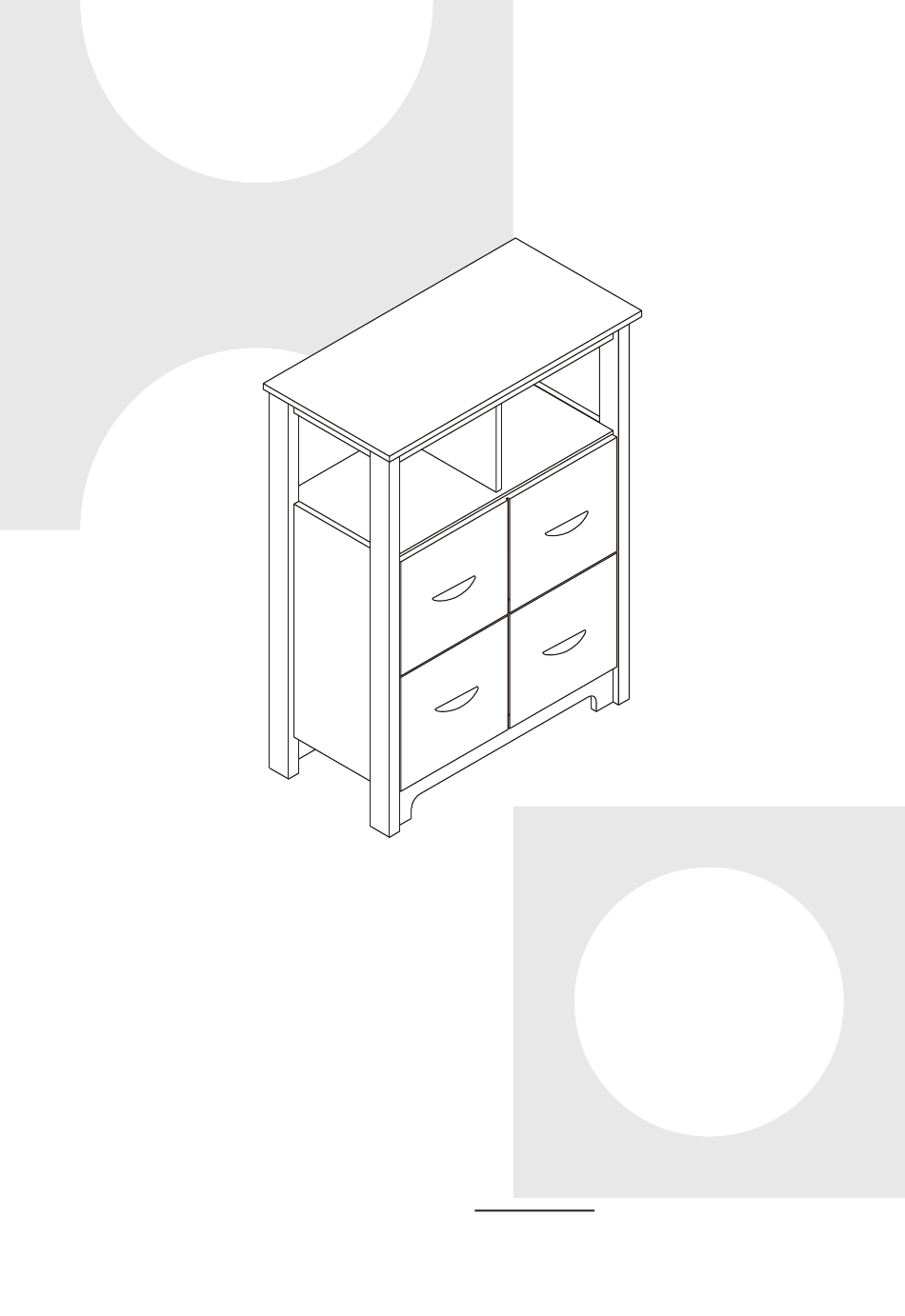

- Page 1 Storage Cabinet Armoire de Rangement JV12191 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Page 4 PARTS LIST / LISTE DES PIÈCES Centre Horizontal Panel Top Panel Centre Vertical Panel /Panneau /Panneau supérieur /Panneau vertical central horizontal central 1 x1 2 x1 3 x1 Top Front Top Back Bottom Front Horizontal Panel Horizontal Panel Horizontal Panel /Panneau horizontal /Panneau horizontal /Panneau horizontal...
- Page 5 Drawer Box Support Drawer Bottom Side Panel L /Support du Tiroir /Fond du tiroir /Panneau latéral gauche 13 x2 14 x2 15 x1 Side Panel R /Panneau latéral droit 16 x1 HARDWARE LIST / LISTE DES ACCESSOIRES M3.5 X 25MM M3 X 12MM x20(+2) Handle...
- Page 6 M3 X 16MM M4 X 32MM x10(+1) Flat Head Flat Head Chipboard Chipboard Screw /Vis à tête plate pour /Vis à tête plate pour panneaux de particules panneaux de particules 250MM D15MM X 9.8MM x34(+1) x2 sets Extension Slide Minifix Fastener Connector /Glissière d'extension /Connecteur de fixation Minifix...
- Page 7 Read this instruction carefully. Remove all wrapping material, staples and straps from the carton. See hardware and furniture part list for guidance. Be sure you have all wooden furniture part on a clean and a flat surface, such as carpet or rug, to prevent from being scratched. Lisez attentivement ces instructions.
- Page 8 X 34 X 12...
- Page 11 X 10...
- Page 13 X 10...
- Page 15 REAR VIEW /VUE ARRIÈRE...
- Page 16 16-1 REAR VIEW / VUE ARRIÈRE Attach a bracket securely to the back top rail of the cabinet using short screw provided, through the smaller hole. /Fixez solidement un support au rail supérieur arrière de l'armoire à l'aide de la vis courte fournie, à travers le plus petit trou.
- Page 17 16-2 WALL /MUR Locate the other bracket on the wall over a wall stud and two inches below the mounting bracket secured to the back of cabinet. Attached to the wall stud using the long screw provided, through the smaller hole. /Placez l'autre support sur le mur, au-dessus d'un montant mural et deux pouces en dessous du support de montage fixé...
- Page 18 16-3 WALL /MUR Place the cabinet into position so both mounting brackets are vertically in line. Lace the end of the restraint strap through the larger hole in each mounting bracket. Bring both ends together and slide the flat end through the locking end and draw it through until all slack is removed.
- Page 19 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 20 AUS office: Truganina FRA office: Saint Vigor d'Ymonville GBR office: FDS Corporation Limited,Unit 4, Blackacre Road, Great Blakenham,Ipswich, Ip6 0FL,United Kingdom USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com GBR:cs.uk@costway.com customer team is always here to help. FRA:cs.f r @costway.com...
