Introduction
The ultra-high density 3732 matrix card is comprised of four banks, each with 4 rows by 28 columns of reed
relays. This provides 448 single-pole crosspoints for maximum connection versatility in high channel count
applications. For even greater flexibility, bank configuration relays are mounted on the card. They offer an
automated method of connecting banks to enable two additional matrix configurations: Single 4×112 and dual
4×56. This feature allows the matrix size to be easily adapted to existing or future applications. For differential
(2-wire) measurements, you can select two-pole mode, which enables automatic pairing of crosspoints to create
a dual 4×28 or single 4×56 configuration. For larger matrix sizes, analog backplane relays are provided that
enable rows to connect to the Series 3700A mainframe backplane. This allows, for example, a matrix of up to 4
rows by 672 columns within a single 3706A mainframe using six 3732 cards.

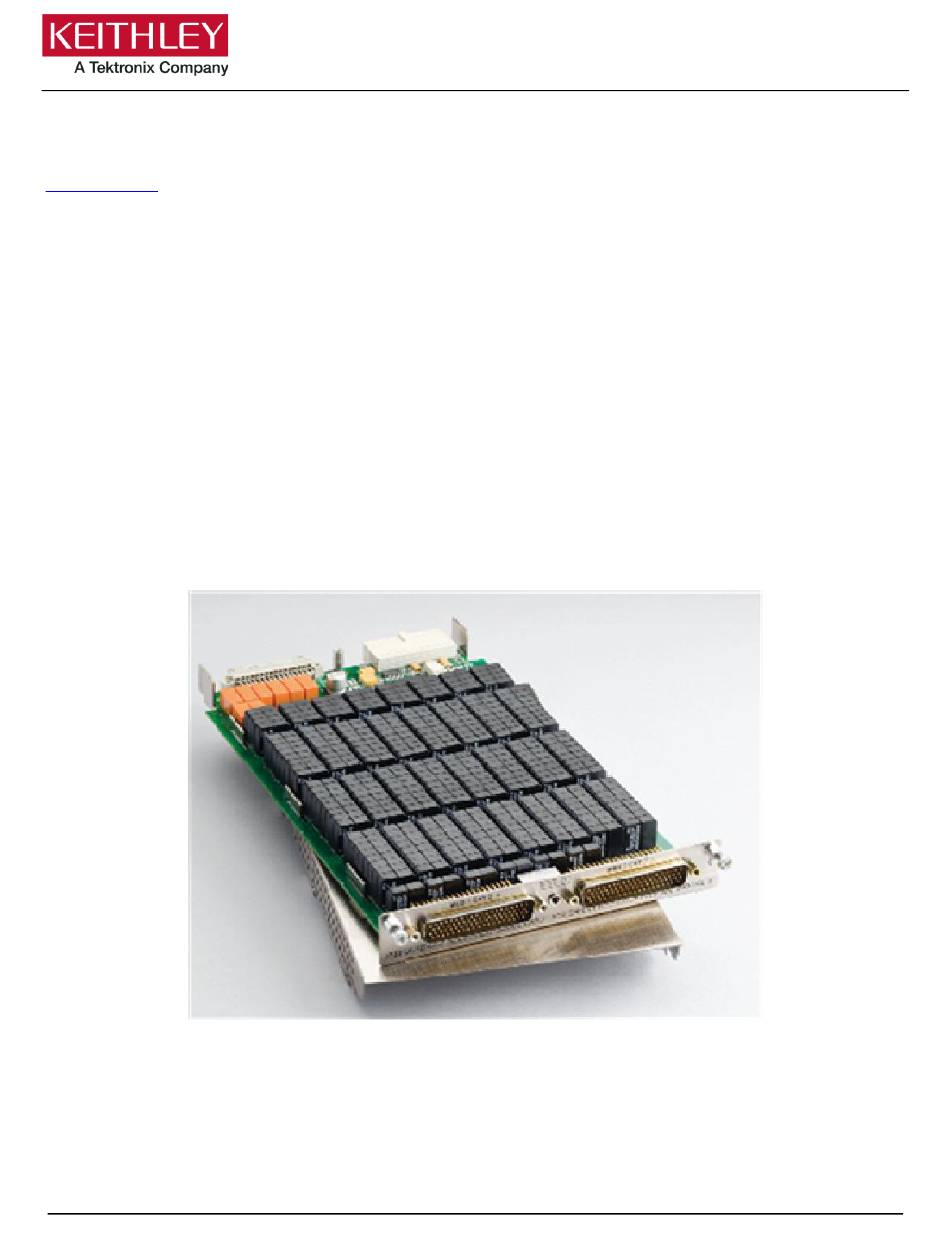

The 3732 card is shown in the following figure.
Item shipped may vary from model pictured here.
077184000 October 2024
Model 3732 Quad 4×28 Reed Relay Card
Figure 1: Model 3732 Quad 4x28 Reed Relay Matrix Card
*P077184000*
