- Page 1 User Manual SPK1-C880T-WH 8" 2-Way Ceiling Speaker, 70/100V and 8Ohm, 80W RMS All Rights Reserved Version: SPK1-C880T_2024V1.1...
- Page 2 2.1. Technical Specifications ..............................2 2.2. SPL Frequency chart ................................2 3. Defining the SPK1-C880T-WH ............................... 3 4. Installation ...................................... 3 5. Environment and recycling information ............................4 5.1. Disposal of electric and electronic devices EC Directive 2012/19/EU ................. 4 5.2.

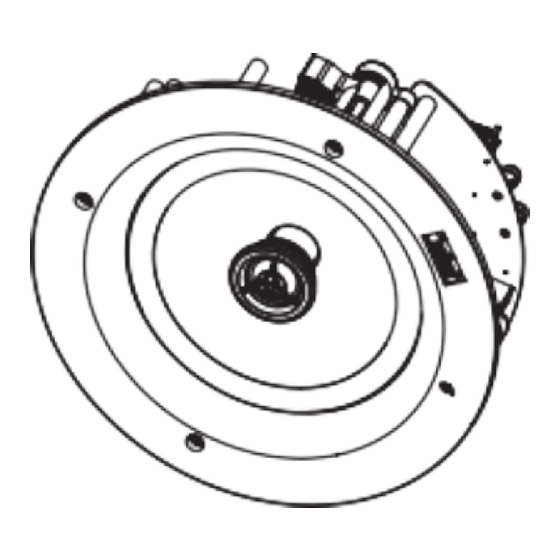

- Page 3 1. Product Introduction The TiGHT AV SPK1-C880T-WH comprises an 8-inch polypropene cone and a 0.75-inch titanium pivot dome tweeter, making it a full-range coaxial ceiling speaker. It offers both 70V/100V and low impedance operation modes. Additionally, this ceiling speaker is equipped with user-friendly screw clamps "dog-legs"...
- Page 4 8" 2-Way Ceiling Speaker, 70/100V and 8Ohm, 80W RMS 2. Specifications 2.1. Technical Specifications RMS Power Impedance 8 Ω (in low-impedance setting) Sensitivity(1m/1W) 90dB Max SPL (1m) 109dB (low-impedance)* Frequency Range (-10dB) 50Hz-20kHz Coverage 120º Woofer Type 8" Polypropylene cone with rubber edge Tweeter Type 0.75"(20mm) Titanium pivoting dome tweeter Crossover Slope...
- Page 5 8" 2-Way Ceiling Speaker, 70/100V and 8Ohm, 80W RMS 3. Defining the SPK1-C880T-WH ①. Speaker connector. Easy “snap and lock” connector. 1. LOOP +, 2. IN +, 3. IN -, 4. LOOP - ②. Speaker settings knob. ③. Screw Clamps.
- Page 6 ③ Connect speaker cable 8" 2-Way Ceiling Speaker, 70/100V and 8Ohm, 80W RMS Ensure that the amplifier is not connected or turned off before connecting speaker cables. Pull the speaker cable out of the hole which you have cut and connect it to the speaker. Connect speaker wire. ④...
- Page 7 8" 2-Way Ceiling Speaker, 70/100V and 8Ohm, 80W RMS Note: This manual is recycled as paper (mixed paper and card).
