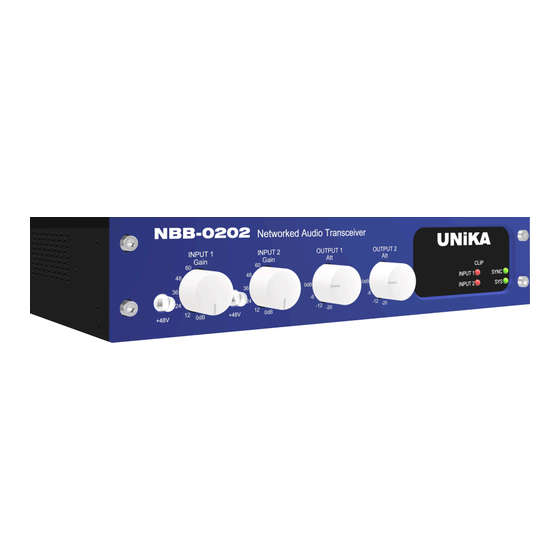

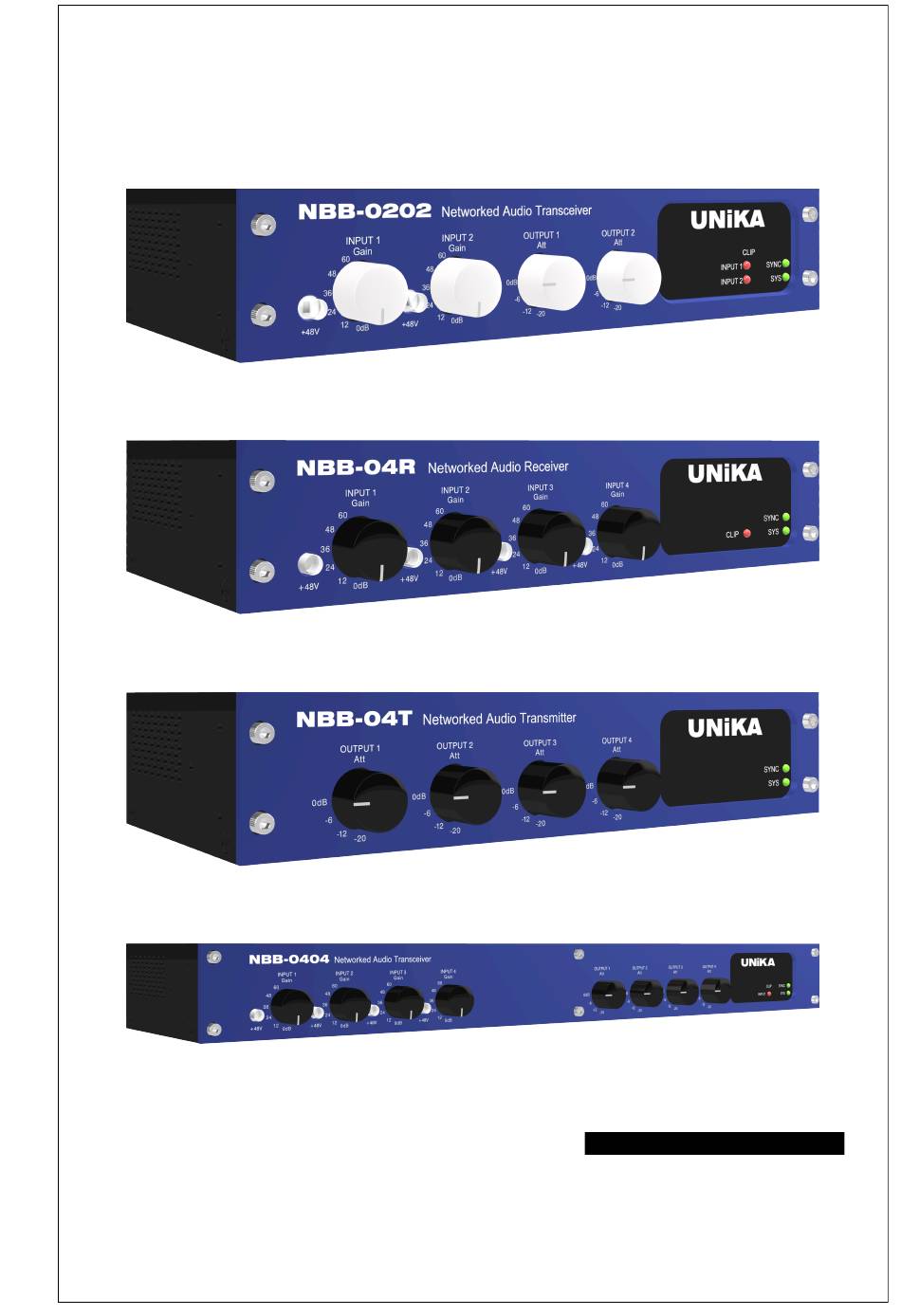

- Page 1 NBB-0202 / NBB-04R / NBB-04T / NBB-0404 Networked Audio Receiver / Transmitter UNiKA Electronic Co., Ltd. www.unika.com.tw 6F, No.168, XinHu 2nd Road, NeiHu Dist., Taipei 11494, Taiwan (R.O.C.) ☏ +886-2-27933017 ✉ unika@unika.com.tw 10/15/2024...
- Page 2 Dante network. The NBB Series products come with the following variation, Model Description Sample Rate NBB-0202 Audio Transceiver audio receiver of 2CH and audio transmitter of 2CH 48KHz or 96KHz NBB-04R Audio Receiver audio receiver of 4CH 48KHz or 96KHz...
- Page 3 Description: The NBB Series Products adopt Audinate Dante networking technology for audio transceiving, and are very network friendly with unlimited flexibility in topology of deployment. The NBB Series Products support up to Layer 3 of IEEE 802.3 network standard, enabling you to organize your audio network with the on-the-shelf Ethernet switches or to immediately transport streaming audio by taking advantage of your existing installed network facility with no hassle.
- Page 4 The functionality and operation princle of all the buttons, knobs, sockets, and indicators among of all the NBB Series Products are exactly the same, but in slightly different layout arrangement. Here the example of NBB-0202 are took for the operation description. Powering...
- Page 5 All the routing assignments and device configuration are set via Dante Controller software which is available free from the following Dante webpage, www.getdante.com/products/software-essentials/dante-controller Besides the routing assignments, mostly, you should set the operating sample rate of your NBB Series Products to align with the sample rate of your whole Dante network. Basically, all the devices in the same Dante network should be synced to the same sample rate.
- Page 6 Rear Panel There are two Ethernet ports for Dante networking and control setting. The two Ethernet ports actually belongs to the two physical ports in the internal mini switch in NBB Series Products. This network switch capability allows several NBB Series Productss to be cascaded in the same Ethernet link for network expanding.
- Page 7 Ethernet switch in between. Since all UNiKA Dante-enabled devices actually have a mini switch built-in, you are also able to cascade several of your devices in the same link by taking advantage of the two RJ-45 ports on your UNiKA Dante-enabled devices.
- Page 9 Specifications: Model NBB-0202 NBB-04R NBB-04T NBB-0404 Input: Channel Capacity (Analog) Output: Combo Combo Combo Input: XLR/TRS XLR/TRS XLR/TRS Audio Connectors (Analog) Output: Level (Analog) 24dBu max. Clip Indicator 2x for each Input 1x for all Inputs 1x for all Inputs...
- Page 10 This warranty will only apply to products purchased from a legal UNiKA distributor or dealer, partner etc. This warranty will be effective from the serial number and initial date of purchase and will be valid for the warranty periods detailed as distributor’s sales and service document.
