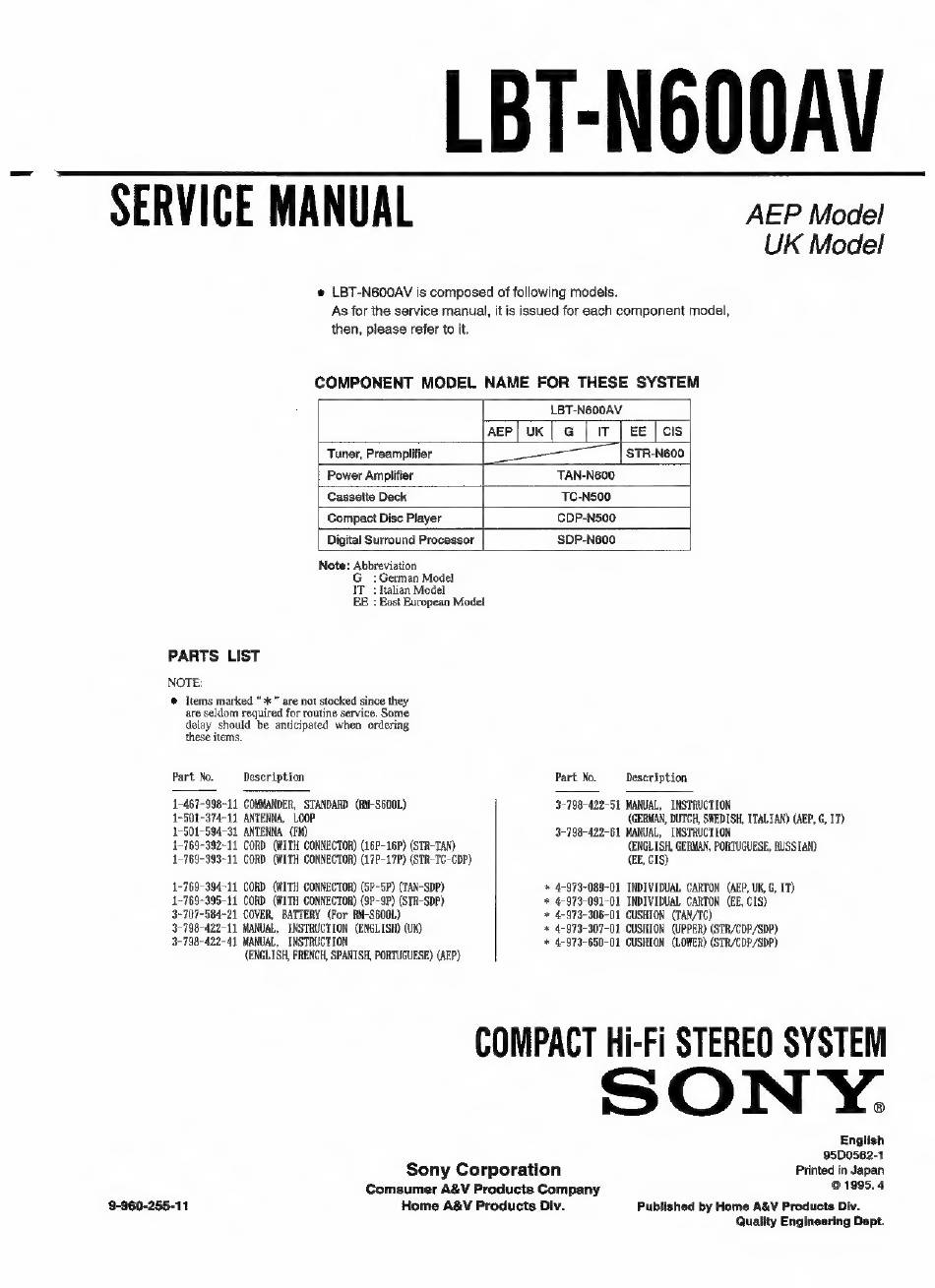

Sony LBT-N600AV Service Manual

LBT-N600AV
SERVICE MANUAL
LBT-N600AV is composed of following models.
As for the service manual, it is issued for each component model,
then, please refer to it.
AEP Model
UK Model
COMPONENT MODEL NAME FOR THESE SYSTEM
LBT-N6O0AV
AeP] uk | G | iT | EE [cis
Tuner, Preamplifier STR-N60O
Power Amplifier TAN-N600
Cassette Deck TC-N500
Compact Disc Player CDP-N500
Digital Surround Processor 'SDP-N600
Note: Abbreviation
: German Model
IT! Italian Model
EE : East European Model
PARTS LIST
NOTE:
Items marked "" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
Part No. Description Part No. Description
1-467-998-11 COMMANDER, STANDARD (RM-S6OOL)
1-501-374-11 ANTENNA, LOOP
1-501-594-31 ANTENNA (FM)
1-763-392-11 CORD (WITH CONNECTOR) (16P-16P) (STR-TAN)
1-769-393-11 CORD (WITH CONNECTOR) (17P-17P) (STR-TG-CDP)
1-769-394-11 CORD (WITH CONNECTOR) (5P-5P) (TAN-SDP)
1-769-395-11 CORD (WITH CONNECTOR) (9P-9P) (STR-SDP)
3-707-584-21 COVER, BATTERY (For RM-S600L)
3-798-422-11 MANUAL, INSTRUCTION (ENGLISH) (UK)
3-798-422-41 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH, PORTUGUESE) (AEP)
+
*
*
*
3-798-422-51 MANUAL, INSTRUCTION
(GERMAN, DUTCH, SWEDISH, ITALIAN) (AEP, G, I)
3-798-422-61 MANUAL, INSTRUCTION
(ENGLISH, GERMAN, PORTUGUESE, RUSSIAN)
(EE, CIS)
4-973-089-01 INDIVIDUAL CARTON (AEP, UK, G, IT)
4-973-091-01 INDIVIDUAL CARTON (EE, CIS)
4-973-306-01 CUSHION (TAN/TC)
4-973-307-01 CUSHION (UPPER) (STR/CDP/SDP)
4-973-650-01 CUSHION (LOWER) (STR/CDP/SDP)
COMPACT Hi-Fi STEREO SYSTEM
English
95D0562-1
Printed in Japan
© 1995. 4
Published by Home A&V Products Div.
Quality Engineering Dept.
Sony Corporation
Comsumer A&V Products Company
9-960-255-11 Home A&V Products Div.
