Table des matières
1. Technical specifications ................................................................................................................... 2
2. Pack contents ............................................................................................................................... 2
3. Description .................................................................................................................................. 2
3.1. iOs / Android applications ...................................................................................................... 3
3.2. Automatic treatment - RedOx regulation ..................................................................................... 3
4. Installing the Daisy VP OX .............................................................................................................. 4
4.1. Wall mounted installation ...................................................................................................... 4
4.2. Hydraulic connection ............................................................................................................ 4
4.3. Connection to electricity ........................................................................................................ 5
5. Connecting to Ofix VP .................................................................................................................... 6
6. Appliance configuration ................................................................................................................... 7
6.1. Control interface ................................................................................................................. 7
6.2. Powering on ....................................................................................................................... 7
6.3. Choice of the Vigipool ''central unit'' appliance ............................................................................. 8
6.4. Pump priming ..................................................................................................................... 8
6.5. Additional parameters that can be set from the smartphone app: ......................................................... 9
7. Appliance operation ...................................................................................................................... 10
7.1. Data timer and non active injection: ........................................................................................ 10
7.2. Selecting the set point value .................................................................................................. 10
7.3. Measured value display ........................................................................................................ 11
A. Declaration of conformity ............................................................................................................. 12
Read these instructions carefully before installing, commissioning and using this product.
MPNT0520 v1.0EN (13/05/2022)
OPERATING INSTRUCTIONS

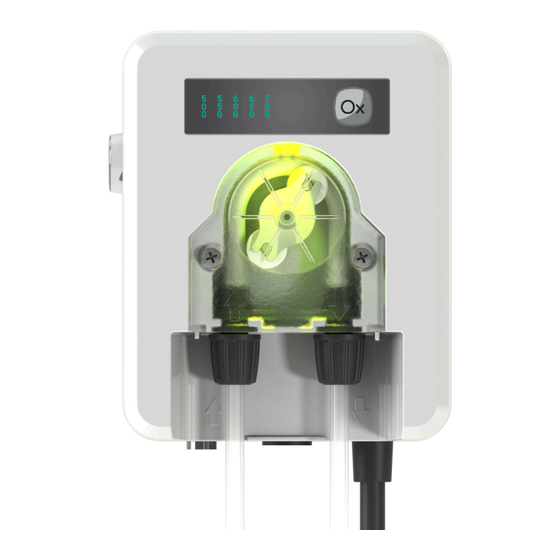

Daisy VP OX
Slaved luminous Chlorine regulation
PF10J054
Advertisement
Summary of Contents for ccei Vigipool Daisy VP OX
- Page 1 OPERATING INSTRUCTIONS Daisy VP OX Slaved luminous Chlorine regulation PF10J054 Table des matières 1. Technical specifications ........................2 2. Pack contents ..........................2 3. Description ..........................2 3.1. iOs / Android applications ...................... 3 3.2. Automatic treatment - RedOx regulation ..................3 4.
- Page 2 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 1. Technical specifications Dimensions 130 x 102 x 65 Power supply voltage 230 V~ AC 50Hz Power consumption 230W Max - 1A Weight 700 g (Pump only) Protection rating IP-54 Dosing pump Peristaltic Flow rate from 0 to 1.5 l/h 2.
- Page 3 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 3.1. iOs / Android applications Android download App Store download You can also search for Vigipool using the App Store and Play Store search engines 3.2. Automatic treatment - RedOx regulation Daisy VP OX measures the RedOx potential and injects an oxidising product into the pool water until the RedOx potential falls below the set threshold.
- Page 4 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 4. Installing the Daisy VP OX 4.1. Wall mounted installation For safety reasons, and in accordance with the French NF C15-100 standard, the Daisy VP OX control box must be installed • either at over 3.50 m from the pool edge. This distance takes into account the distance around obstacles.
- Page 5 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 4.3. Connection to electricity Installation of this project involves a hazard of electric shocks. We strongly recommend you contract a professional installer. Incorrect installation puts you in danger and may irreversibly damage the product and the equipment connected to it. For safety reasons, and in accordance with the French NF C15-100 standard, the Daisy VP OX control box must be installed •...
- Page 6 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 5. Connecting to Ofix VP The Daisy VP dosing pump must be connected to an Ofix VP connected analyser to retrieve the measurement data, and be configured in the smartphone app. When the appliance is switched on, the LED indicators flash to indicate that the appliance is looking for the Vigipool ''central unit'' to connect to.
- Page 7 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 6. Appliance configuration Daisy VP OX configuration in the Vigipool smartphone app available for iOS and Android. The automatic RedOx regulation is configured directly in the Vigipool smartphone app, available for iOS and Android, or on the appliance.
- Page 8 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 6.3. Choice of the Vigipool ''central unit'' appliance Please refer to the attached ''Vigipool World'' page for more information At the end of the initialisation phase, the multi-colour LED (C) flashes white. This corresponds to the choice of the appliance that will perform the Vigipool ''central unit'' function (see attached specific ''Vigipool World'' page): •...
- Page 9 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 6.5. Additional parameters that can be set from the smartphone app: 6.5.1. Winterisation mode The app can be used to activate winterisation mode. As long as winterisation mode is active: • Product injection is stopped •...
- Page 10 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 7. Appliance operation 7.1. Data timer and non active injection: A hysteresis of ±50mV is provided for to prevent oscillation around the set point value. Injection may be blocked due to several causes despite a measured value that is different from the set point: •...
- Page 11 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS 7.3. Measured value display The 5 light indicators on the front display the measured ORP value (here 600mV). If the ORP is between two graduations, the LED for the previous graduation remains steady (here 600mV), the LED below or above it depending on how the ORP is read, flashes slowly.
- Page 12 Daisy VP OX v1.0EN OPERATING INSTRUCTIONS A. Declaration of conformity Bleu Electrique SAS (FR47403521693) declares that the Daisy VP OX product meets the safety and electromagnetic compatibility requirements of European directives 2014/35/EU and 2014/30/EU. Emmanuel Baret Marseille, on 13/05/2022 Distributor's stamp Date of sale: .
