Summary of Contents for blackbox-av Mediascreen 4K 43

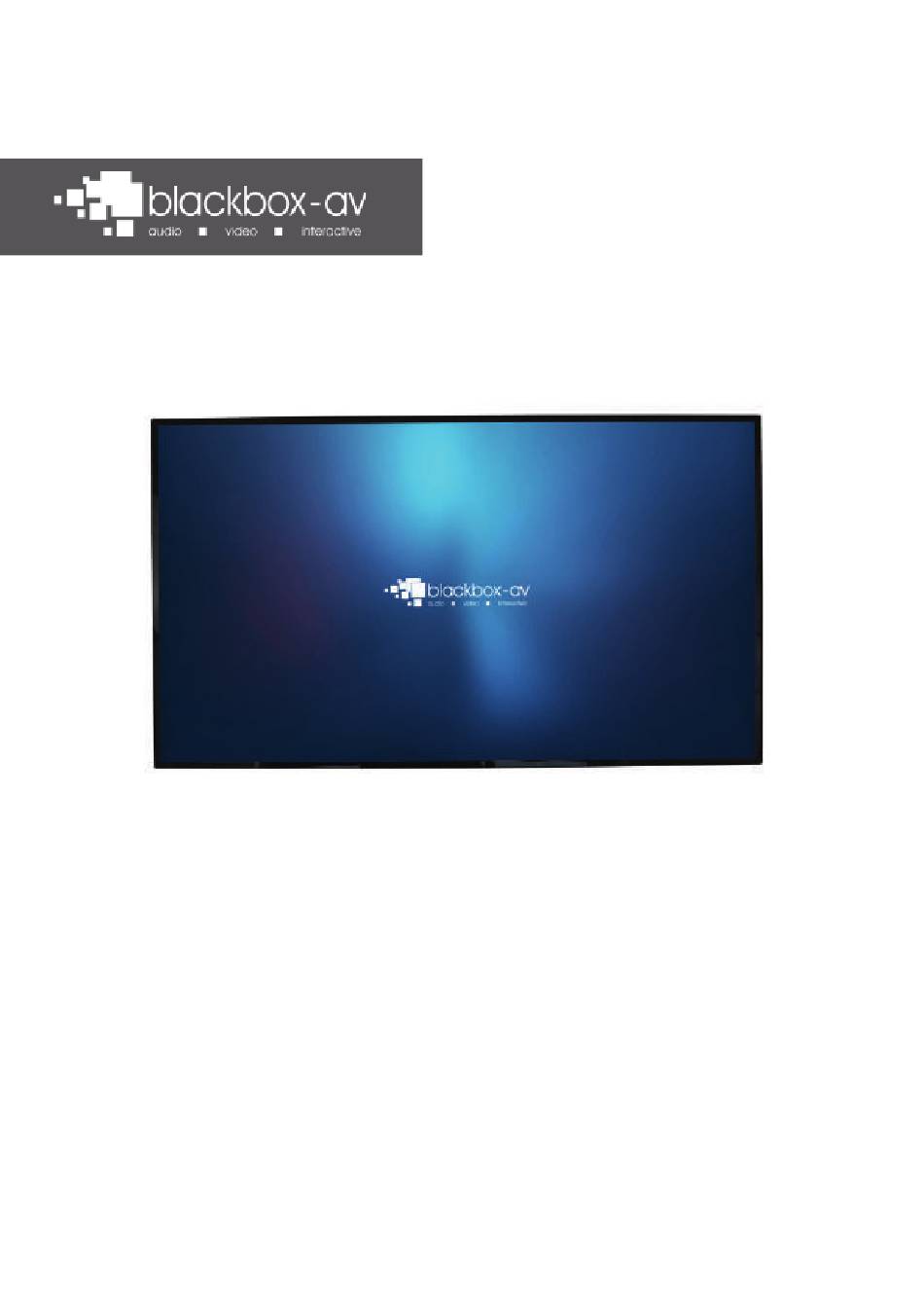

- Page 1 Mediascreen 4K Manual...
-
Page 2: Warranty
Screws and Bracket 4 x screws and a Bracket for installation of the Mediascreen to a wall or flat surface. This comes pre-installed. Warranty Blackbox-av provides a 12 month warranty with this product. For further information or advice please contact info@blackboxav.co.uk www.interpretationshop.co.uk... - Page 3 Content Installation - Accessing USB Ports Lockable Enclosure The enclosure is located at the bottom of the screen and can be opened / locked with the keys provided. USB Inputs Inside the screen you will find a range of I/O ports including 2 x USB slots.
-
Page 4: Importing Content
Content Installation - Uploading Content All inputs are located behind a locked compartment on the underside of the unit. To the left of this compartment you will find the power socket and power on / off switch. The Mediascreen is set-up to automatically loop content upon boot. It will arrive with Demo Con- tent installed (unless you have made your content available to us). - Page 5 Importing Content (cont.) 7) Select ‘Editor’ from the top menu and then select ‘Paste’ to copy your file. 8) Repeat until all files required have been copied from USB. 9) Delete files from the ‘Content’ folder that you no longer need. Long press OK on the file and select ‘Delete’.
- Page 6 Switching Launch Device The MediaScreen will automatically play content from the onboard HDD. You are able to utilise external media players via the HDMI input and the onboard ‘HDMI-IN’ application. To launch into and use an external media player via this app you will need to do the following; Switching to HDMI-IN.
-
Page 7: Technical Information
Technical Information Panel Size 43” / 55” - 16:19 Dimensions 43” – 67.75 x 963.50 x 551.80mm (LxWxH) (mm) 55” – 67.75 x 1235.70 x 708.20mm 3840 x 2160 Max Resolution 43” – 939.8 x 527.5mm Display Area (mm) 55” – 1210.1 x 680.5mm 300cd/m2 LED Brightness 16.7 M... -
Page 8: Line Drawings
Line Drawings 43“ (Drawings not to scale) - Page 9 Line Drawings 55“ (Drawings not to scale)
