DIAMOND

MAINTENANCE MANUAL

Table of Contents

Need help?

Do you have a question about the DIAMOND and is the answer not in the manual?

Questions and answers

Summary of Contents for tediselmedical DIAMOND

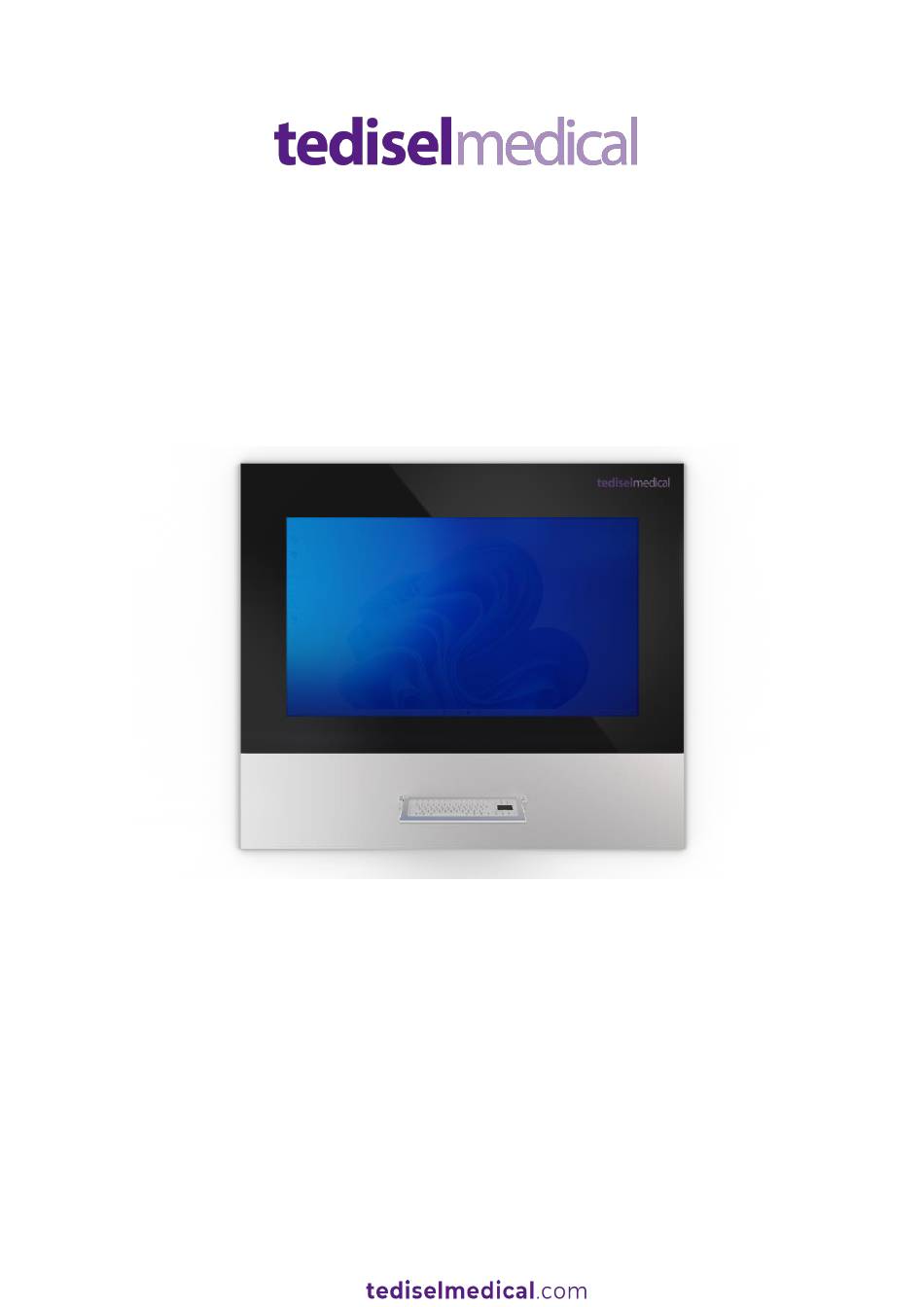

Page 1 DIAMOND MAINTENANCE MANUAL...
Page 2: Table Of Contents
Content Manufacturer ........................3 Security information ......................3 2.1. Injury risk warnings ..................... 3 2.2. Warnings of risk of damage ..................3 2.3. Supplementary symbols used in the safety instructions ..........4 2.4. Patient environment ....................4 Risks ............................. 5 3.1.
Page 3: Manufacturer
Tel. +34 933 992 058 Fax +34 933 984 547 tedisel@tedisel.com www.tediselmedical.com 2. Security information Important notes in these operating instructions are marked with graphic symbols and signal words. Signal words such as DANGER, WARNING or CAUTION describe the degree of risk of injury. The different triangular symbols visually emphasise the degree of danger.
Page 4: Supplementary Symbols Used In The Safety Instructions
Damage to surfaces: warns of damage to surfaces due to unsuitable cleaning agents and disinfectants. NOTICE Refers to a potential hazard which, if not avoided, may cause damage to the equipment. 2.3. Supplementary symbols used in the safety instructions Dangerous voltage: warns about electric shocks that can cause serious injury or death. The dimensions in the figure below illustrate the minimum extent of the patient environment in an unrestricted area according to IEC 60601-1.
Page 5: Risks
3. Risks CAUTION: If the ball retainers are not properly engaged in their respective holders, the front glass may open if it is pulled. WARNING: If the fasteners of the individual parts of the system are not correctly positioned or if the tightening torques of the fasteners are not observed, the system may come loose from its fastenings and fall down when the glass front is removed.
Page 6 Operating instructions Waste electrical equipment CE symbol Product code Serial number Manufacturer Date of manufacture Reference to the instruction manual Damage to surfaces Dangerous tension NOTICE Notice Risk of finger entrapment INF-222-EN 6 of 22...
Page 7: Product Data
Weight and Dimensions of the packaging with the Equipment: Weight of packaging with Dimensions of packaging Model Equipment included (Kg) approx. (W x H x D) (mm) Diamond M 1060 x 880 x 230 Diamond M+ 1060 x 1210 x 230 Diamond M++ 1060 x 1540 x 230...
Page 8: Operating Conditions
Atmospheric pressure: 700 hPa to 1,060 hPa The useful life of DIAMOND family is determined by the useful life on the Monitor it incorporates, which is 100.000 hours. The Diamond family offers modular technical panel solutions that optimize surgical environments through the integration of advanced technologies.
Page 9 1. Centralized Visualization and Control: The Diamond system can be configured as a central station for visualization and control. Equipped with a large-format monitor and a computer (PC), it allows for centralized management and monitoring of surgical processes. This configuration is compatible with PACS (Picture Archiving and Communication System), nursing stations, and surgical management software, providing integrated and efficient access to critical information.
Page 10: Maintenance
Fig. 2 General Diamond parts Personnel performing maintenance must be trained and qualified by the customer. Persons who: 1. Have received the training and are duly registered (at those levels where legal provisions make such registration necessary). 2. Have been instructed in the maintenance of this device by means of this instruction manual as a basis.
Page 11: Opening The Lower Aluminium Panel
CAUTION: Since the box is not yet secured to the wall opening, it is important to ensure that when you open the glass, you do not pull the entire unit out, which could cause it to fall. Fig. 3 Opening the Front Glass The glass will be unlocked and opened when the ball retainer ①...
Page 12 Fig. 5 Lower panel opening sequence 1. Open the front glass ① with the suction cup ② as described in the previous point. 2. Remove the countersunk screws ③ securing the lower panel to the structure. 3. Once all the screws have been removed, lift the lower panel ④ upwards, just a little, and then pull it outwards when it is released.
Page 13: Remove The Upper Aluminium Panel
CAUTION: Never remove the upper aluminium panel while the front glass is open. On models with an aluminium top panel (+ models), the removal of the front panel is done in 2 simple steps: Fig. 6 Removal of top aluminium panel 1.
Page 14 • Cable check: You should check the cables that connect the equipment to the power supply and the PC for damage and proper connection. If you find any damaged cables, they should be replaced immediately. It is recommended that the equipment be electrically disconnected before servicing, by disconnecting all upstream protections of the installation.
Page 15: Inspection Plan
Periodicity: Verify the control buttons are functioning properly on a monthly basis. • Ball retainer check: The ball retainers that hold the glass front panel to the aluminum box should be checked periodically to ensure that they are secure and functioning properly. If any problems are detected with the ball retainers, a qualified technician should be contacted to resolve them.
Page 16 panel (optional) Front glass Every six Damage or signs of Visual inspection months scratches Cable check Annually Damage and proper Visual inspection Replace damaged connection of cables cables immediately Software At least once a Software updates and Software update Update software and verification month functionality...
Page 17: Cleaning
7. Cleaning Approved disinfectant products that meet the necessary requirements for cleaning and disinfecting surfaces in healthcare settings should be used. The requirements to consider are: • The disinfectant product should be effective against a broad range of microorganisms, including viruses, bacteria, and fungi. •...
Page 18: Reference Standards
Guidance and Manufacturer´s Declaration – Electromagnetic emissions Emissions test Compliance Electromagnetic environment - guidance DEVICE doesn’t use RF energy RF Emissions Group 1 CISPR 11 characteristics of this EMISSIONS Internal box with IP20 protection level according to IEC 60529 − Glass front with IP65 protection level according to IEC 60529 (Does not apply to + models) Equipment intended for continuous operation.
Page 19 RF emissions Class A equipment make it suitable for use CISPR 11 in industrial areas and hospitals (CISPR 11 class A). If it is used in a residential environment (for which CISPR 11 class B is normally required) this equipment might not offer adequate protection to radio- frequency communication services.
Page 20 NOTE 1 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people Fields strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast, and TV broadcast, cannot be predicted theoretically with accuracy.
Page 21 that of a typical business environment or hospital. Surges ± 1 kV line-to-line The quality of the IEC 61000-4-5 mains ± 2 kV line-to-ground supply network should that of a typical business environment or hospital. Voltage dips, short <5% UT The quality of the interruptions and (>...
Page 22 power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies NOTE These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people INF-222-EN 22 of 22...
