Summary of Contents for protech 2PETCH101

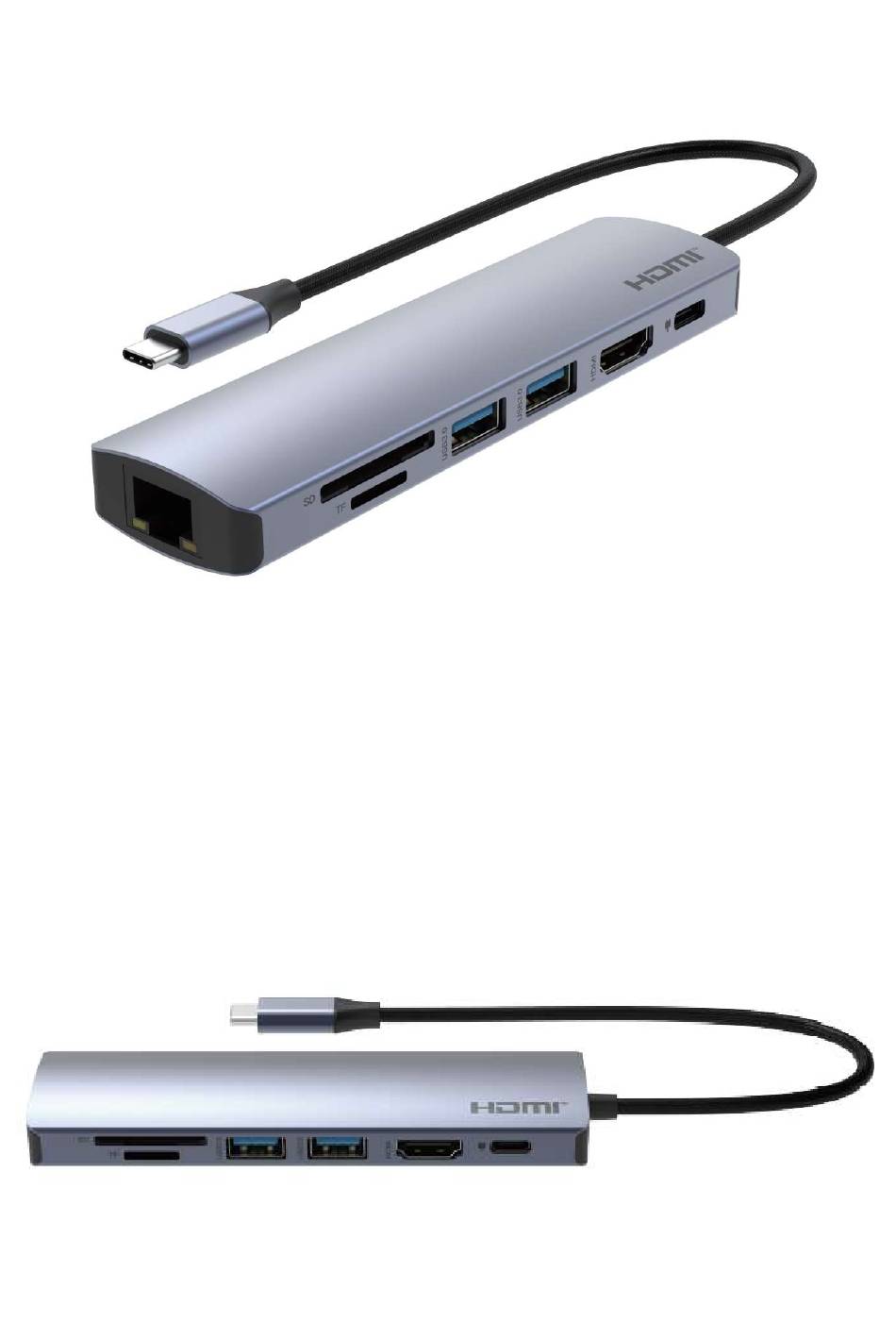

- Page 1 USB-C Adapter Quick Start Guide What’s included Main Unit...
- Page 2 Ports and Interfaces 1. USB-C Male: Connect to the USB-C Enable Laptop/Notebook with Audio Video Output 2. RJ45 Port: Gigabit (1000M) Ethernet port 3. TF (Micro-SD)/SD Card Slot: Connect to the TF (Micro-SD)/SD Card 4. USB 3.0: USB-A port to connect the USB 3.0 standard device 5.
- Page 3 Connection Diagram Introduction This USB 3.1 Type-C™ to HDMI™ + 2 x USB 3.0 +TF(Micro-SD)3.0+ SD3.0 +1000M RJ45 + PD 3.0 adapter 4K@60Hz 4:4:4 lets you output HDMI™ video and audio and connecting two USB 3.0 devices, SD and TF card, one RJ45 Gigabit(1000M) Ethernet port with power deliver function up to PD 3.0 100W from a USB 3.1 Type-C™...
- Page 4 This USB 3.1 Type-C™ video adapter is highly portable with lightweight design, perfect accessory for your MacBook, MacBook Pro, Lenovo YOGA or ChromeBook Pixel™, fitting easily into your laptop bag or carrying case. Note: Your USB-C™ equipped device must support video to work with this adapter. Features * Supports UHD video resolutions up to 4K@60Hz 4:4:4 for single display * Supports two USB 3.0 port up to 5Gbps data transmission with 5V 0.9A power supply capacity...
- Page 5 User Manual English Version Note: Specifications are subject to change without notice. Troubleshooting Problems Causes Solutions Maybe resolution Please change the notebook beyond the display supports or output resolution to a lower cable connection is not fitting resolution and check the cable well connection condition Can`t...
