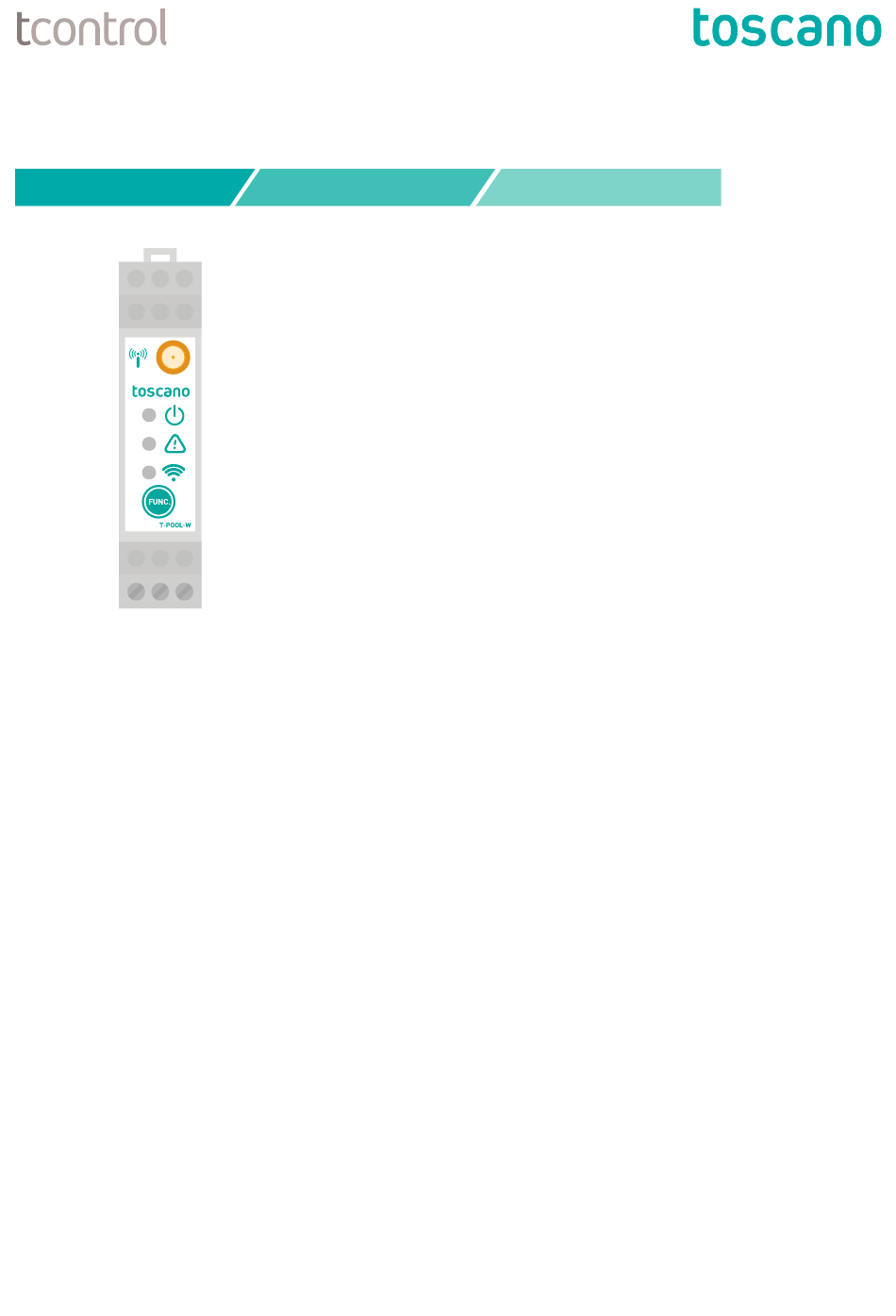

- Page 1 TPOOL-W Ed. 1.23 ENGLISH ( EN ) User Manual WiFi communication device for TPM-POOL devices and ECO-POOL panels...
- Page 2 CONTENTS ENGLISH (EN) 1. DESCRIPTION ..................... 4 2. CONNECTION ...................... 4 3. USAGE ......................... 5 4. INTERFACE APP TPOOL-W ................7 5. ALARMS ......................8 6. RESET ........................9 7. MISCELLANEOUS ....................9 8. TECHNICAL CHARACTERISTICS ..............10 Installation must be performed by an electrician. It is essential to read this technical manual before proceeding.
- Page 3 WARNING: Additional pump motor protection can be added when required during installation. WARNING: If the equipment is used or modified outside of what is specified by the manufacturer, Toscano disclaims all responsibility for improper use. The interior of the equipment should only be handled by our technical service personnel.
- Page 4 1. DESCRIPTION The TPOOL-W device is a WiFi communication device with RJ11 connector, designed to be used with TPM-POOL and ECO-POOL panels. Status LED on/off Status LED Internet or TPM-POOL WiFi/Internet connection failure LED Button with different functions 2. CONNECTION To connect to the TPM7-POOL RJ11 module, use the RJ connector...
- Page 5 3. USAGE 3.1. INSTALLING AND STARTING THE APP Download the “TPOOL-W” App Toscano Android app iOS App Email Email Register to start using Passwor T-Pool-W Register Configure WiFi Passwor Once the App is installed, the home screen appears. Click on “Register” if you are not yet registered. Fill in all fi elds and tap on “Submit”.
- Page 6 Registro de usuario tpool wifi offline Add device 192.168.4.1 TOSCANO Email 2. Device registration Welcome to the WiFi module TOSCANO a) Go back to the APP, Add device and configuration wizard...
- Page 7 4. INTERFACE APP TPOOL-W Connection status Operating Tpool wifi Confi guration temperature Debugger alarm / reset Pump manual Automatic pump control control Automatic lighting control Manual lighting control Color change Device name Tpool wifi Pump Confi guration Program 1 Program 2 Lighting Program...
- Page 8 4.1. CONFIGURATION Device name Configure my Tpool wifi account Alarms Share device Edit name Disconnect device Manual Device ID Log out and exit 5. ALARMS There are alarms in the TPOOL-W related to WiFi/Internet. ● Not connected to the Router The LED flashes continuously there is no WiFi connection, in this case it may be due to: - First connection.
- Page 9 6. RESET Factory reset This reset will remove the device from the database and erase the connection to the router. Hold down the FUNC button with the equipment switched off, switch on the device, the WiFi LED flashes until it connects to the WiFi network, turning the LED to fixed. It is important that it connects to the Internet.
- Page 10 8. TECHNICAL CHARACTERISTICS Power supply 100/240 VAC 50/60Hz power consumption 250 mA máx. Measures (mm) 90 x 65 x 18 mm (Length x Width x Depth) Weight 150 g Antena External, 2 metres of cable Wi-Fi 2,4 GHz band 802.11b/g/n...
- Page 11 NOTES...
- Page 12 Toscano Línea Electrónica, S.L. Av. A-92, Km. 6,5 - 41500 - Alcalá de Guadaíra - SEVILLA - SPAIN (+34) 954 999 900 - www.toscano.es - info@toscano.es...
