LIGHTING

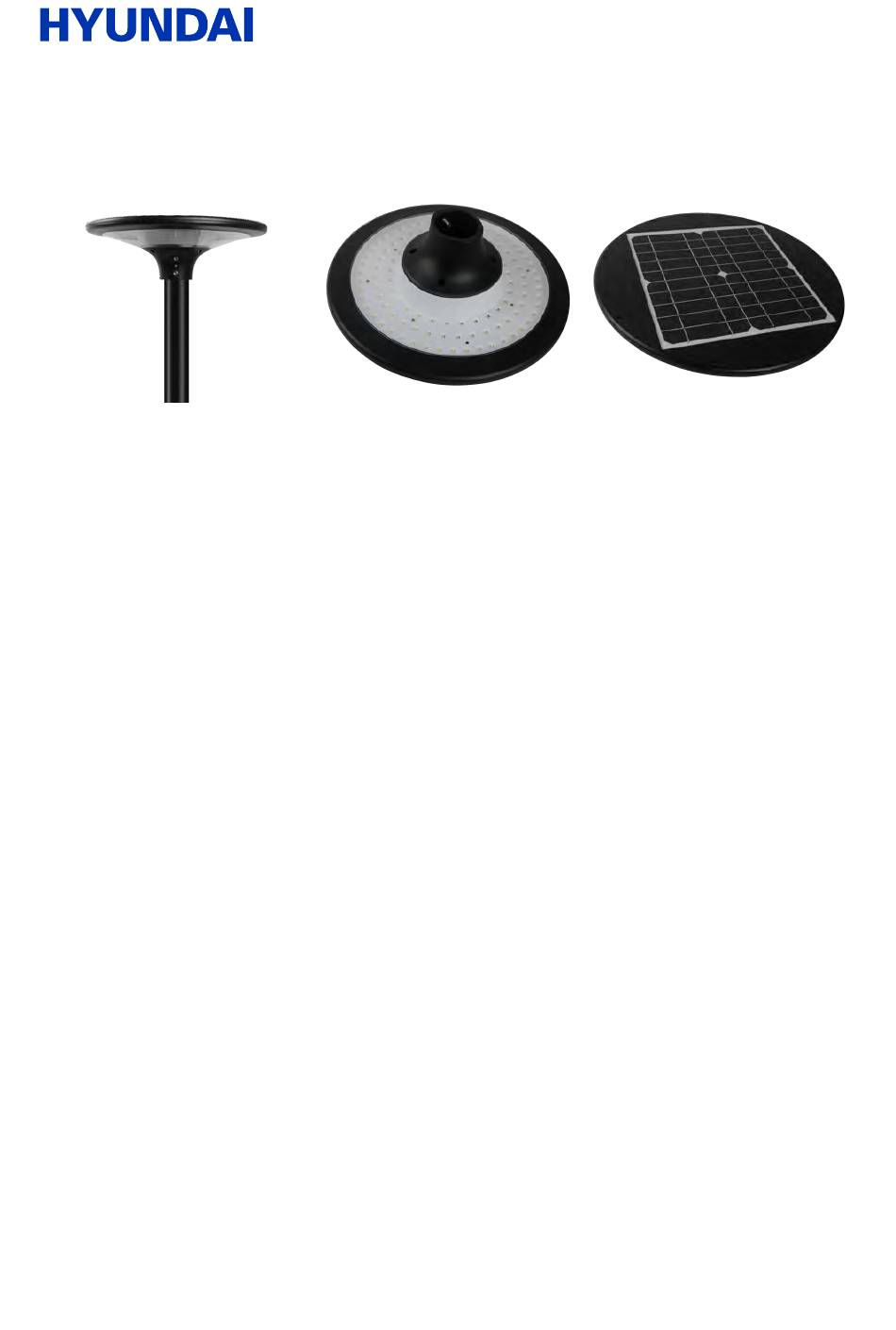

Solar Post Top - 2300Lm - 20W
Patented design, smooth streamlined shape
with elegant lighting effect.
Bright light 365 days a year, even during
load-shedding.
Advanced anti-glare lens design for comfortable
smooth lighting.
20W
Power
IP65
Waterproof
Specifications
Product Model
HL-LD-SSL-20W-PT
Solar Panel
Mono-crystalline silicone 11.5W, 10V
Charging Time
4-6hrs strong sunshine to fully charge.
IP Class
IP65
Material
ABS+PC, anti-UV, fireproof
Working Temprature
-20C°- 60C°
Beam Angle
360°
Operational Time
32 hours +
360˚ Lighting for a uniform coverage area
Grade-A Mono solar panel with laminated
tempered glass, high conversion
efficiency 21%+, 20years long lifespan,
long lasting reliable.
Compact lamp structure with high quality
ABS+PC, IP65, anti-UV, fireproof, durable.
2300
Lumens
3 Years
Warranty
Power
20W
LED Type
112pcs* SMD2835
Lamp Fixture Color
Black
Packing
1*solar light, 1*user manual
Storage Temp
-20-45℃
Lumens
2300LM
Li-ion Battery
LiFePO4 battery,32700, 6000mAh, 6.4V,
38.4Wh, replaceable.
2300Lm from SMD2835 LED chips.
LiFePO4 battery 32700/6000mAH/6.4V,
large capacity with over-charge and over-
discharge protection, life cycles 2000+, safe
and durable, replaceable.
Intelligent control ensuring longer
operation time.
360°
Beam Angle
4-6 Hours
Solar charging time
Effective Projection Surface
80
㎡
CCT
2800~6500K available
Warranty
3 years (fixture and battery)
Installation Distance
10~15mtrs
Installation Height
2-4mtrs
Pole Diameter
φ50~60mm
Dimensions
φ400*120mm
Advertisement
Related Manuals for Hyundai Lighting HL-LD-SSL-20W-PT
Summary of Contents for Hyundai Lighting HL-LD-SSL-20W-PT
- Page 1 IP65 3 Years 4-6 Hours Waterproof Warranty Solar charging time Specifications Product Model Power Effective Projection Surface HL-LD-SSL-20W-PT ㎡ Solar Panel LED Type Mono-crystalline silicone 11.5W, 10V 112pcs* SMD2835 2800~6500K available Charging Time Lamp Fixture Color Warranty 3 years (fixture and battery) 4-6hrs strong sunshine to fully charge.
- Page 2 LIGHTING Intelligent Working Mode Press the On/Off button to activate the lamp. The lamp will function automatically. The lamp will switch on at night and keep 100% brightness for the first 3 hours, 70% brightness for the next 2 hours and then 50% brightness till sunrise. With the intelligent management system the lamp will adjust the brightness accourding to the battery capacity.
- Page 3 LIGHTING Applications: Widely used for garden, road, villa, courtyard, park, pathway, seaside, square, walkway, industrial area, school, shopping street, holiday resort, farm, gate, office buildings, hotel, hospital, village, warehouse, castle, street, landscape, etc.
- Page 4 Caution/Warning: 1. Please press the On/Off button on the lamp to turn on the lamp before installation. 2. This is a solar powered lamp, please install it in a location where can get enough sunshine. 3. When the lamp is turned off, it still can get solar charging at day time. 4.
