ATTE ACSDC-15-120 Instruction Manual

ACSDC-15-120
Step-down converter 24VAC/12VDC
Vin 20...28VAC, Vout 12VDC, Iout 1,25A, Pout 15W
The ACSDC-15-120 is a non-isolated step-down converter. The device is powered by 20 - 28 VAC
and provides a stabilized output voltage of 12V.
The ASDC/ACSDC group converters are high-efficiency voltage-lowering modules. The device
provides stable power supply for elements of alarm systems, cameras, WLAN devices, etc. It is used to
power remote electronic devices via a standard twisted pair cable.
Technical Specification
Output Voltage
Power Supply Voltage
Idle Current
Output Power
Efficiency
Protection
Housing Construction
Assembly
Operating Temperature
Dimensions
Weight
Installation
Mount the device in the selected location and connect the connecting wires.
•
Connect power supply wires to Vin terminals.
•
Turn on power supply.
•
ul. 3 Maja 5, 32-400 Myślenice, tel: +48 12 378 94 02, e-mail: support@atte.pl
INSTRUCTION MANUAL

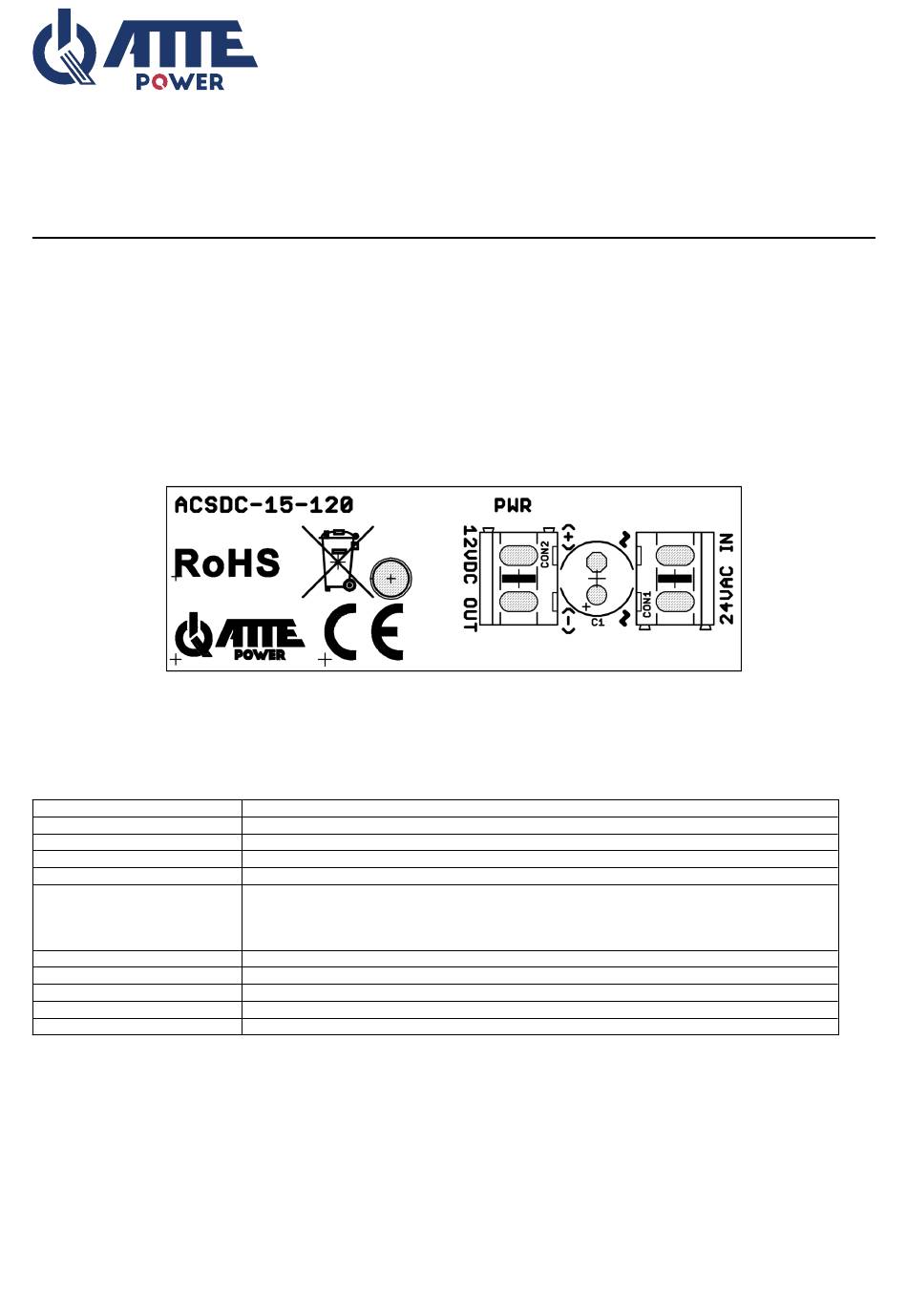

General view of the device
Vout 12VDC
Vin 20...28VAC
10mA @24VAC
15W @12V
92% @VIN=24VAC, POUT=15W
Surge protection
Overload protection
Thermal protection
Short circuit protection
poliwęglan
brak
-25 ... +50°C
20 x 63 x 20 mm
0,015 kg
ATTE Power Sp. z o. o.
1
