Summary of Contents for Safe GATO300

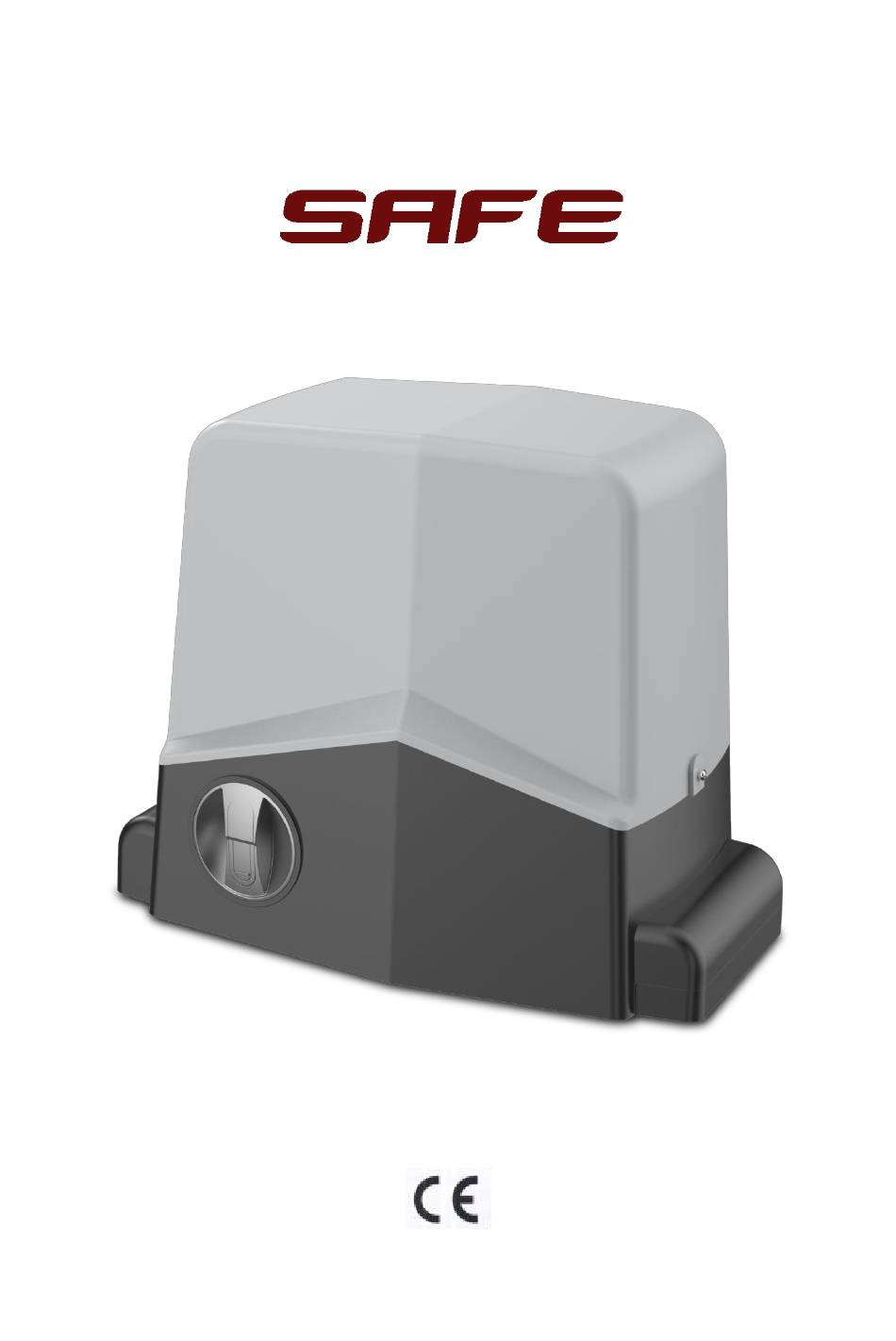

- Page 1 SLIDING GATE OPENER INSTALLATION MANUAL Provide users with professional gate solutions.
- Page 2 - The unit can be used by children over 8 years old and by people with reduced physical, sensory or mental capabilities or with no experience or necessary knowledge on condition they are supervised or trained about the safe use of the equipment and understand the risks involved. Children must not play with the unit.
- Page 3 Ⅱ. Main specifications and technical parameters ITEM NO. GATO300 GATO600 GATO800 GATO1000 GATO1500...
- Page 4 AC230 AC230 AC230 AC230 AC230 AC230 Power supply /120V /120V /120V /120V /120V 380V /120V 1400 1400 1400 1400 1400 1400 1400 Motor speed Output 20Nm 22Nm 27Nm 35Nm 35Nm 45Nm Torque Gate speed m/min m/min m/min m/min m/min m/min m/min Max gate weight...
- Page 5 Fig.1 IV.Mounting gear rack The easiest way to fit the gear rack is to first place it on the gate operator’s cog, disengage the gate operator and, by pushing the gate further with the gear rack, screwing the rack bit by bit firmly in position. In this way, you ensure that the gear rack engages with the cog wheel in an optimum manner.
- Page 6 with the clutch disengaging the link between the cog wheel and the gear. Turn the knob clockwise to the end to release the gate, open and close the gate manually; turn the knob anti-clockwise to the end, open and close the gate by transmitters. ATTENTION: if the limited switch was broken and the gate was blocked at the end, try to release gate operator by the knob, if it is not successful , please unlock the four screws which fix the gate operator to the steel basement.
- Page 7 ( MAGNETIC LIMIT SWITCH ) ( SPRING LIMIT SWITCH ) Fig.4 VII.Cables connection: Motor cables: Blue: common black and brown: OP/CL Mechanical limited switch cables: Blue: common black and white: OP/CL Magnetic limited switch cables: Red: +12V black: GND green and white: OP/CL VIII.
