  • Page 1 POS-Terminal ATOL START 16 User Manual v1.1...

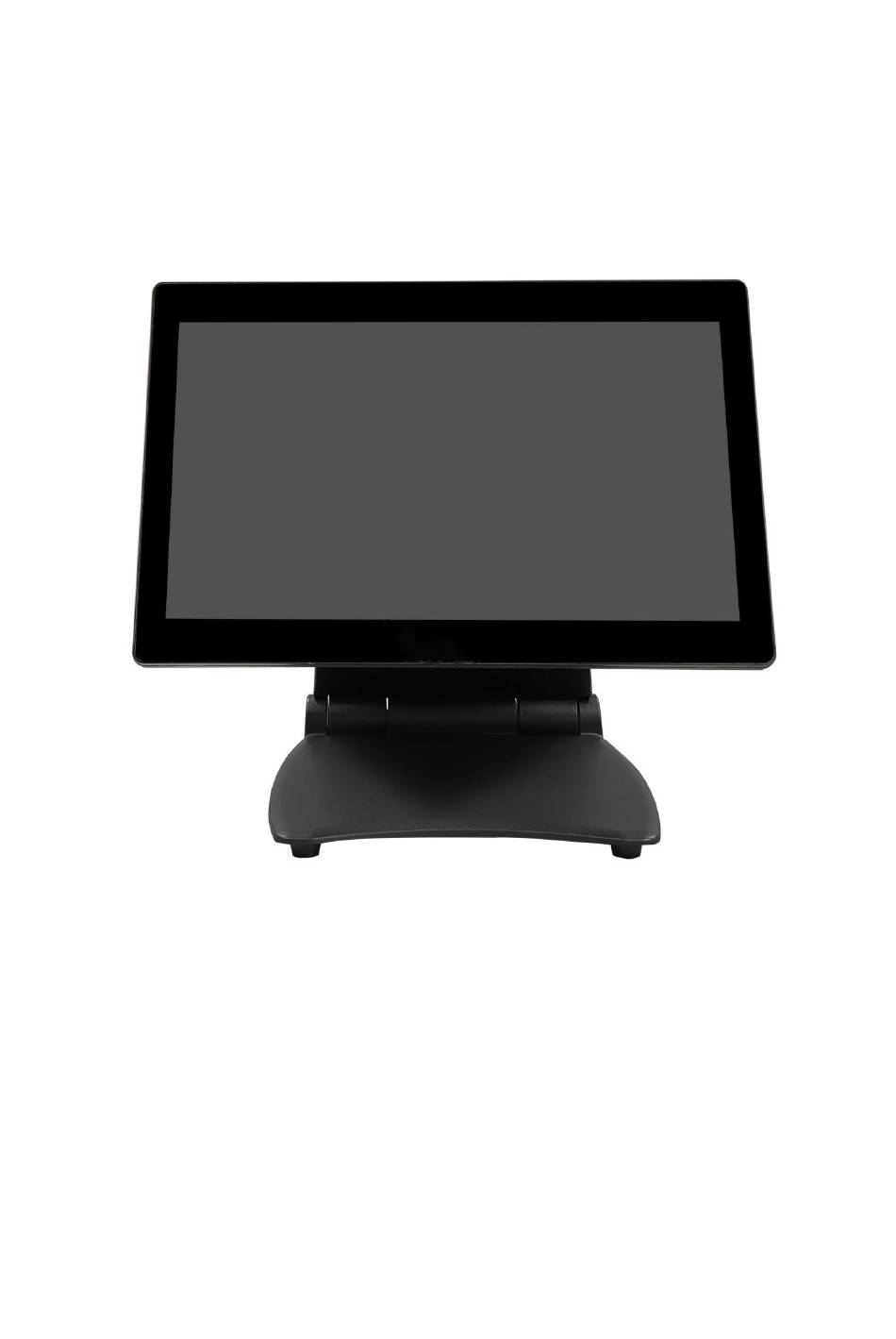

  • Page 2 Thank you for your trust in purchasing our products, when you receive the product, please ensure that the outer packaging of the product is intact, if there is any damage or missing accessories, please contact your dealer. • START 16, POS-Terminal x 1 • Power adapter x 1 • Power cord x 1 2.
  • Page 3 Model display: The illustration is for reference only, please refer to the actual product. IO interface diagram： Description: Interface port Description Power input interface, support 12V power input DCIN COM*1, RS232 protocol, 5V output/12V output voltage optional Universal display interface Realtek 8111F Gigabit Ethernet Link LED: Solid green, indicating that the network is connected Active LED: Flashes orange to indicate data transmission...
  • Page 4 Basic Operation Guide: The location of the plug is detailed in the figure below...
  • Page 5 Security Notes: • Do not arbitrarily tear the serial number and agent warranty sticker on the motherboard before installation, otherwise it will affect the determination standard of the product warranty period. • Be sure to turn off the power and unplug the power cord before installing or adding other hardware devices. •...
