Summary of Contents for Schake 40156E Series

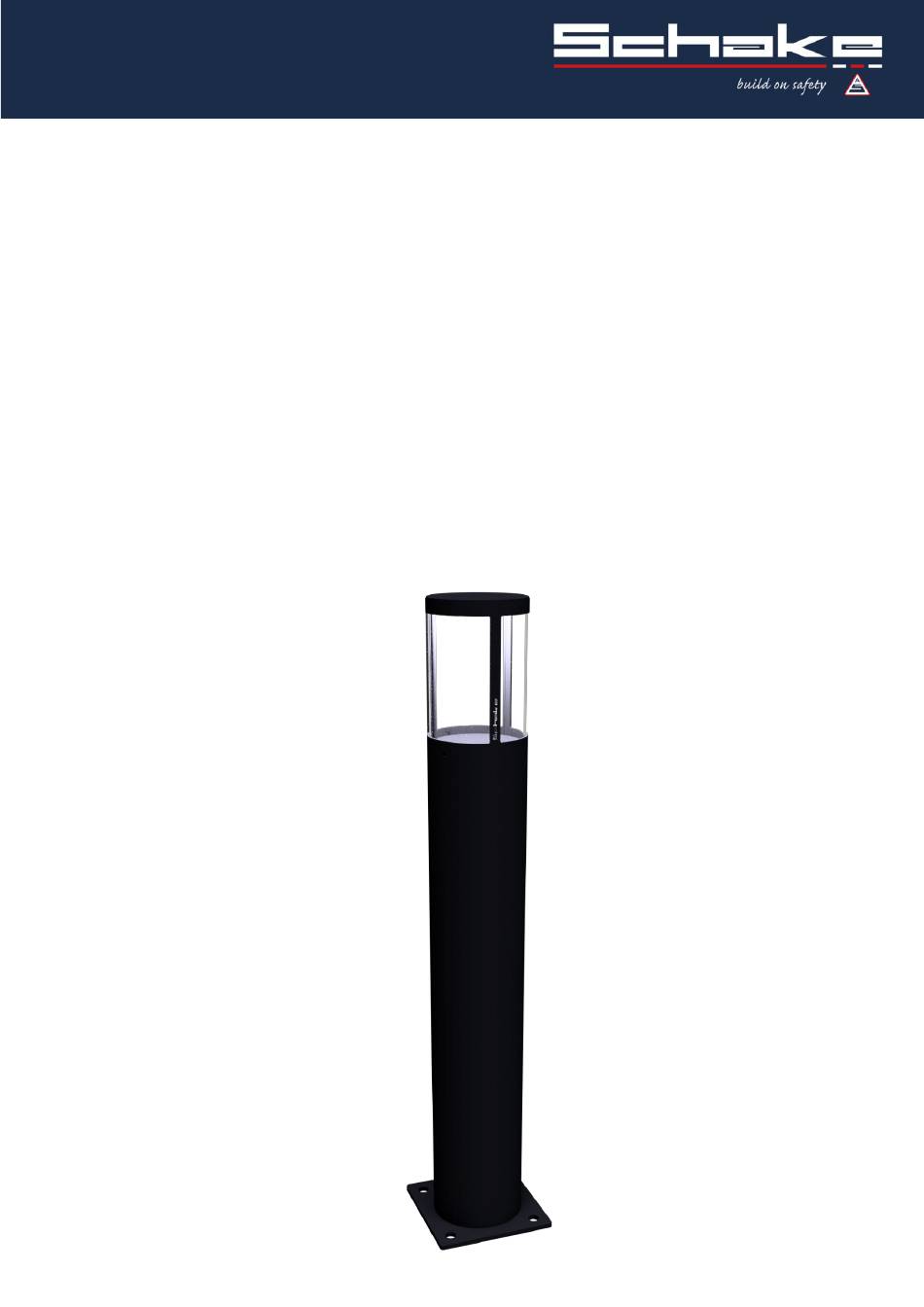

- Page 1 Manual Light Bollard 40156E-Series...
-
Page 2: Table Of Contents
Contents Introduction ........................3 Product name and item number ....................3 Information on the manufacturer ....................3 Target group ..........................3 Life cycles of the light bollard ..................... 3 Safety information ......................4 Intended use ..........................4 Predictable misuse ........................5 Symbols and notes ........................ -
Page 3: Introduction
1.1 Product name and item number Products name: Light Bollard Item number 40156EBKD, 40156EBKR, 40156EBKS 40156EBMD, 40156EBMR, 40156EBMS 1.2 Information on the manufacturer Name: Schake GmbH Adress: Eckeseyer Straße 195, 58089 Hagen E-Mail: info@schake.de Phone: +49 (0)2331/38606-0 1.3 Target group These operating instructions are intended for the following personnel: •... -
Page 4: Safety Information
2 Safety information 2.1 Intended use The light bollards of the 40156E series are used for direct and indirect lighting on footpaths, squares and other open spaces, etc. as an open space design and lighting element Figure 1 Clear lamp glass: 40156EBKD... -
Page 5: Predictable Misuse
2.2 Predictable misuse The light bollard must not be used for purposes other than intended. The following foreseeable misuses are not permitted: • Interior lighting • Self-repair measures 2.3 Symbols and notes This manual may use the following symbols, signal words and notes to warn of hazards and to ensure safe operation. - Page 6 • This light bollard conforms protection class I and therefore must be connected to the protective earth conductor. • Always ensure that the light bollard is disconnected before assembly, cleaning or other activities on the charging station. • Wear of metallic or conductive jewelry, such as necklaces, bracelets, rings, etc., is prohibited during all operations, including cleaning! •...
-
Page 7: Operation
2.4.2 Operation During operation, note that the light bollard is connected to the local power supply. Improper use may result in injury or even death due to electric shock. The outer housing of the light bollard is also grounded. For safe operation, the user of the light bollard must fulfill the following obligations: Read and follow the instructions and notes in the operating manual. -
Page 8: Technical Data
3.3 Technical Data 3.3.1 Dimensions and mass Parameter Unit Value Height bollard (L) [cm] Diameter bollard (Ø) [cm] 152,4 Width baseplate (H) [cm x cm] 200 x 200 Thickness baseplate (t) [cm] Gewicht (m) [kg] 3.3.2 Electrics Parameter Unit Value AC voltage (U) Frequency (f) [Hz]... -
Page 9: Installation And Assembly
4 Installation and assembly 4.1 Requirements for installation personnel Installation and assembly may only be carried out by qualified personnel. 4.2 Requirements for the installation site The light bollard is intended for outdoor installation. Furthermore, the following specifications must be complied. Parameter Unit Value... -
Page 10: Commissioning
7 Decommissioning / Dismantling / Disposal The disposal of the light bollard must be performed professionallly. 8 Protocols / Certificates / Technical Drawings • Declaration of Conformity by Schake GmbH for the light bollard • Risk assessment by Schake GmbH for the light bollard •...
