Summary of Contents for GLOW PIXEL ANGEL 740

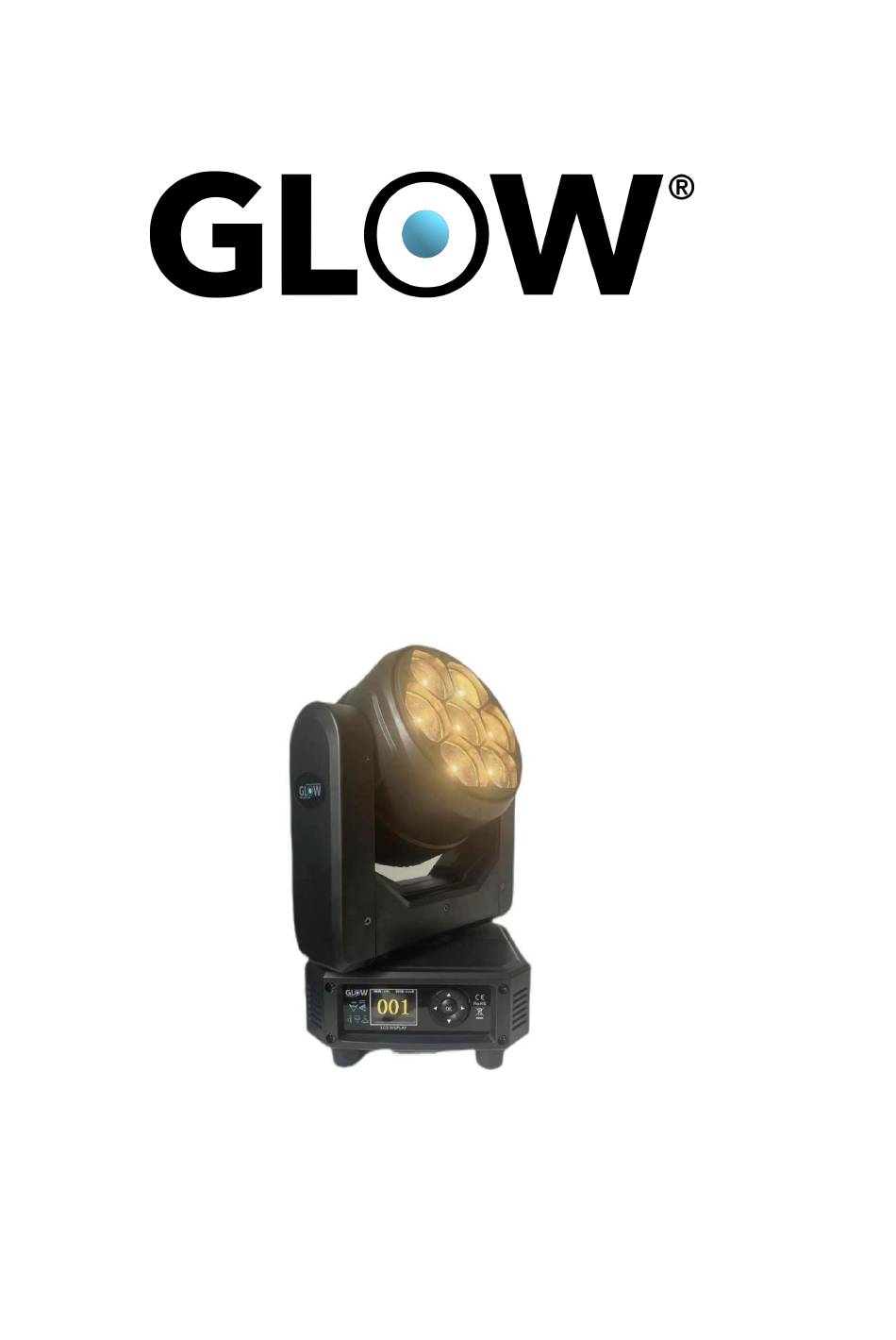

- Page 1 PIXEL ANGEL 740 MANUAL PROFESSIONAL 7*40W MOVING HEAD LED LLTK1KOS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.Safety Instructions ..........................3-4 Technical Specifications ........................4 Control Menu ..............................DMX Channels 6-10 .............................. Trouble Shooting ..........................11 Fixture Cleaning ..............................STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1 . Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. -
Page 5: Control Menu
3. Control Menu menu Three menu / parameters Sublevel menu ( Add more channels per time, minus normal) address A001 - A512 DMX Mode Host Run Mode Pan Invert ON / OFF Tilt Invert ON / OFF Quiet Fixture Fan Control High Normally Linear... -
Page 6: Dmx Channels
Tilt 000-255 Zoom 000-255 Motor Reset Cancel / Run Fixture Reset Factory Cancel Language CH/EN Display flip Display ON/ OFF Display Mode 30S/Show 4 . DMX Channels 21 CH Mode Channel Feature Value Function Red dimmer 0-255 Red Fine Red fine control 0-255 Green 0-255... - Page 7 Zoom CH20 0-255 ZOOM 0 to 60 degree 0- 127 LENS Rotation CH21 Unlimited clockwise rotation from fast to slow 128-191 Unlimited anticlockwise rotation from fast to slow 192-255 35 CH Mode Feature Value Channel Function Red dimmer 0-255 Red Fine Red fine control 0-255 Green...
- Page 8 pattern rotation Pattern selection CH22 0-255 Pattern effect speed Pattern effect speed control CH23 0-255 Pattern Fade Pattern fade CH24 0-255 Pattern R Pattern in Red color CH25 0-255 Pattern G Pattern in Green color CH26 0-255 Pattern B Pattern in Blue color CH27 0-255 Pattern W...
- Page 9 Tilt movement control CH16 Tilt 0-255 Tilt Fine Pan fine control CH17 0-255 Function CH18 0-255 No function 0-199 Reset CH19 200-205 Reset with 5 seconds No function 206-255 Zoom CH20 0-255 ZOOM 0 to 60 degree 0- 127 CH21 LENS Rotation Unlimited clockwise rotation from fast to slow 128-191...
- Page 10 CH13 Dimmer Fine 0-255 Dimmer fine control Pan movement control CH14 0-255 Pan Fine Pan fine control CH15 0-255 Tilt movement control Tilt CH16 0-255 CH17 Tilt Fine 0-255 Pan fine control Function CH18 0-255 No function 0-199 Reset CH19 200-205 Reset with 5 seconds 206-255 No function...
- Page 11 High speed random flash 239-251 No function, light up 252-255 0- 100 linear dimmer from dark to bright Dimmer CH12 0-255 CH13 Dimmer Fine 0-255 Dimmer fine control Pan movement control CH14 0-255 Pan Fine CH15 Pan fine control 0-255 Tilt movement control CH16 Tilt...
-
Page 12: Trouble Shooting
5 . Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1 . Check the connection of power and main fuse . 2 .
