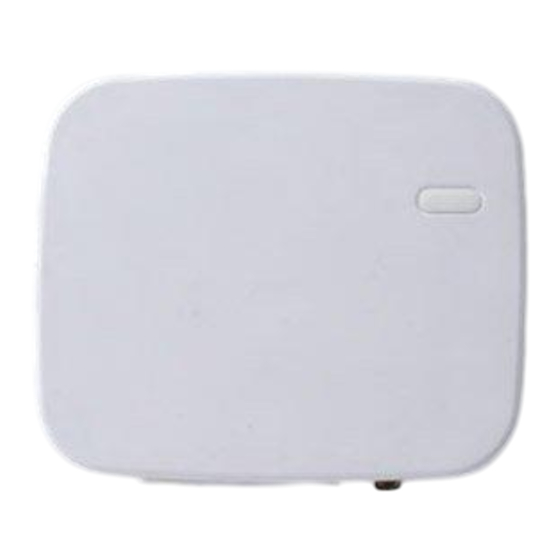

Z-Wave Relay Controller PRL-8-ZW-AC
Introduction
PRL-8-ZW-AC is a Z-Wave Relay Controller that can be connected to wired devices and set to either Normal
Open (N.O.) or Normal Close (N.C.) status. After joining Z-Wave network, the Relay Controller can be
controlled via Z-Wave network to activate connected devices. Z-Wave is a wireless communication protocol
that uses a low-power RF radio. The Z-Wave Relay Controller allows access to the "S2 Unauthenticated"
class.
Parts Identification
1. Function Button
Press the button 3 times within 1.5 seconds to send a
learn code.
Press and hold the button for 10 seconds to factory
reset.
Press the button to switch ON/OFF the Relay.
2. LED indicator (Red)
The LED indicator is used to indicate Relay status:
- LED On: Relay On
- LED Off: Relay Off
Connection Terminals
Connect the wire into the terminal, tighten the screw to
close the clipper and hold wire in place. Unscrew to
open the clipper to remove the wire connected to the
terminal.
3. Line (AC input)
4. Neutral
5. NO
For Normal Open connection with the device.
6. Common
7. NC
For Normal Close connection with the device
8. Strain Relief Clamp
The clamp is used for securing the wires, and providing
strain relief to protect the wires from the metal cutout.
9. Wiring Buckle
The Wiring Buckle is used for managing wires.
Specification
Power Source (External Power): 100-240VAC
Relay Output: Potential-free SPDT relay, Maximum Operation Load: 10A (Resistive) at 24VDC or
240VAC
Stranded Wire: 14 ~ 22 AWG
Operating Temperature: -10°C to 45°C (14°F to 113°F)
Humidity: Up to 85% non-condensing
Dimension: 86mm x 72mm x 29mm
Installation Environment
The Relay Controller should be installed indoors in a dry location.
1
