ATTE xPoE-6-11-OF Instruction Manual

xPoE-6-11-OF
6 ports PoE switch - built-in unit
10/100Mbps 5xPoE + 1xUplink
xPoE-6-11-OF is an unmanaged PoE switch dedicated for powering IP CCTV cameras. The device is
designed to work with IP cameras and other network devices operating in the PoE 802.3 at/af and
PoE PASSIVE standard.
Electronic protection of PoE outputs ensures safe operation at short-circuit or overload of
individual power supply branches and automatic voltage recovery after removing the failure. The
LONG RANGE mode allows to increase the transmission range up to 280 m over a single UTP cat5
cable with no additional signal boosters required.
The open frame (OF) construction allows the device to be installed in any suitable third party
housing. It is highly recommended however to use our dedicated ABOX series enclosures that come
with a pre-drilled backplate (4,8mm diameter, pitch 10,8mm) allowing both horizontal and vertical
installation.
ul. 3 Maja 5, 32-400 Myślenice, tel: +48 12 378 94 02, e-mail: support@atte.pl
INSTRUCTION MANUAL

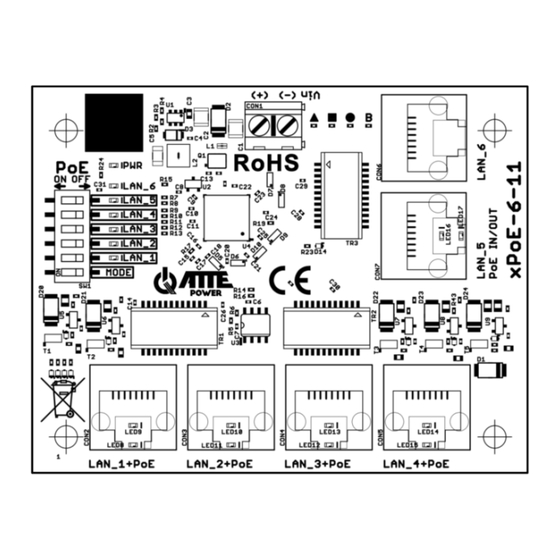

General view of the device
ATTE Power Sp. z o. o.
1
