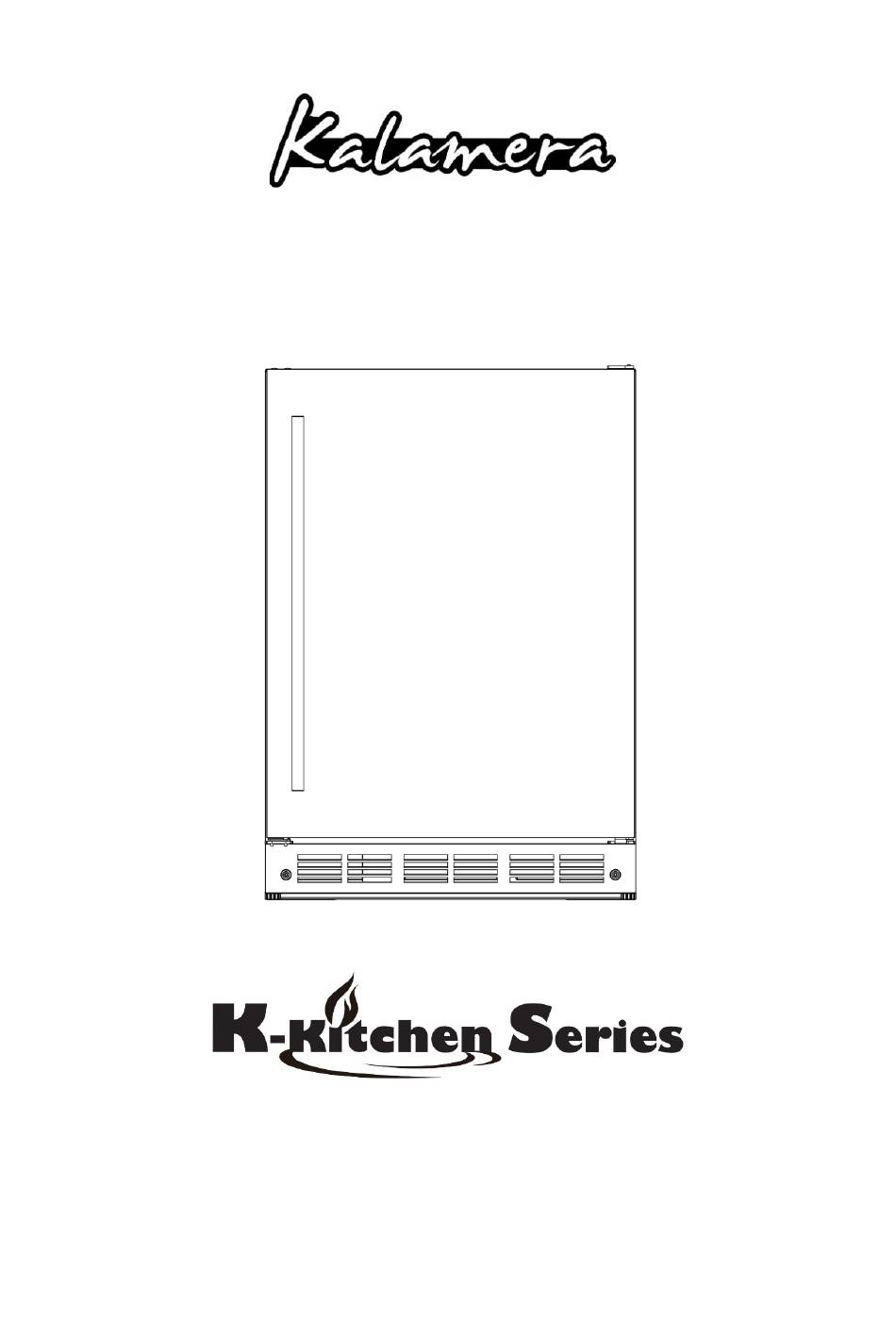

- Page 1 INSTRUCTION MANUAL Outdoor Compressor Beverage Cooler MODEL: KRC-150WB Please read carefully and follow all safety rules and operating instructions.
- Page 2 CONTENTS NAMES OF THE PARTS………………………………………………………………………………...3 SPECIFICATIONS………………………………………………………………………………………..4 IMPORTANT SAFETY INSTRUCTIONS………………………………………………………………5 PLACING AND INSTALLATION……………………………………………………….……….……….7 APPLIANCE FEATURE KRC-150WB: BEVERAGE COOLER…………………………………………….……………8 OPERATING YOUR APPLIANCE KRC-150WB BEVERAGE COOLER……………………………..……………….….…………9 CHANGING THE INNER LIGHT……………………………………………….………………10 AUTOMATIC DEFROST………………………………………………………….…………….10 CHANGING THE REVERSIBLE DOOR……………………………………………….……..………11 CARE AND MAINTENANCE CLEANING YOUR APPLIANCE…………………………………………..….….……………11 VACATION TIME………………………………………………………………..………………11 MOVING YOUR APPLIANCE…………………………………………………..…...…………11 TROUBLESHOOTING GUIDE……………………………………………………….…….……..…….12 WEEE………………………………………………………………………………………….………….13...
- Page 3 NAMES OF THE PARTS MODEL NO.: KRC-150WB ① Electronic thermostat ② Beverage shelf ③ Cabinet...
- Page 4 SPECIFICATIONS Model # KRC-150WB Outdoor Stainless Steel Built-In Product Description Beverage Cooler Model No. KRC-150WB Width Height Depth Unit dimension (inches) 23.4” 33.7” ” Cabinet cutout measurement: 24.0 24.0 80.7lbs Weight: Ambient temperature range: ºF~109 ºF Compartment temperature 35°F ~ 61°F range:...
- Page 5 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury, follow these basic precautions when using your product. WARNING----Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING----Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Page 6 13) Do not use extension cords or ungrounded (two prong) adapters with this appliance. If the power cord is too short, have a qualified electrician install an outlet near the appliance. Use of an extension can negatively affect the performance of this appliance. 14)The rating plate containing Model No and other technical data specific to this unit, is located either inside the appliance or outside on the rear wall.
- Page 7 "Description of the Appliance". They describe the appliance and correct operating procedures for safe use. Tips for Energy Saving Try not to open the door too often, especially when the weather is hot and humid. Once you open the door, close it as soon as possible. This is especially important if you have an upright model.
- Page 8 Please keep the products away from the fire or similar glowing substance before you dispose the WINE CABINET. The cooling system of the appliance is filled with refrigerant and insulating substances which should be separately treated and processed. Call the nearest authorized service agent. If you are unable to locate one, contact your local authorities or your distributor.
- Page 9 Built-in Installation The cutout dimension illustrated in figure (A) allows for door swing and access to the pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a ½” wide filler strip or side panel may be needed on hinge side. The filler strip will act as a spacer between the appliance case and adjacent cabinet door swing.
- Page 11 Electrical Connection WARNING Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center. This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.
- Page 12 To Replace a Shelf: Place the sides of the shelves back onto the supporting guides of the cabinet and push backuntil the shelf tabs slide into place. NOTE: Ensure that the tabs are firmly engaged in place before storing any beverages.
- Page 13 Changing The Inner Light Before removing the inner light, turn off the appliance first and then unplug the unit from the wall outlet. Failure to do so could result in electrical shock or personal injury. Remove two screws that fix the control box. While holding the control box, disconnect the LED connector to the main PCB.
- Page 14 Vacation Time Turn off the appliance first and then unplug the unit from the wall outlet. Remove all the contents. Clean the appliance. Leave the lid open slightly to avoid possible formation of condensation, mold, or odors. ...
- Page 15 Vibrations. Check to assure that the appliance is on a level surface. The appliance is touching the wall. Re-level the appliance and move it from the wall. If continued vibration occurs, turn off appliance and unplug the power plug. Contact Customer Service Dept.
- Page 16 TECHNICAL INFORMATION Model KRC-150WB Refrigerant R600a Amount 1.13oz Rated voltage AC 115V Rated frequency 60Hz Rated current LED Lamp Power Net weight 80.7lbs Blowing gas Cyclopentane...
- Page 17 Warranty KALAMERA LIMITED WARRANTY Limited One Year Warranty Warranty Terms: The manufacture warrants to the original purchaser of this product that the product will be free from manufacturing defects in workmanship and material for a period of 1 year from the date of original purchase when this major appliance is operated and maintained according to instructions attached to or furnished with the product.
- Page 18 To obtain service or information, please send email to service@kalamera.com Product contents and specifications may change without notice. Copyright © 2023 KALAMERA INC www.kalamera.com...
