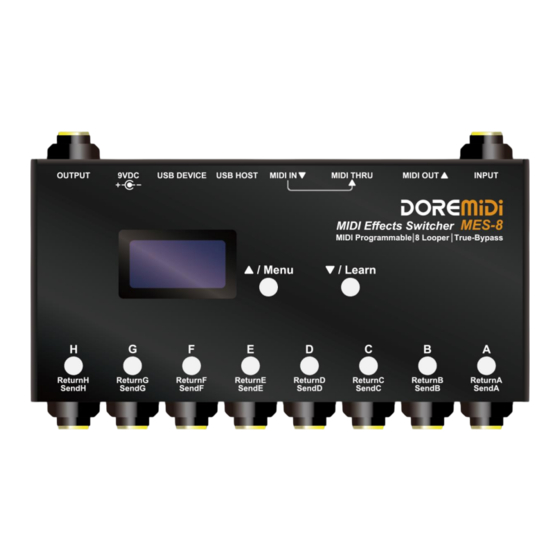

- Page 2 Introduction The MIDI Effects Switcher (MES-8) is a controller that can turn on and bypass audio effects controlled by MIDI. By learning MIDI messages, MES-8 can quickly control different effect switch combinations, up to 160 combinations. MES-8 can be controlled by a variety of MIDI devices, such as MIDI five-pin DIN devices, USB MIDI devices, and computers.
-
Page 3: Product Parameters
1/4" mono audio output port, the end of the audio output, outputs the mixed audio of the OUTPUT audio chain. Return: 1/4" mono audio input port. After sending to the effector, it returns to MES-8. It can Return A~H ①... - Page 4 Use cases Connect up to 8 audio effectors: MES-8 can support up to 8 external effectors, which are eventually mixed and output to the power amplifier. The display and audio chain are as shown in the figure.
- Page 5 Each effect link exists independently. Connect multiple amplifiers: MES-8 can connect multiple power amplifiers to the link. As shown in the figure, Switch D is connected to the power amplifier. Note that the audio needs to be returned to MES-8.
- Page 6 Parameter configuration After long pressing the "▲/Menu" button for 3 seconds, enter the menu configuration parameters, click ▲/▼ to switch to different options, click "SWITCH-E" to confirm the option/confirm configuration, click "SWITCH-D" to return to the previous level, If there is no operation for 30 seconds, it will automatically return to the main interface.
- Page 7 Switch A~H Status: Set the MIDI message type controlled. default CC CC/PC No: Set CC control serial number, or PC serial number. CC/PC No: 0~127 Restore MES-8 to default configuration. All learned MIDI messages will be cleared. Factory OFF/ON Reset...
- Page 8 Answer: Please follow the steps below: Make sure that the MES-8 power supply is normal. If you use the USB HOST port to power USB devices, please make sure that the DC IN power can meet the working requirements of the USB device.
