Summary of Contents for Bitronics NerdAxe

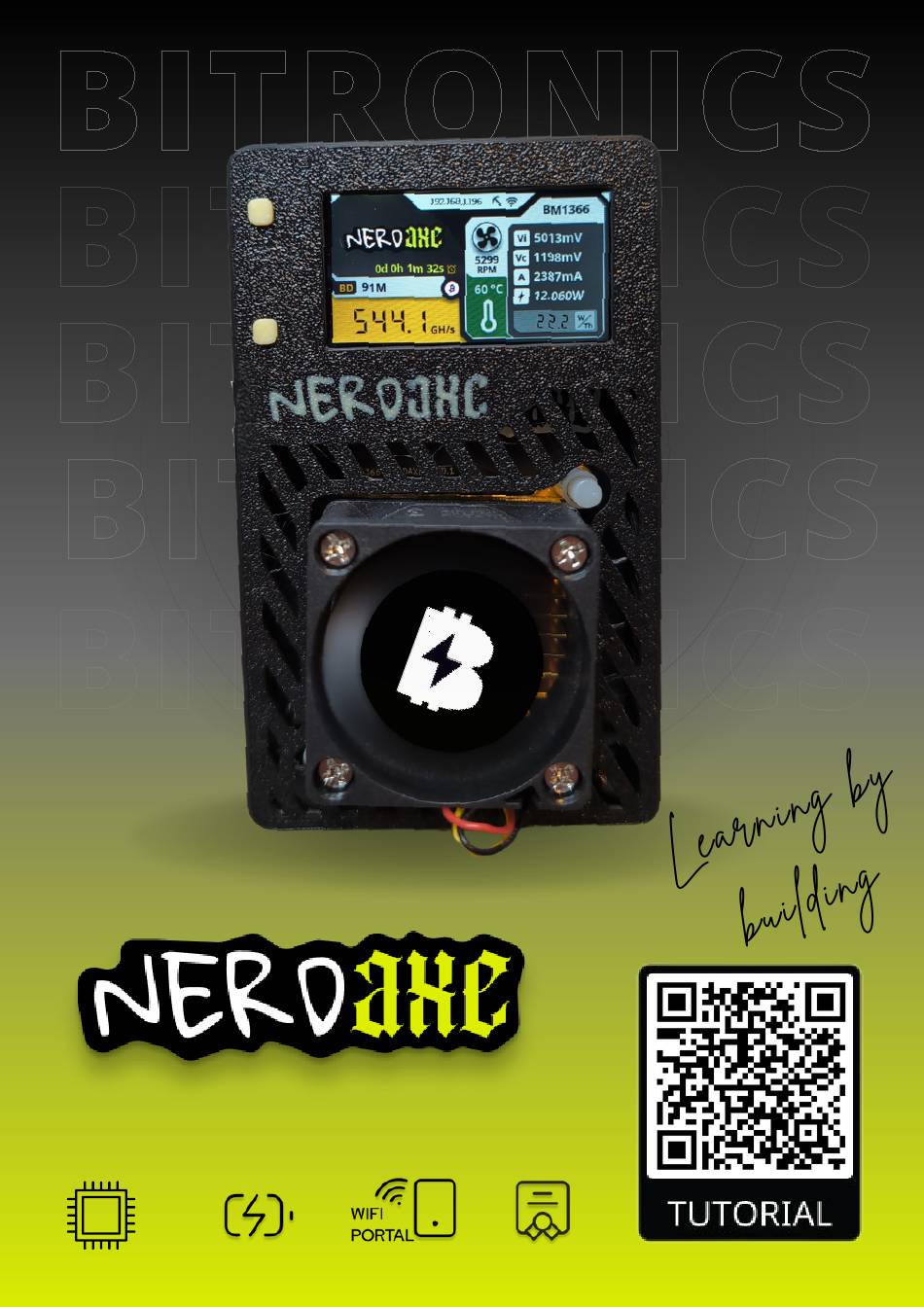

- Page 1 BITRONICS BITRONICS BITRONICS BITRONICS BITRONICS ASIC POWER LOW POWER EASY TO OPEN CONSUMPTION CONFIGURE SOURCE BITMAIN CHIP...
- Page 2 20 J/TH. It operates using a 5V DC power supply connected via a 2.1/5.5mm barrel jack connector. At the core of NerdAxe is the combination of ESP-miner and AxeOS, an open-source firmware that empowers you with full control over your mining operations. The...
- Page 3 For any other question contact Bitronics team. TOOLS NEEDED Required time: 5 minutes 1 - Power up your Nerdaxe with its power adapter (5V /4A). Important: Don’t use any other power adapter. 2 - Wait until the text "Connect to ssid: Nerdaxe_XXXX"...

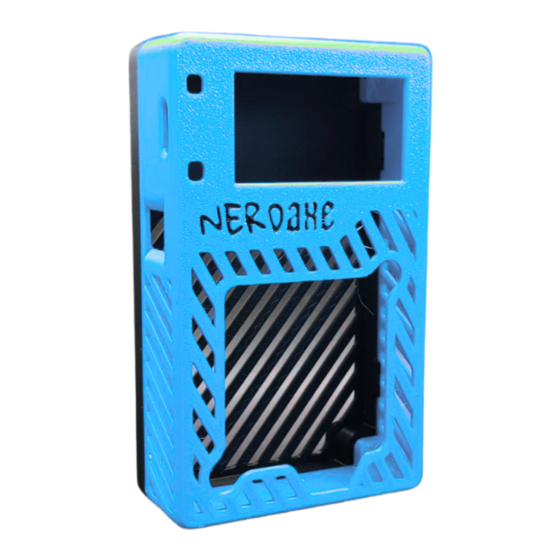

- Page 4 Required time: 10 minutes Below, we present the steps to assemble your NerdAxe DIY kit. For any other question contact Bitronics team. TOOLS NEEDED Case Parts Buttons Your Board Tools First, make sure to add the buttons to the case as shown in the photo.
- Page 5 Once the screen is installed, attach the NerdAxe PCB by inserting the screen's pins into the PCB as shown in the photo. Ensure they are properly aligned and fully seated with gentle pressure. FOTO FOTO Attach the back Screw on the of the case back part.
- Page 6 6 - Connect your Nerdaxe to its power adapter (5V/4A). Ensure you use the specified adapter to avoid damage. The buttons next to the screen are used to switch between screens, allowing you to view the upcoming displays. 7 - Once connected, the following menu will be shown (3).
- Page 7 The following screen provides all NerdAxe stats, including mining values, chip temperature, and efficiency, among other details. ASIC Model NerdAxe IP Miner Stats Efficiency Current Hashrate Best difficulty: Best share gotten by miner Input voltage: voltage of power supply Core voltage: voltage readed at ASIC chip...
- Page 8 IP address, and port for configuring axeOS. ASIC Settings Pool Settings Shares Rejected/Accepted Core voltage set: Configured ASIC core voltage Freq set: ASIC frequency configured Fan: configured fan behaviour URL: Pool configured URL PORT Port: Pool configured Port SHARES Shares: Accepted/rejected found shares NERDAXE...
- Page 9 P: 1W USB type: USB-C ASIC: BM1366AG type: USB-C Powered by the S19XP BM1366 ASIC chip Easy to setup, fully assembled, configure and play ASIC Tunning via config portal, find your work Web config portal to setup your mining data NERDAXE...
- Page 10 TOOLS NEEDED 1 - Power up your NerdAxe with its power adapter (5V /4A). Important: Don’t use any other power adapter. 2 - Wait until the text "Connect to ssid: Nerdaxe_XXXX_XXXX" appears on the screen, and then from a mobile...
- Page 11 ASIC core voltage. ASIC TUNNING METHODOLOGY Playing with frequency and core voltage let you find the best working point with your ASIC. Increasing reducing hashrate power consumption. Be carefull to not force it too much. Default values are the recommended ones. NERDAXE...
Need help?
Do you have a question about the NerdAxe and is the answer not in the manual?
Questions and answers
I add the Wifi SSID (DualBand) and Password (WPA2), The miner fails connecting to the wifi. Logs show that the Device is in AP mode.
The Bitronics NerdAxe miner may be failing to connect to WiFi and staying in AP mode due to incorrect WiFi credentials. The SSID or WPA2 password entered for the DualBand network may be wrong or not supported. Ensure the SSID and password match exactly, and verify the network is 2.4 GHz, as some devices do not support 5 GHz networks.
This answer is automatically generated
I have tried four sites but I can't get a hash
To obtain a hash for the Bitronics NerdAxe, you need to:
1. Ensure the device is connected properly with a 5V 4A power supply.
2. Input the correct pool and worker information.
3. Save the settings and restart the device.
4. Wait for the device to appear as online and hashing in the mining pool (e.g., CK Solo Pool or Brains Pool).
Hashing will begin once the device is properly configured and recognized by the mining pool.
This answer is automatically generated
