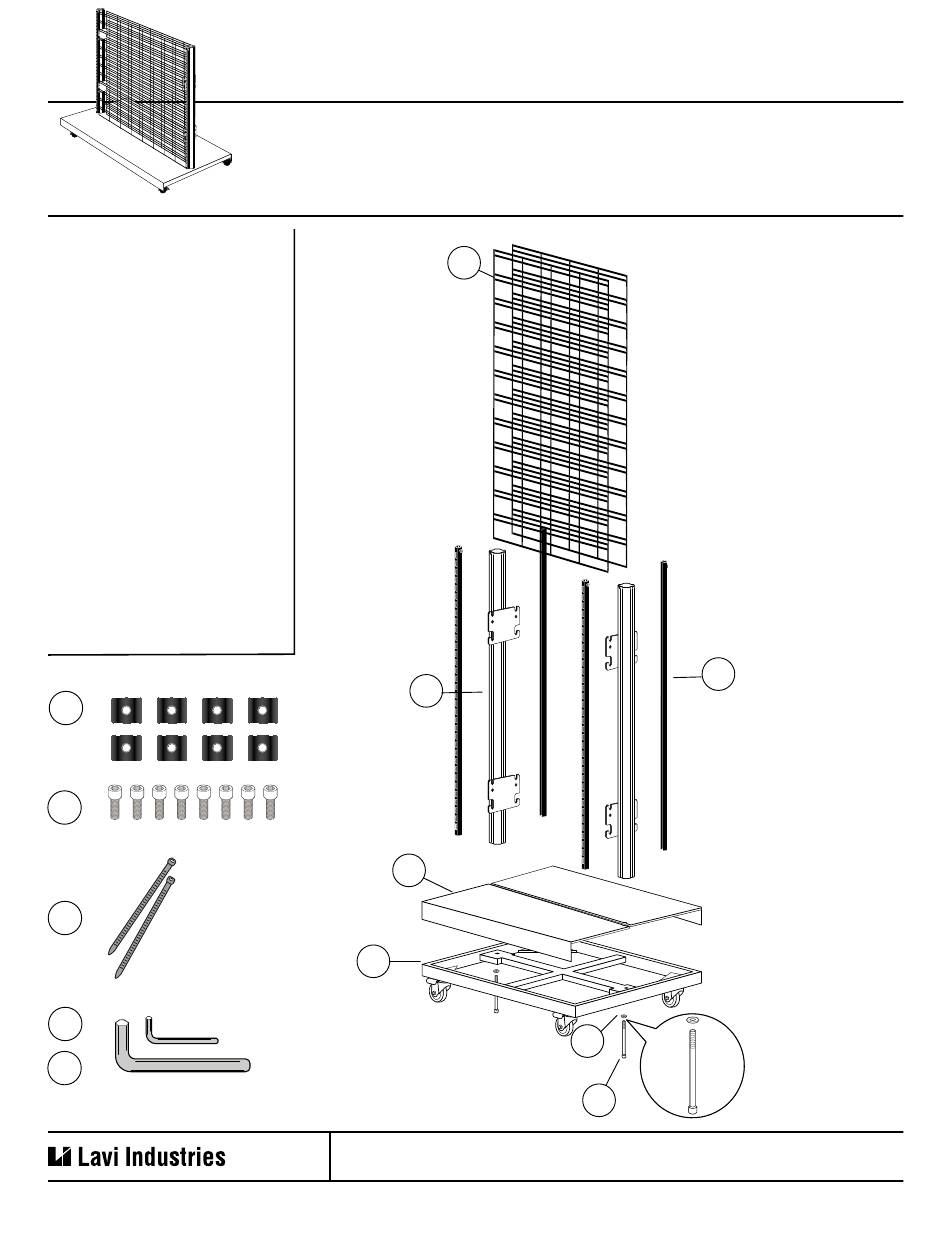

Parts:
A. Slat Grid (2)
B. Posts (2) with Brackets (4)
C. Skirt (2 halves)
D. Frame (1)
E.
Post Bolts (2)
F.
Lock Washers for Post Bolts (2)
G. Standard Slot Rails (4)
H. Slat Grid Wing Washers (8)
J.
Slat Grid Hex Bolts (8)
K. Zip Ties (2)
Tools:
L.
5/16" Hex Key for Posts
M. 1/8" Hex Key for Brackets
H
J
K
L
M
Part No. 87-255 • 10/2024
A
B
C
D
5885 E. Houston Street, San Antonio, TX 78220 • www.lavi.com • 800.624.6225
Assembly Instructions
Universal Gondola
G
F
E
Page 1
Advertisement
Related Manuals for Lavi Industries Universal Gondola
Summary of Contents for Lavi Industries Universal Gondola
- Page 1 Assembly Instructions Universal Gondola Parts: A. Slat Grid (2) B. Posts (2) with Brackets (4) C. Skirt (2 halves) D. Frame (1) Post Bolts (2) Lock Washers for Post Bolts (2) G. Standard Slot Rails (4) H. Slat Grid Wing Washers (8) Slat Grid Hex Bolts (8) K.
- Page 2 Assembly Instructions Universal Gondola STEP STEP Insert Zip Ties to Skirts Position skirts upside down and push together with no gap in between. Make sure holes in center edge align with one another. Insert one zip tie in each hole and tighten so that the two skirts are pressed together.
- Page 3 Assembly Instructions Universal Gondola STEP Place Slat Grid into Brackets Position Slat Grid Panel over brackets so that the third and fourth horizontal bar sections (from both sides as well as top and bottom) are over the slots in each bracket as shown. This step may require 2 people, one on each side of the panel.
- Page 4 Assembly Instructions Universal Gondola STEP Secure Posts Finally, using the 5/16" Allen Key, finish tightening the bottom bolts that secure the two posts. STEP Add Standard Slot Rails Loosen set screw on Slide the Standard Slot Rail into a Tighten the set screw on the Standard dovetail groove of the Post so that it Slot Rail to secure.
