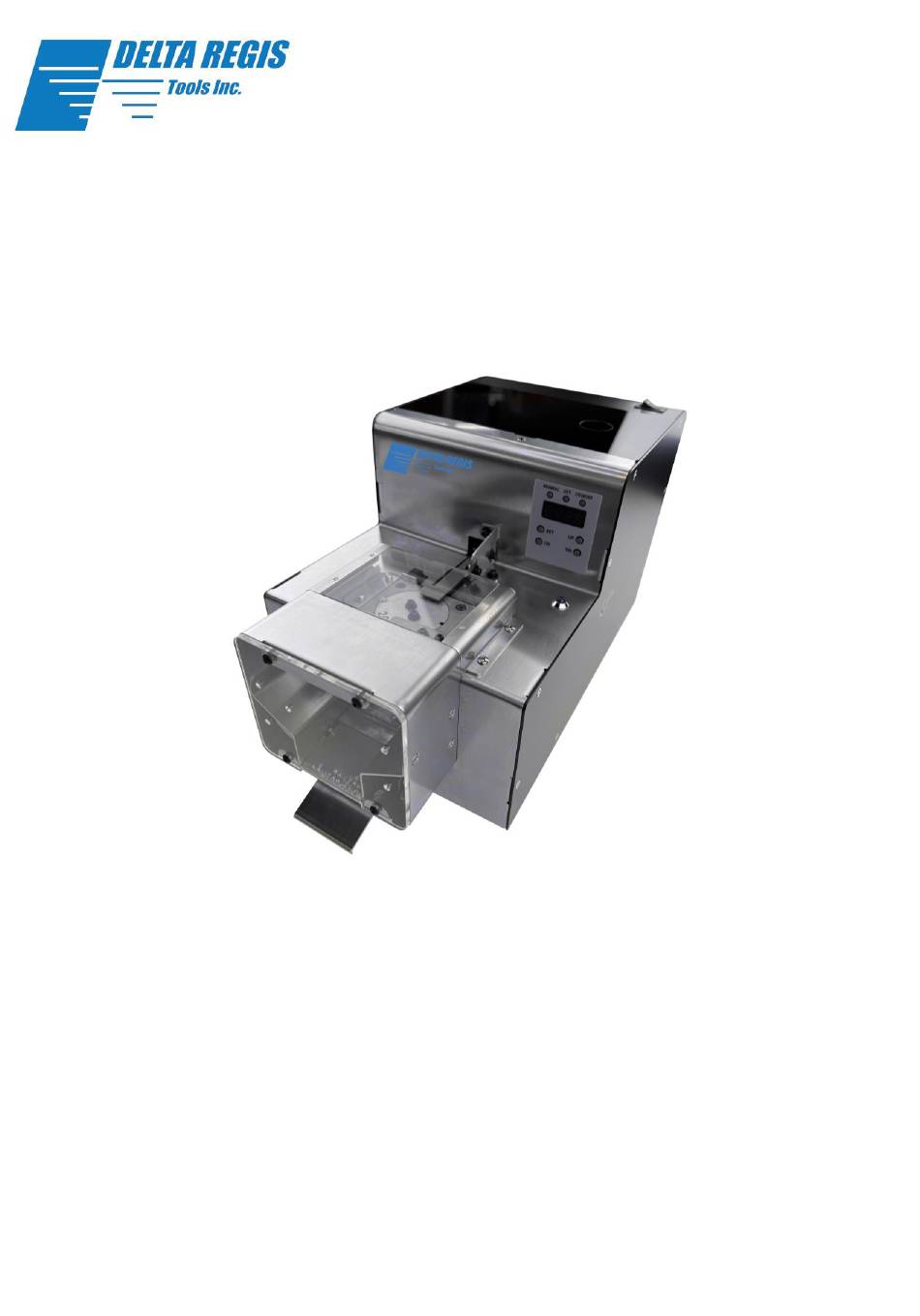

DRFF-630C/835C
Screw Dispenser
Operation Manual
CAUTION - Please read, understand, and follow all operating and safety instructions in this manual
before using this machine.
If you have any questions or concerns, please contact us at:
Delta Regis Tools, Inc.
7370 Commercial Circle
Fort Pierce, FL USA 34951
Ph +1-772-465-4302
Fx +1-772-465-4368
E-mail: sales@deltaregis.com
Website: www.deltaregis.com
Delta Regis_DRFF-630C-835C_M_R0.1.pdf
Advertisement
Summary of Contents for Delta Regis DRFF-630C Series
- Page 1 CAUTION - Please read, understand, and follow all operating and safety instructions in this manual before using this machine. If you have any questions or concerns, please contact us at: Delta Regis Tools, Inc. Ph +1-772-465-4302 7370 Commercial Circle Fx +1-772-465-4368 Fort Pierce, FL USA 34951 E-mail: sales@deltaregis.com...
- Page 2 Regis for the location of the nearest service depot. • Use only the factory specified Delta Regis brand replacement parts and accessories with these screw feeders. • Any damage to the screw feeder resulting from misuse, abuse, or failure to follow these guidelines will void the limited product warranty.
-
Page 3: Unit Overview
1. Unit Overview Power Switch LCD/Programming Receiving Box Screw Dispensing Plate Present/Error LED Power Socket 12VDC I/O Interface Grounding (if equipped) Lug (ESD) - Page 4 2. Operating instructions and programming Instructions 1. I/O connection (if equipped): Black: Arrival signal (counting full)“+” Green: Arrival signal (counting full)“-” Red: External start“+” Yellow: External start“-” The machine starts after S1 is closed and then opened, or S1 is normally closed, disconnect the machine to start 2.
- Page 5 5. The number of screws programmed will be stored in the receiving box. The dispensing plate is pressed by the operator’s hand or bin, and the screw slide down the dispensing plate. After the operator takes the screws and returns the dispensing plate to its original position, the machine performs the next round of counting.
- Page 6 exit the setting under this item and return to the program selection. (4) When finishing programming, wait 3 seconds to exit programming mode. (5) To reset the total screw count: long press the SET key and OK key at the same time, the total count will be reset to zero.
- Page 7 Vibration Motor Shutdown Set the delay time for the vibration motor to stop Delay (Program Value: 01-20 (1 Second per unit)) Set the operating speed of the vibration motor Vibration Motor Speed (Program Value: 01-20) Set the delay time for the drum motor to stop Drum Motor Shutdown Delay (Program Value: 01-20 (1 second per unit)) Set the operating speed of the drum motor...
- Page 8 Parts and Accessories If you require parts or accessories for your Delta Regis product, please refer to our website or contact us for further information. Use only genuine Delta Regis parts when servicing these...
-
Page 9: Warranty
There is no warranty of merchantability or fitness of purpose. In no event will Delta Regis Tools, Inc. be liable for business interruptions, loss of profits, harm, injury, damage, personal injury, cost of delay, or any other special, indirect, incidental, or consequential...
