Summary of Contents for Inventronics QBM

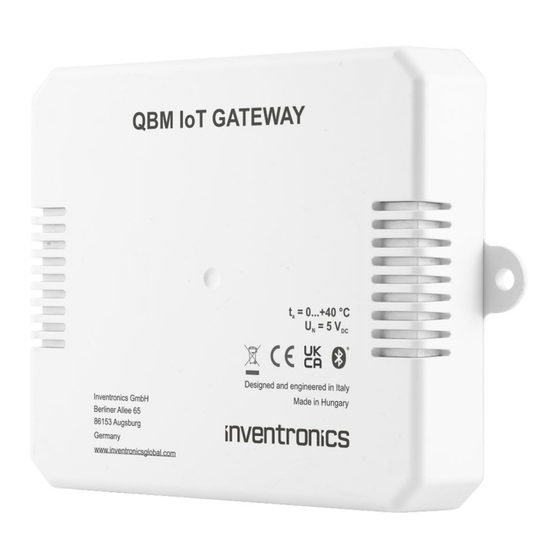

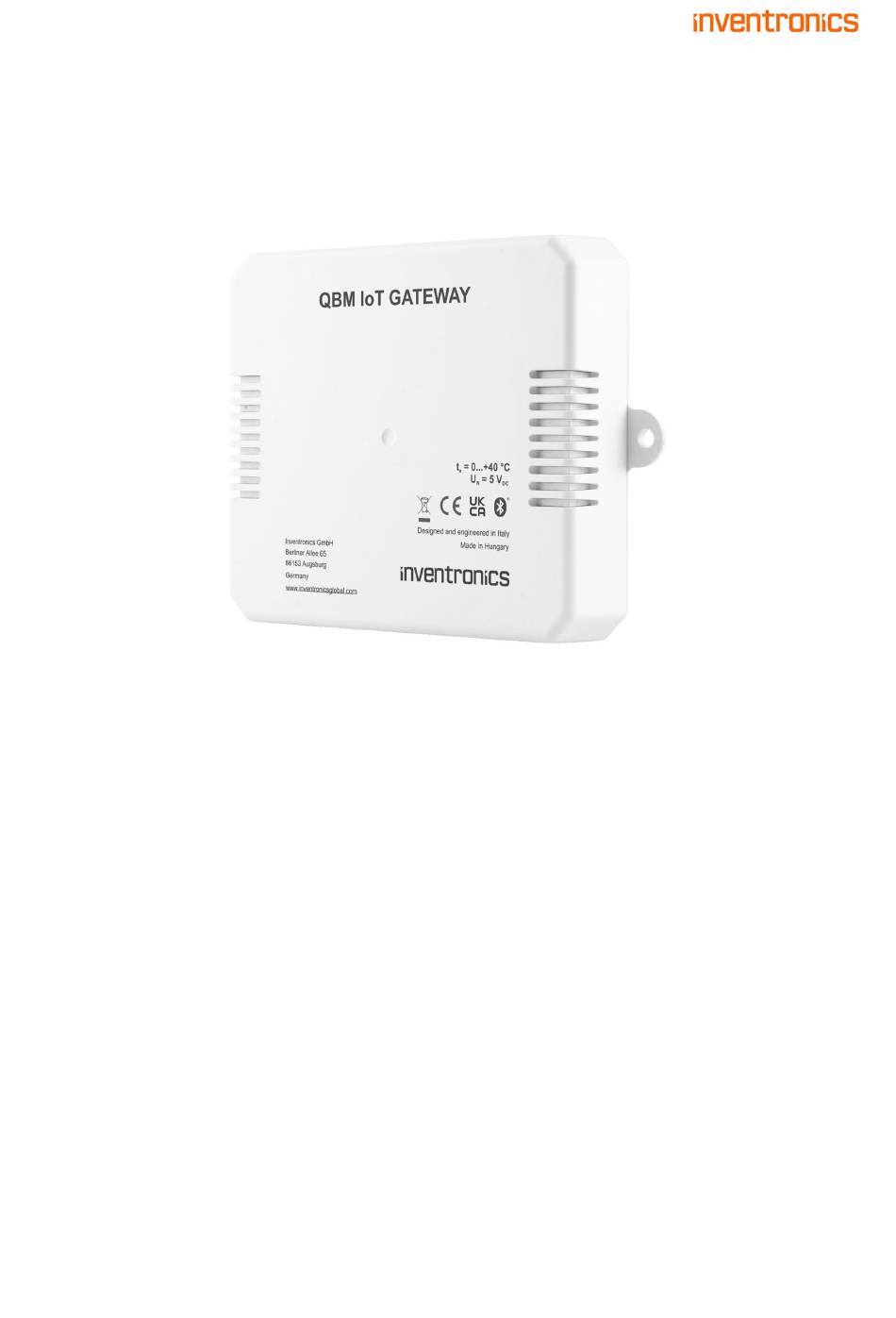

- Page 1 QBM IoT Gateway QBM IoT Gateway Quick installation guide Version 1.0 QBM IoT Gateway - Quick installation guide...
- Page 2 This user manual provides the user with comprehensive instructions and insights into the usage and functionality of the QBM IoT Gateway. Whether you are a lighting professional, an installer, or a system administrator, this guide will assist you in commissioning the QBM IoT Gateway.
- Page 3 To access the web server functionalities the user shall retrieve the IP address assigned to the QBM IoT Gateway Once the QBM IoT Gateway IP address is known, you can type it in the web browser (Edge and Chrome suggested) address bar. The page below shall appear: Version 1.0...
- Page 4 1. IP address of the QBM IoT Gateway. 2. Name of the QBM IoT Gateway. 3. The QBM IoT Gateway is provisioned i.e., it has been added to a Bluetooth mesh network by means of a dedicated mobile app. 4. The QBM IoT Gateway is not commissioned yet i.e., it does not have the information (number of nodes, models implemented, etc.) of the network it belongs to.
- Page 5 After few seconds a message shall appear saying the QBM IoT Gateway is commissioned and the information on the right panel shall update, turning the Commissioning state to Yes. In case of commissioning success, the red LED starts blinking twice 30ms On and then 1s Off.
- Page 6 3.2. Fault If at power-up, the ethernet cable is disconnected or the QBM Gateway is not able to get a valid IP address (e.g., DHCP server not available), both green and red LEDs remain steady on. If the button is pressed while in fault condition, both LEDs switch off, then at each button press both LEDs switch Version 1.0...
- Page 7 Appendix To access the web server functionalities the user shall retrieve the IP address assigned to the QBM IoT Gateway. This can be done in several ways: By accessing the local network router setup page and by checking the list of devices present.
