Summary of Contents for Antarctic Star Explorer Series

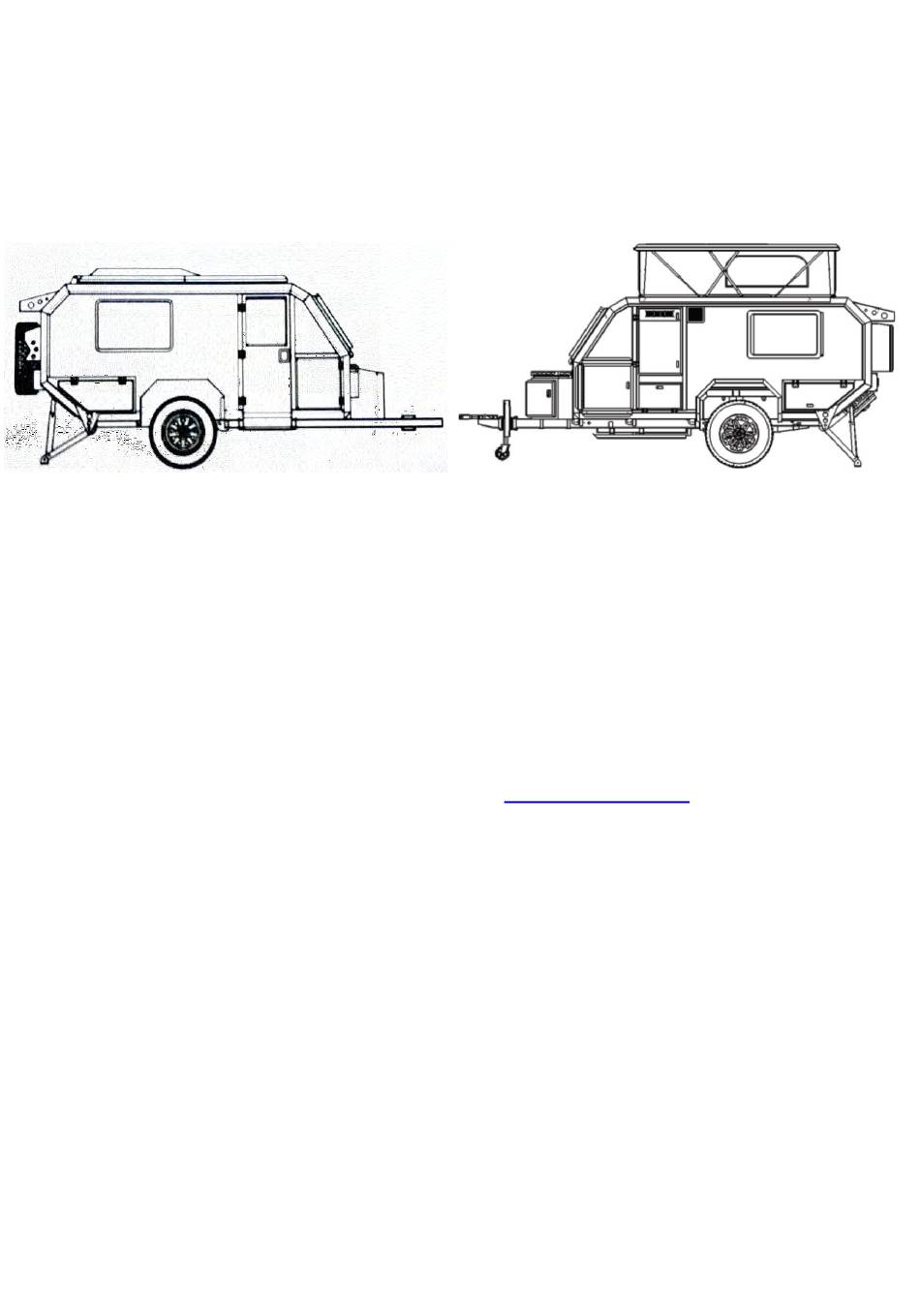

- Page 1 Antarctic Star RV Equipment Co., Ltd Factory address: Workshop 2, Jinhe Industrial Park, No. 169, Junyue Road, East Industrial Zone, Xindu District, Chengdu, Sichuan After-sales service E-mail: njstarrv@gmail.com...
-
Page 2: Table Of Contents
Table of contents Introduction to the manual ................................3 Prompt message ....................................4 Pay attention to ..................................4 Dangerous articles .................................. 4 Children /animals ..................................4 Personal security ..................................5 Vehicle identification ................................5 RV precautions before use ..............................6 Park deployment and towing .............................. -
Page 3: Introduction To The Manual
This manual applies to the Antarctic Star Explorer series trailer Thank you for choosing the Antarctic Star RV, I hope our products and services can bring you a new pleasure! Please read the well carefully for this manual and the other accompanying instructions, so that you can know more about your vehicle and make it more comfortable, safe and economical to use. -
Page 4: Prompt Message
Prompt message Warning The mark says that to avoid causing personal harm to you or others, the relevant steps must be followed strictly and accurately. Pay attention to Pay attention to This indicates that the relevant steps must be followed to avoid damage to the equipment in your vehicle, Or have an impact on your health. -
Page 5: Personal Security
To prevent accidents or casualties caused by children / animals, do not leave children / animals in unattended vehicles to avoid causing accidents and casualties. Personal security *The 220V circuit system is equipped with a leakage inspection and protection device, and the vehicle has a carbon monoxide alarm device to reduce the possibility of personal injury caused by an accident (or accident prevention). -
Page 6: Rv Precautions Before Use
RV precautions before use Notes for daily use Before using the RV, make sure that the RV is free of any technical problems, and get familiar with this manual in advance. 1. In case of any fault endangering the vehicle safety and personal safety, it shall be immediately submitted to a professional for repair. -
Page 7: Door Lock And Lock
3. Put down your back legs and support them well; Door lock and lock The double lock must be locked at the same time, otherwise an accident may occur. Pay attention to The trailer adopts the double-lock check structure, and only the double-lock is in the open position at the same time;... -
Page 8: Roof Tent Is Deployed And Recycled
Roof tent is deployed and recycled 1. Release the lock outside the roof tent; 2. Push the roof tent handle up and spread out the tent; 3. The process of recycling the roof tent is the opposite of unfolding. 4. When recycling, the tents should be pulled around to prevent the tent from being caught. When the tent is wet or dirty, please clean and dry and recycle, otherwise it may cause irreversible damage to the tent. -
Page 9: Front Tent Spread And Recycling
Front tent spread and recycling 1. Release the lock outside the front tent, pull open the front expansion board, and support the mounting leg to the chassis support seat; 2. Release the front tent front account; 3. Pull the front account fixing belt to the chassis trailer head and secure it well; 4. -
Page 10: Windows Open And Closed
Windows open and closed 1. Release the window fixing handle and slowly push the window out, hear the "click" sound to secure the window position. Continue to push the window outward and then release, and the window closes. The trailer window has three gear open degree, please choose according to the actual needs. 2. -
Page 11: Rv Drag And Hang Operation
RV drag and hang operation Pay attention to The tent must be closed before towing, and make sure that the doors and Windows are locked. Refer to "Parking Unrolling and Recycling" and "Parking Process" for details. 1. The front trailer and the trailer near, the front car trailer hook and trailer head staggered close; 2. -
Page 12: External Market Power Interface
External market power interface Before moving the vehicle, pull out the external main interface and cover the cover. Live operation is not prohibited; otherwise it may lead to accidents or casualties. Pay attention to Check whether the external power connection meets the standard (220VAC, 50Hz), and the access does not meet the requirements The power supply will cause damage to the vehicle equipment. -
Page 13: Add Water And Drainage
Add water and drainage The water outlet is located in the left front of the body. Open the water outlet with the key and add water. Pay attention to After the water operation, please lock the water cover to prevent foreign bodies from entering the contaminated tank. -
Page 14: External Gas Port
External gas port The kitchen and cabinet equipped with this trailer should be connected with gas. External gas must be connected to ensure that there is no gas leakage; otherwise the gas leakage may be caused Fire, suffocation, poisoning and other accidents, heavy casualties. This schematic diagram shows a case of connecting a Chinese liquefied gas tank using a three-way interface;... -
Page 15: Vehicle Electrical Appliances
Vehicle electrical appliances Pay attention to Before using the vehicle, power on the RV if required For high-power equipment such as vehicle air conditioning, please access mains (see "External mains interface") The RV comes with a 12V150AH battery to power the RV electrical equipment when parking. The RV roof is equipped with solar panels that will automatically charge the battery when the light is right. -
Page 16: Control Switch
Control switch Figure shows: 1.12V total electric switch, after closing, the whole trailer 12V electrical appliances except for the refrigerator cannot be used; charging will not be affected; 2. Water supply pump switch, open after the whole trailer water supply, it is recommended to close when not in use;... -
Page 17: Distribution Box
Distribution box There is 220V high voltage in the distribution box, and non-professional electricians are prohibited to operate live, so as to avoid electric shock casualties. Figure: 1. Leakage protection and air switch; 2. 7 electrical safety devices; 3. Expand line interfaces; 4. -
Page 18: Battery Warehouse
Battery warehouse Figure: 1.3000w inverter, charge & inverting 2. Shore power plug 3. Solar charger 4. Main power switch 5. Household electricity plug 6. Cigarette lighter 1pcs 7. Battery location Lighting system Figure: 1. Headlight light and toilet lamp switch; 2. -
Page 19: Fuel Oil Heater For Use
Fuel oil heater for use It is forbidden to use fuel warm air in closed Spaces (such as the garage), otherwise the waste gas may not be discharged in time due to poor air circulation, resulting in casualties. Knob key: Press lightly to turn on and off, turn left and right to adjust the gear, the lowest gear is 1st gear, the highest gear is 5th gear, and it comes with plateau mode, no additional operation is required;... -
Page 20: Troubleshooting
Fault Troubleshooting Solution code The power supply Check that the supply voltage is higher than the heater voltage is too high specified voltage 1. Check whether the power supply voltage is lower than the The power supply specified voltage of the heater voltage is too low 2. - Page 21 1. Check whether the fuel oil is waxy, whether the oil road is leaking or blocked, and whether the housing sensor is Flame extinguished compacted failure 2. Check the fuel tank for any oil 3. Check the oil pump for a match (22ml) 1.
-
Page 22: Portable Toilet For Use
Portable toilet for use Usage method: 1. Make the partition handle before use to make the partition open; 2. Put the toilet, use to maintain the water plate handle is open state; 3. Use the back lid on the toilet seat, pressure pump several times to clean the dirt; 4. -
Page 23: Instructions For Use Of The Upgraded Thedford Toilet
Instructions for use of the upgraded Thedford toilet Usage process and precautions: 1. The head of the toilet can rotate freely, suitable for users of different body shapes; 2. After opening the toilet lid, turn on the switch on the lower left side of the toilet at the same time, and pull it outward to open the toilet compartment for normal use;... -
Page 24: Air Conditioning Use
Air conditioning use 1.On / off: Press this key to turn on / off the machine. The default mode when the machine is turned on is cooling and low wind speed. 2.Mode: After the machine is turned on, press this key to select cooling, dehumidification, air supply and automatic mode. -
Page 25: Sofa Bed Spread Out
Sofa bed spread out The following figure put flat tea table, place good support board, mobile sofa cushion can be spread into a bed. Expansion and recycling of the cabinets Open the cabinet door, hold the sliding rail lock key to pull out the cabinet; please pay attention to the water supply pipe, to prevent clip injury;... -
Page 26: Fault Diagnosis
Fault diagnosis hitch fault analysis The whole trailer has no 1. Check whether the main electric switch of the battery electricity compartment is open and whether the fuse is intact; 2. Check whether the distribution box switch is open and whether the fuse is intact 1. - Page 27 At every 6,000 intervals Time (month) Every 6 months apart Inside the trailer Indoor lights, outdoor lights, water pump control √ system, exhaust system, indicator light, alarm lamp, charging system and other systems are normal. Check the inverter, open the inverter and check for √...
- Page 28 Check whether the battery status, battery pile head, 12V and 220V tie iron points are corroded √ and firm. Tighten the handling if necessary. Test the carbon monoxide alarm, the gas ignition √ switch. √ Is the door lock key complete. Check the tight gas pipe joint, and conduct the gas √...
- Page 29 Check whether the fuel line is leaking, secure, and √ the exhaust pipe angle is normal. Check whether the clean water box is damaged, √ leaking and fixed. Check whether the water pump to toilet, kitchen √ table and other water pipes and joints whether leakage, whether fixed is reliable, etc.
-
Page 30: Wiring Diagram Of 7-Core Wire
Special tips Dear user! In order to take better care of your vehicle, it is recommended that you regularly on the chassis. Tighten the bolts and nuts at the connections. Maintain hub shaft connections every 2000 or 5000 km. Wiring diagram of 7-core wire: Black - ground wire Red - brake light Yellow - turn right... -
Page 31: Wiring Diagram Of 13-Core Wire
Wiring diagram of 13-core wire: PIN1 Left turn signal PIN2 Fog light PIN3 1-8P circuit PIN4 Right turn signal PIN5 Right driving light PIN6 Brake light PIN7 Left driving light PIN8 Reversing light PIN9 Battery positive(+12V) PIN10 Ignition switch (+12V) PIN11 10P circuit PIN12... -
Page 32: Different Hitch Connection Example For Your Camper
Different hitch connection example for your camper NJSTAR RV OFFICIAL VIDEO ON YOUTUBE GUIDE CONNECTION: https://youtu.be/mHYa5R3Q448?list=PLJ_hJc68DthzlDvSqievthJmAa3UmLfUm 1.TREG 2000kg poly block hitch connection 2.ZD036 hitch connection... - Page 33 3.The Australian standard hitch 4.The US ball hitch...
