Summary of Contents for Domo NANOIP-114150

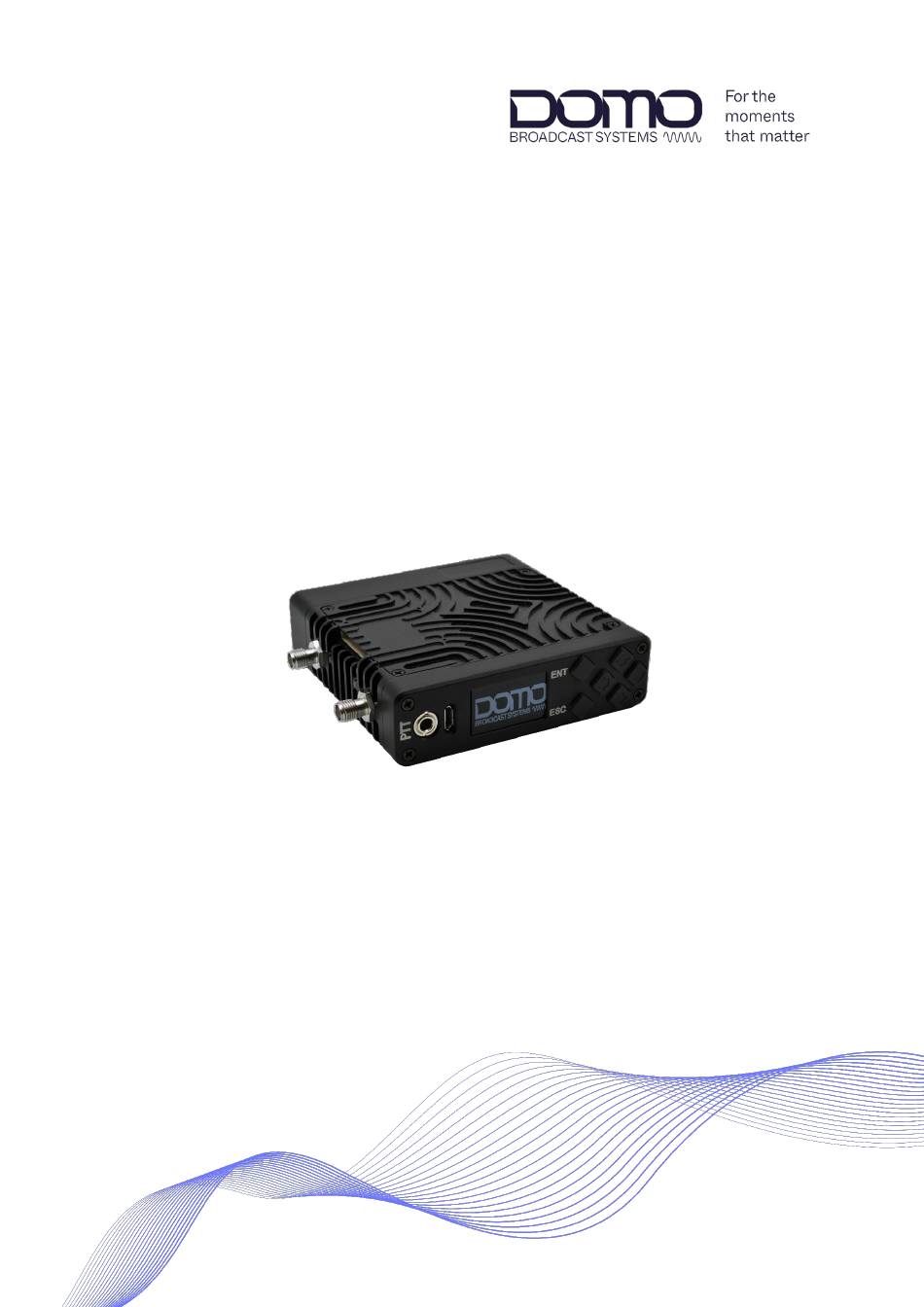

- Page 1 Resource Identifier: 100340 Revision 1.0 DBS Nano IP Setup Guide Commercial in Confidence...
- Page 2 Copyright This document contains information that is proprietary to Domo Tactical Communications (DTC) Limited trading as Domo Broadcast Systems (DBS). Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC. © 2024 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
- Page 3 7. Appendix A: Reference Material ........... 7-28 How to Configure a PC IP Address ................... 7-28 8. Appendix B: After Sales Support ..........8-29 Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 0-2 Commercial in Confidence...
- Page 4 Repairs and Alterations ..................... 9-31 Caring for your Equipment ....................9-31 Charging ..........................9-31 Working with Lithium Batteries ..................9-32 Cleaning ..........................9-32 Storage ..........................9-32 Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 0-3 Commercial in Confidence...

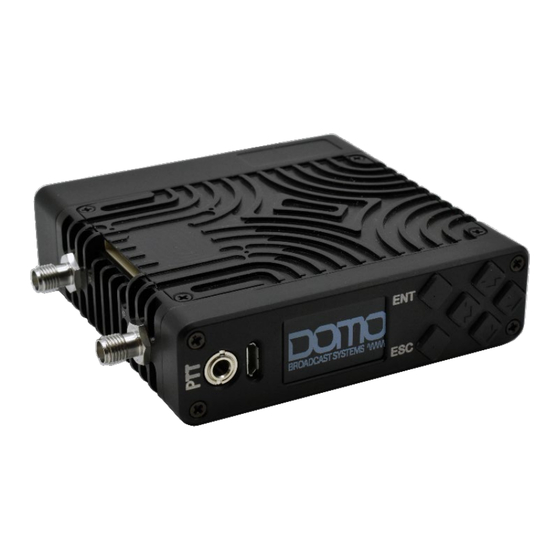

- Page 5 Domo Broadcast Systems' high efficiency IP Mesh module covering 1.2GHz to 5.5GHz in banded options. Domo Broadcast Systems' Nano IP is a revolutionary IP Mesh module that ensures you bring IP control to your broadcast workflow, making your job easier while ensuring high quality performance.
- Page 6 Description CA3463 4-way Lemo (m) to D-tap (m) cable CA4432 7-way Lemo (m) to RJ45 plug and 9-way D-sub, Ethernet and RS-232 serial cable Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 2-2 Commercial in Confidence...
- Page 7 Product functions are enabled by licenses which can be verified in the web user interface. Part Number Description Base license included IP Mesh radio includes: (Multi Mesh, SIMO/MIMO Mesh, Ultra-Low Bandwidth, Streaming, Recording, Telemetry, DES Encryption) Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 2-3 Commercial in Confidence...
- Page 8 E3372h-153 (pid 1f01) E3372-320 Wi-Fi dongles that are currently supported: TP-LINK AC600 TP-LINK AC1200 TP-LINK AC1300 TP-LINK TL-WN823N Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-4 Commercial in Confidence...
- Page 9 An internal cooling fan helps ensure the device does not overheat. WARNING: Do not obstruct the fan vents. Damage to internal components may occur due to excessive heat. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-5 Commercial in Confidence...
- Page 10 OLED control buttons Please see Section 5.3 for OLED button functions. Mounting Panel Three 1/4” BSW/UNC screw threads are provided for mounting options. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-6 Commercial in Confidence...
- Page 11 Audio Headset Mating connector 3.5mm TRRS jack Function AUDIO OUT L Ring 1 AUDIO OUT R Ring 2 Sleeve MIC IN (1.9V mic. power) Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-7 Commercial in Confidence...
- Page 12 Revision: 1.0 DBS Nano IP Setup Guide 3.6.4 Mating connector 3.5mm TRRS jack Function PTT OUT Ring 1 Ring 2 Sleeve Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-8 Commercial in Confidence...
- Page 13 Ethernet to a laptop/PC for initial setup using a web user interface (WUI), any of the Ethernet ports can be used. CAUTION: It is critical to attach suitable antennas before applying RF power and good practice when configuring a radio. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-9 Commercial in Confidence...
- Page 14 Browse to the location where you wish to install the software or leave the Destination Folder at default (recommended) and click Install. On completion Close the installer. A Node Finder icon will appear on your desktop. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-10 Commercial in Confidence...
- Page 15 Note: If the device is not connected to a network with a DHCP server, the IP address may appear as 0.0.0.0. Right click on the Nano IP to configure network settings, if required. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-11 Commercial in Confidence...
- Page 16 On successful reset, the web browser application will be unlocked to the default password (Eastwood). Note: You can only enter an incorrect reset code five times before a new token will need to be generated. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-12 Commercial in Confidence...
- Page 17 HTTP (port 80). Alternatively, just enter the IP address into a web browser. When authentication is required, the user name should be left blank, and the password is Eastwood. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-13...
- Page 18 HTTP interface. For full details please refer to the IP Mesh Radio JSON Integration Guide. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-14...
- Page 19 OLED displays empty values, please connect the Nano IP to a PC and check the following settings. Go to the Presets>Data>RS485 page and configure the settings as highlighted below. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-15 Commercial in Confidence...
- Page 20 Use the up/down buttons to change the value of digits when editing. These will also adjust the volume for units with headsets. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-16 Commercial in Confidence...
- Page 21 Input voltage status. Red indicates low voltage. Press the right button to scroll through the status pages. Press the left button to show additional detail, not applicable for all pages. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-17 Commercial in Confidence...
- Page 22 Edits the fixed IP address. Netmask Edits the network mask. Gateway Edits the gateway for access to another network. Displays the MAC address of the network interface. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-18 Commercial in Confidence...
- Page 23 Start scan process or Exit to cancel. If the scan detects a frequency with the correct Mesh parameters, the unit will join the network. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-19 Commercial in Confidence...
- Page 24 Mesh PA Lin High linearity optimises the COFDM waveform and Low linearity is for power critical applications. Change Pin Change the Advanced menu PIN number. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-20 Commercial in Confidence...
- Page 25 The OLED Bluetooth feature is for future development. Sub-menu Notes WC Version The currently installed OLED software version. Note: See Section 5.5 for upgrade details. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-21 Commercial in Confidence...
- Page 26 Open the Mega Firmware Updater application. Refresh the Com ports and select the port for the OLED USB device, then select Firmware Update from the Pico menu. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-22 Commercial in Confidence...
- Page 27 The device will reboot when the upgrade is complete. The software version can be verified in the OLED Unit>WC Version page. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-23 Commercial in Confidence...
- Page 28 The illustration below shows a basic system scenario. Key parameters can be configured pre- deployment via the WUI using the connections shown in Section 4.2, or using OLED control. Example Nano IP System Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-24 Commercial in Confidence...
- Page 29 Mesh network. The Node ID, however, is unique and will help identify the device along with the Unit Name. Set Enable Transmitter to Yes to apply RF power on; the Nano IP should join the Mesh network. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-25 Commercial in Confidence...
- Page 30 The Mesh network can be verified in the Dashboard page in several places. The Mesh node count can be seen in the information bar at the top of the display from any page. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-26...
- Page 31 Note: The corresponding OLED menu is Config>SOL8SDR>Intercom. Select the Headset Type for the audio headset you are using. Headset volume can be adjusted from the OLED up/down control buttons. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-27 Commercial in Confidence...
- Page 32 The IP address range given in this example is a good one to use if you are unsure. Figure 7-1 How to configure a PC IP address Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 7-28...
- Page 33 Mark the Box and Send to DBS Clearly mark the outside of the shipping box with the RMA number and send the box using your normal process. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 8-29 Commercial in Confidence...
- Page 34 Observe caution when locating the device at height, for example on a mast. Ensure the unit is well secured to prevent it falling and injuring personnel. Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 9-30 Commercial in Confidence...
- Page 35 Do not charge units and/or battery packs on wet or unstable surfaces Do not leave units and/or batteries in chargers for excessive periods Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 9-31 Commercial in Confidence...
- Page 36 Store units and battery packs in a cool, dry area at room temperature (22°C) Do not store units and/or batteries in active chargers Copyright © 2024 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 9-32 Commercial in Confidence...
