Summary of Contents for Net Playz SOCCER REBOUNDER NOS039

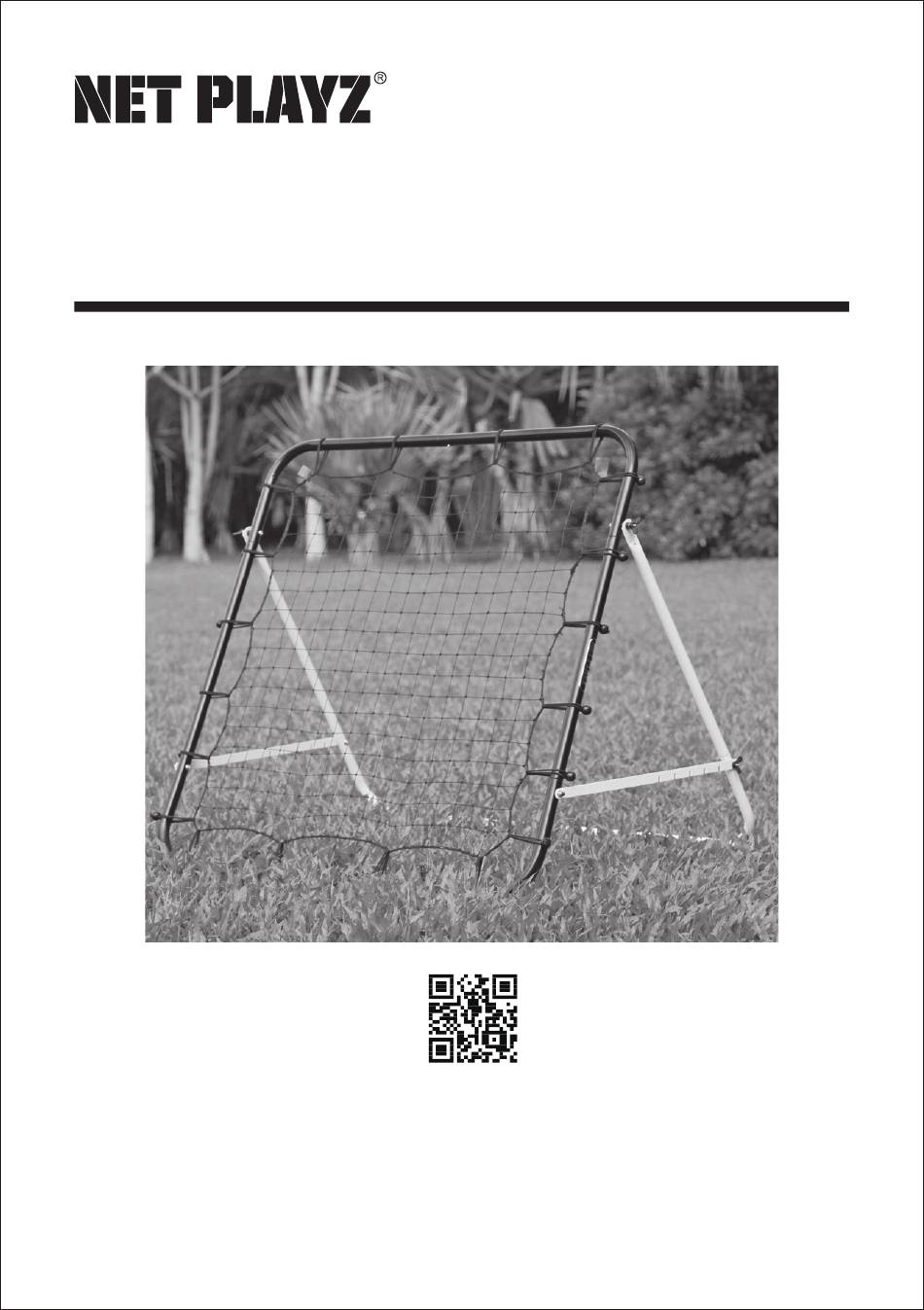

- Page 1 MODEL: NOS039 NAME: SOCCER REBOUNDER Angles Adjustable Net ASSEMBLY INSTRUCTIONS SCAN FOR ASSEMBLY VIDEO WE ENCOURAGE OUR CUSTOMERS TO LEAVE REVIEWS OF OUR PRODUCTS ON THE RETAILER'S WEBSITE WHERE THE PRODUCT WAS PURCHASED.
- Page 2 ASSEMBLY TIPS: 1 - Please read the instructions carefully, and follow all assembly, operation or safety instructions properly in order to avoid damage or injury. 2 - Some figures or drawings may not look exactly like your product. Please read and understand the text before beginning each assembly step.
- Page 3 PARTS LIST For FIG. 1 For FIG. 1 For FIG. 1 For FIG. 1 Tube #1 Tube #2 Tube #3 Tube #4 (2pcs) (2pcs) (2pcs) (2pcs) For FIG. 1 For FIG. 1 For FIG. 2 For FIG. 3 Tube #5 Tube #6 Adaptor Elastic Hook...
- Page 4 ASSEMBLY INSTRUCTIONS FIG.1 COMPONENTS COMPONENTS COMPONENTS FIG.2 COMPONENTS COMPONENTS COMPONENTS...
- Page 5 FIG. 3 COMPONENTS USE 1 ELASTIC BAND TO CONNECT ON THE MIDDLE OF EACH SIDES. X 20 USE 1 ELASTIC BAND TO CONNECT ON THE MIDDLE OF EACH SIDES. USE 2 ELASTIC BANDS TO CONNECT EACH CORNERS. How to Adjust Angles? FIG.
- Page 6 How to Fold it ? FIG. 5 1. Slightly loosen the #11 screw, rotating adaptors as picture shows, tighten the #11 screw. 2. Slightly loosen the #10 screw, inserting adaptors into #10 screw as picture shows, tighten the #10 screw. FIG.
Need help?
Do you have a question about the SOCCER REBOUNDER NOS039 and is the answer not in the manual?
Questions and answers

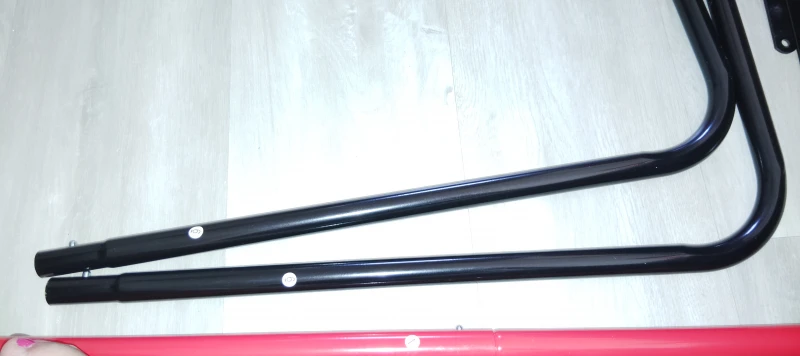

I have no number 5 only 2 6 what can I do now?
If you only have parts numbered 2 and 6 for the Net Playz Soccer Rebounder NOS039, you are missing many required components for assembly. You should check the parts list in the manual to identify all missing parts. Then, contact customer service at service@trigreatusa.com for assistance or to request the missing parts.
