- Page 1 L10 Video Recorder User Manual HSN2MPPDL10 4k WiFi Body Camera Please refer to the manual carefully before use; The manual is for reference only and the specific operation is subject to the actual product...

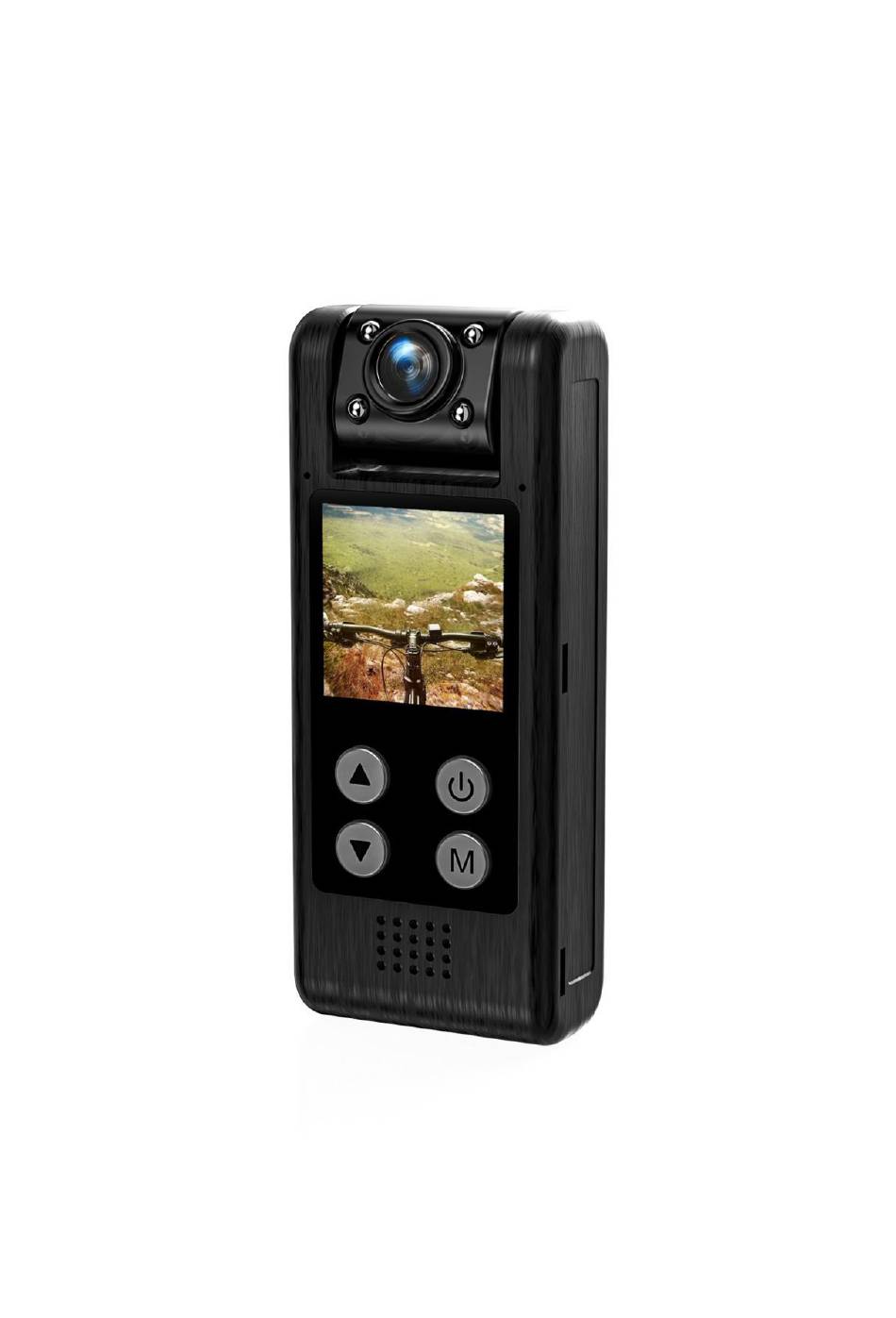

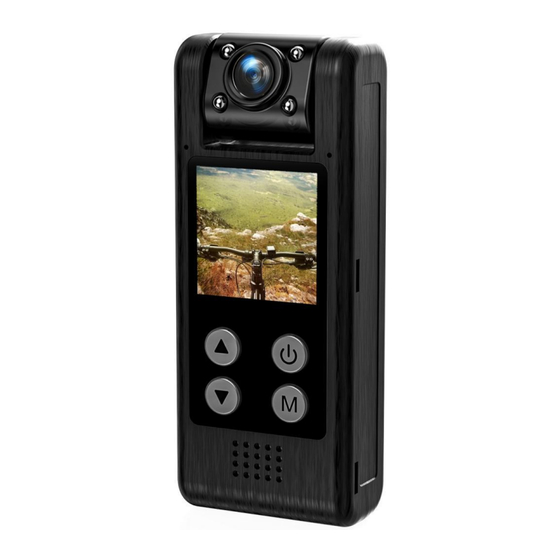

- Page 2 一、 Product Structure 1）Screen 2）Horn 3）Len 4）Clip 5）Power 6）Up 7）Down 8）Menu 9）TYPE-C Port 10）Reset 11）TF Card Port 二、Button Description 1.Power 1) Long press to turn on/off the recorder; 2）Short press to start/stop recording; 3) Confirm function in Menu and Playback mode;...
- Page 3 2.Menu 1) Short press to enter/exit Menu; 2）Long press to Playback mode. 3.Up 1) Upward selection key; 2）Short press to photo and screenshot in Video mode; 4.Down 1) Downward selection key; 2) Long press to turn ON/OFF WiFi; 3) Long press to turn on the infrared white light in Video/Photo mode; 5.Reset When the machine has a splash screen, abnormal dead, etc., please use needle pin and insert to the hole to reset it.
- Page 4 2. Playback Mode 1）Short press Up/Down to switch videos ; 2）Short press Power button to stop/continue playing videos. 3) Short press Menu to exit playback Mode. 四、Product Parameters and Specifications Machine Type Lens Rotatable lens, 180 degrees TFT Display Color Display(240*240) Video Resolution 3840*2160、2560*1440、1920x1080P Video File Format...
- Page 5 Working Humidity Operating Temperature -25°/+75° Power Supply USB voltage 5V, current ≥ 1A battery 3.7V (battery soldering is not removable) Standby Current Shutdown≤5.61MA Low Power Alert 3.53V Power Consumption BAT 3.7V/≤ 233mA /≤0.86W USB5V/≤ 549mA(Open IR + Video)/≤2.74W Memory Card TF card, supports up to 256G Language English, Simplified Chinese, Traditional Chinese,...
