EED QI-POWER-485-100 Quick Start Manual

POWER /ENERGY METER SINGLE PHASE
AC/DC TRMS - RS485 MODBUS
POWER SUPPLY
9...30 Vdc, protection against polarity reversal
and overtemperature.
ABSORPTION
< 1,3 W
MEASUREMENT
Irms, Vrms, Watt, Var, Va, Vpk, Ipk, Frequency,
Cosφ , Energy bidirectional, THD, min e MAX of each measure
TYPE OF MEASURE
TRMS or DC
RANGE
Current: up to 100 A AC/DC
Voltage: up to 800 VAC or 1000 VDC
ACCURACY
@25 °C up to 200 Hz
Voltage, Current, Active Power: < 0,5% F.S.
Frequency: ± 0,1 Hz
Energy: ± 1% of reading
Vpeak, Ipeak: ± 5% F.S.
OUTPUT
RS485 Modbus RTU
BAUDRATE
From 1.200 a 115.200 baud
CREST FACTOR
1,5 (on current measurement)
WORKING FREQUENCY
SAMPLING RATE
11k samples per second
INPUT IMPEDENCE
1 Mohm ± 1%
STANDARDS CE
EN61000-6-4/2006 + A1 2011;
EN64000-6-2/2005; EN61010-1/2010
OVERVOLTAGE CATEGORY
Cat II up to 1000V
INSULATION
3 kV on bare wire for Current measure.
4 kV for Voltage measure (reinforced insulation to power supply and
serial output)
PROTECTION INDEX
IP20
TEMPERATURE COEFFICIENT
WORKING TEMPERATURE
STORAGE TEMPERATURE
HUMIDITY
10...90% not condensing
ALTITUDE
Up to 2000 m s.l.m.
DIMENSIONS
46,1 x 63 x 26,4 mm (terminal excluded)
TERMINALS
Removable terminals 3,5 mm, n°1 of 4 poles, n°2 of
2 poles
WEIGHT
80 g
FILLING
Epoxy resin
BOX MATERIAL
PBT, grey
LED
N°1 yellow, power on fixed, data communication blinking
DIP-SWITCH
2 poles
MOUNTING
Screw predisposition for vertical/horizontal mounting, DIN rail clips
(included) for vertical/horizontal mounting.
LEGEND OF SYMBOL ONTO PAD PRINTING
It indicates that all the accessible parts of the object, are
separated from the live parts by double or reinforced insulation
High Voltage warning
General warning
Insertion of the cable
Rev. 02
QUALITY ELECTRONIC DESIGN
DC or 1...400 Hz
Cat III up to 600V;
< 200 ppm/°C
-15...+65°C
-40°C... +85°C
QI-POWER-485-100

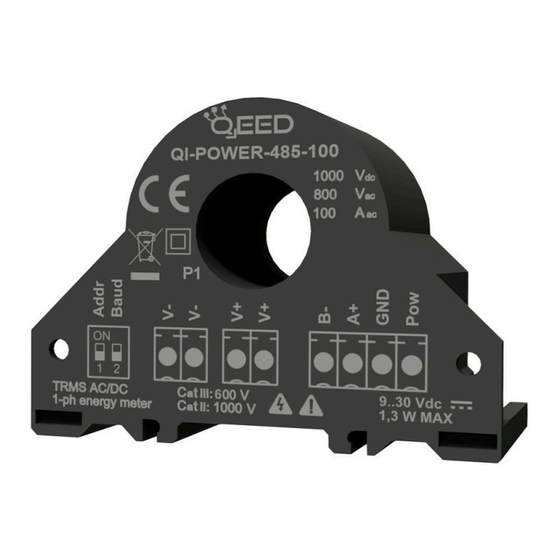

The QI-POWER-485-100 is a Single-phase Power
meter able to measure the TRMS AC/DC Current
and Voltage. On the RS485 Modbus are available:
Irms, Vrms, Wa�, Var, Va, Vpk, Ipk, Frequency,
Cosφ, Energy bidirec�onal and THD. The device is
fully configurable by RS485, DIN rail moun�ng,
4kV galvanic isola�on for Voltage input.
The images/schemes proposed are to be considered indicative and not binding
CHARACTERISTICS:
• TRMS Measure, THD available;
• 0,5 % Accuracy;
• RS485 Modbus integrated;
• Bidirec�onal energy metering;
• DIN rail moun�ng in both side;
• OEM'S design, low cost;
• Fully configurable by free interface so�ware
FACILE QI-POWER-485;
• Bootloader for upda�ng firmware;
• Available measure register: MSW first LSW
first or hundredths.
1
.
